Sold out
ASF280A
Model: ASF280A – Dahua Access Control Accessories
Details: Dahua Single Door Magnetic Lock
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
ASF280A Overview

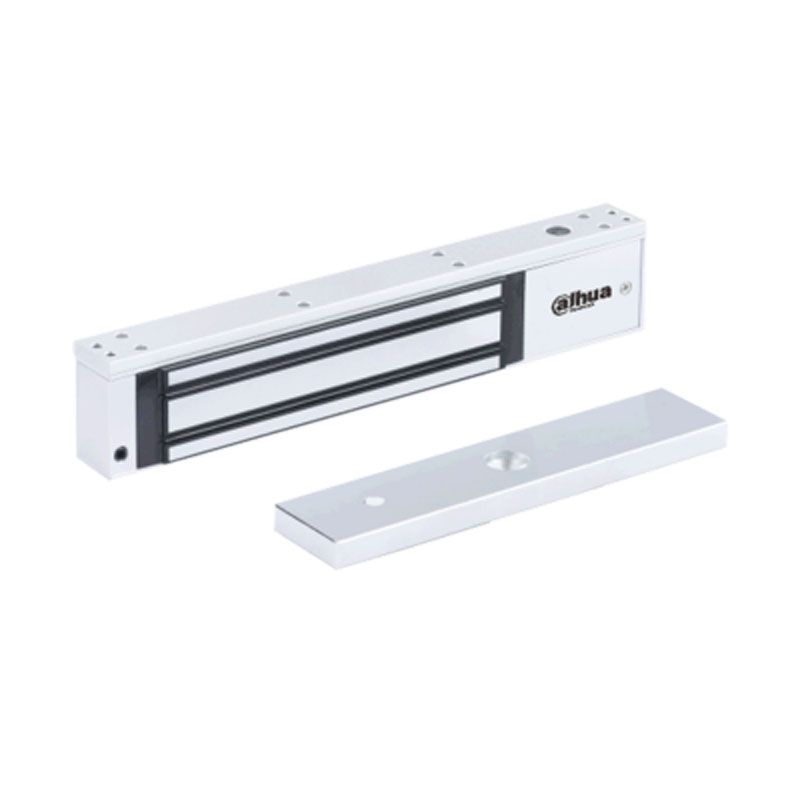

Quick Specs Figure 1 shows the appearance of ASF280A.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | ASF280A |
| Product Type | Single Door Magnetic Lock |
| Holding Force | 280 kg (617 lbs) |
| Operating Voltage | 12V/24V DC |
| Current Draw | 500mA/12V DC, 250mA/24V DC |
| Dimensions | 250 x 42 x 25 mm |
| Door Type | Single Door |
| Installation | Surface mount |
| Material | Anodized aluminum |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 0% – 90% (non-condensing) |
| Certifications | CE, FCC |
| Lock Indicator | Built-in LED |
| Magnet Finish | Zinc plated |
| Armature Plate Dimensions | 180 x 38 x 12 mm |
| Mounting Hardware | Included |
| Warranty | 3 years |
| Suitable For | Office doors, home doors |
| Available Accessories | Bracket for inward opening doors |
