Sold out
ASF500B
Model: ASF500B – Dahua Access Control Accessories
Details: Dahua Double Door Magnetic Lock
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
ASF500B Overview

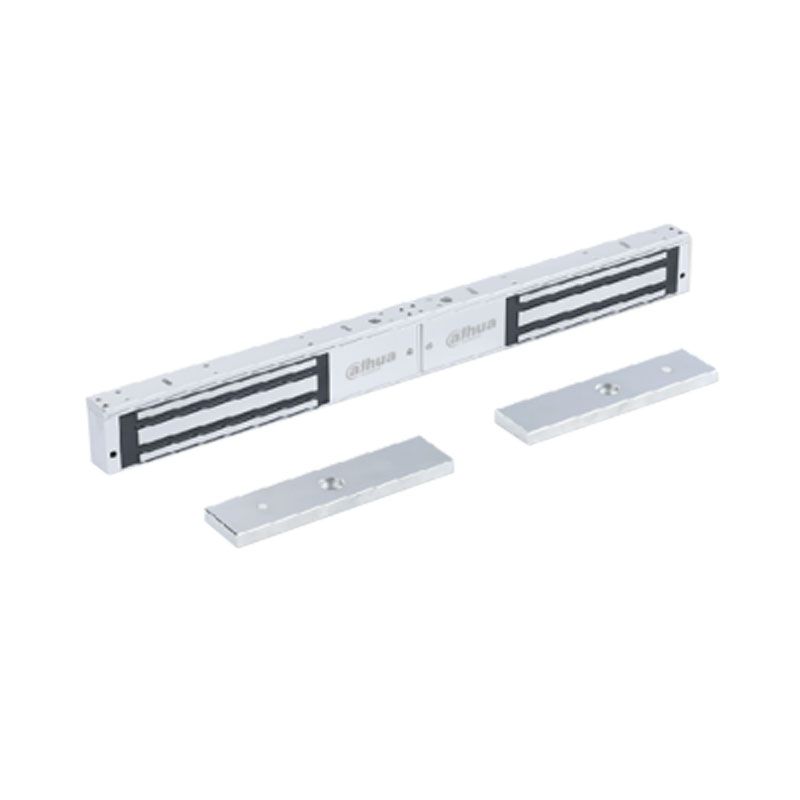

Quick Specs Figure 1 shows the appearance of ASF500B.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | ASF500B |
| Product Type | Double Door Magnetic Lock |
| Holding Force | 500kg x 2 |
| Voltage | 12/24V DC |
| Current Draw | 480mA at 12V, 240mA at 24V |
| Lock Type | Electromagnetic |
| Installation Type | Surface Mounted |
| Material | Stainless Steel |
| Operating Temperature | -10 to +55°C |
| Operating Humidity | 0 to 90% (non-condensing) |
| LED Indicator | Yes |
| Signal Output | NO/NC/COM |
| Dimensions | 500 x 48 x 25 mm |
| Finishes for Shell | Anodized aluminum |
| Anti-Residual Magnetism | Yes |
| Certificate | CE, RoHS |
| Mounting Hardware | Included |
| Warranty | 3 years |
| Application | Indoor |
Get more information
Do you have any question about the ASF500B?
Contact us now via Live Chat or sales@metafinitivetech.com
