Sold out
ASF802
Model: ASF802 – Dahua Access Control Accessories
Details: Dahua Electric Drop bolt
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
ASF802 Overview

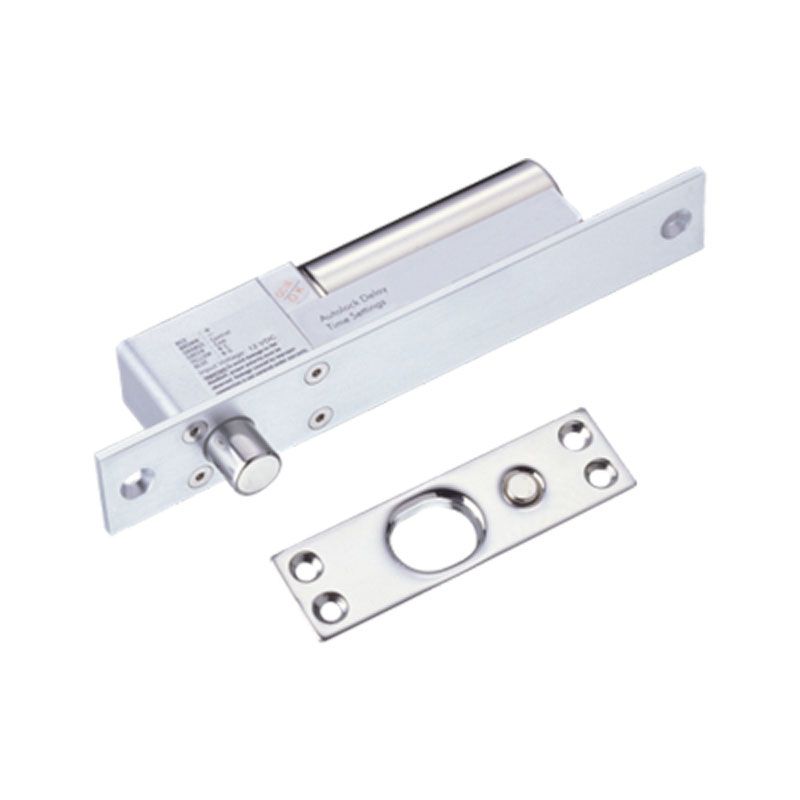

Quick Specs Figure 1 shows the appearance of ASF802.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | ASF802 |
| Type | Electric Drop Bolt |
| Operating Voltage | 12VDC/24VDC |
| Current Draw | 900mA and 450mA (Initial and Holding) |
| Lock Size | 204 x 42 x 41 mm |
| Bolt Strength | 7,000N (700Kg) |
| Surface Temperature | °+20°C |
| Door Type | Wooden Door, Glass Door, Metal Door |
| Humidity | 0~90% (non-condensing) |
| Indicator | LED Indicator |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 0% to 95% |
| Function | Fail-safe Mode |
| Material | Stainless Steel |
| Finish | Brushed |
| Certification | CE |
| Warranty | 2 years |
| Relay Output | NC/NO/COM |
| Cylinder Diameter | 16 mm |
| Release Time | 0, 3, or 6 seconds |
