ASF808
Model: ASF808 – Dahua Access Control Accessories
Details: Dahua Electric Drop bolt
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
ASF808 Overview

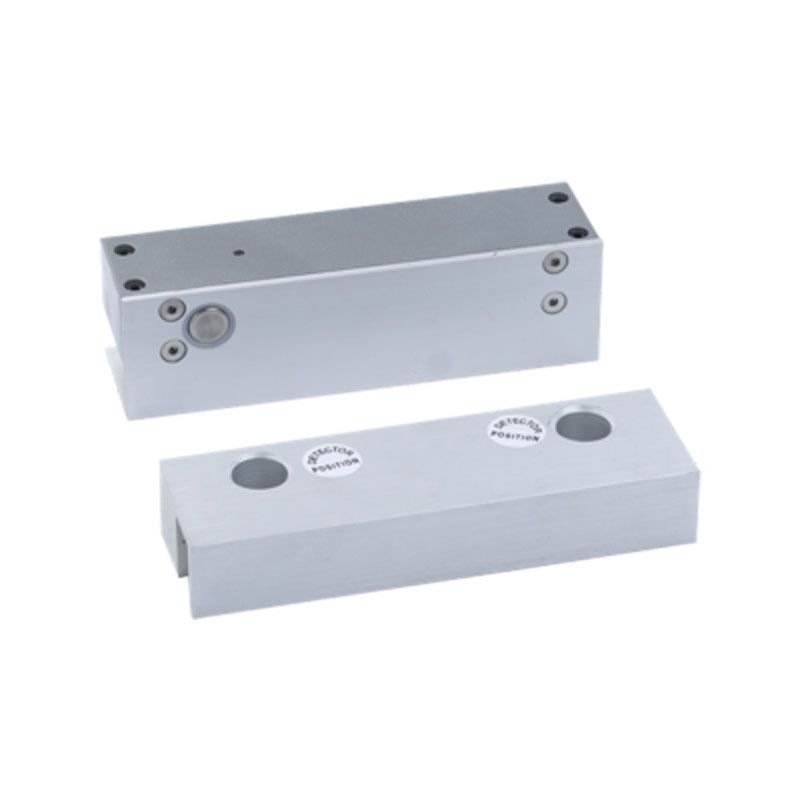

Quick Specs Figure 1 shows the appearance of ASF808.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | ASF808 |
| Type | Electric Drop bolt |
| Material | Stainless Steel |
| Voltage | 12V DC |
| Current | 900mA (start), 180mA (standby) |
| Lock Size | 250mm x 50mm x 37mm |
| Bolt Diameter | 16mm |
| Holding Force | 1500kg |
| Signal Output | NO/NC/COM |
| Locking Mode | Power-to-Lock |
| Operation Temperature | -10°C to +55°C |
| Operation Humidity | 0-95% (non-condensing) |
| Suitable For | Wooden Door, Metal Door, PVC Door |
| Endurance | 500,000 Cycles |
| Backup Battery | Optional |
| Response Time | 1 Second |
| LED Indicator | Yes |
| Surface Temp | Low Temperature |
| Fire Resistance | Optional Fire Rated |
| Opening Time | ° 1 second |
| Warranty | 2 Years |
