ASF905
Model: ASF905 – Dahua Access Control Accessories
Details: Dahua Stainless Steel Exit Button
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
ASF905 Overview

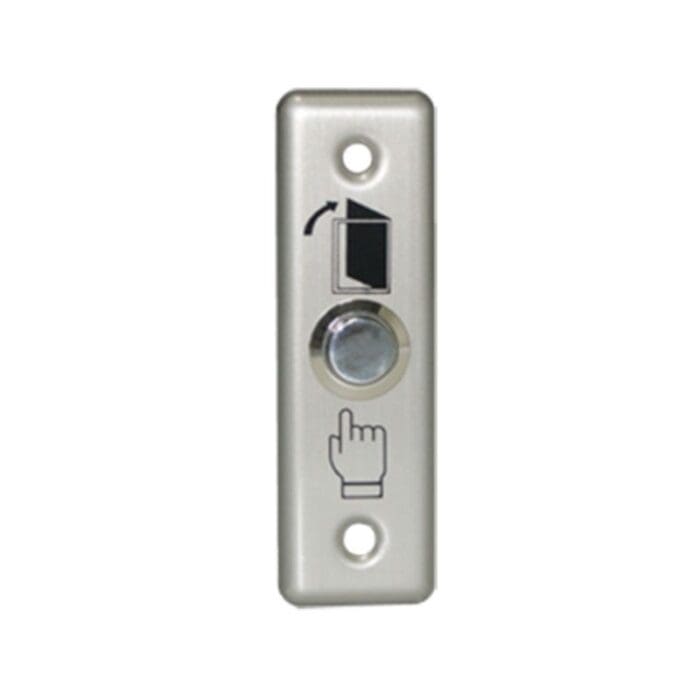

Quick Specs Figure 1 shows the appearance of ASF905.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | ASF905 |
| Type | Stainless Steel Exit Button |
| Material | Stainless Steel |
| Color | Silver |
| Installation Method | Surface Mount |
| Dimensions | 86 x 86 x 20 mm |
| Voltage Range | DC 12V |
| Current | 3A |
| Operating Temperature | -20°C to 55°C |
| Operating Humidity | 0 to 95% RH |
| Panel Design | Elegant Brushed Finish |
| Switching Contact | NO/NC/COM |
| Cover Plate | 1.5 mm Thick Stainless Steel |
| Button Type | Mechanical Press Button |
| LED Indicator | No |
| Certification | CE, FCC, RoHS |
| Application | Access Control Systems |
| Warranty | 2 Years |
| Ingress Protection | IP65 |
| Connectivity | Wired |
