ASF921
Model: ASF921 – Dahua Access Control Accessories
Details: Dahua Emergency Break Glass Button
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
ASF921 Overview

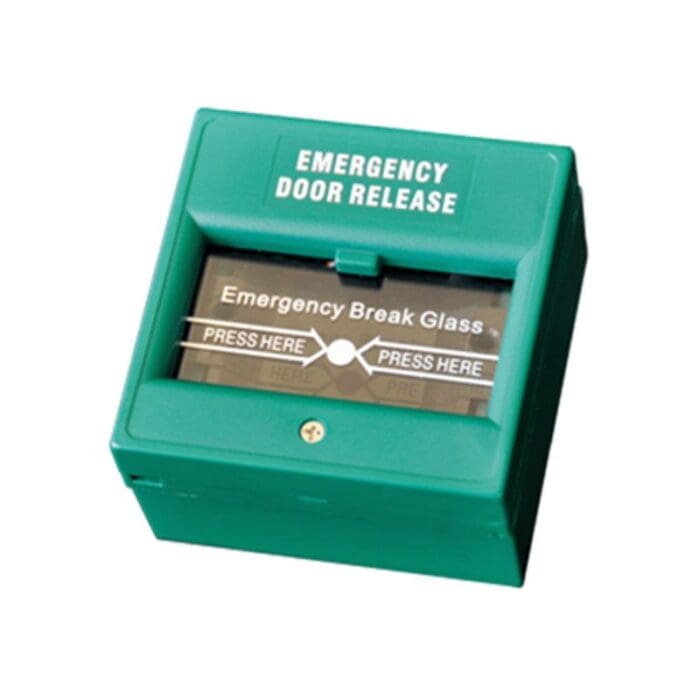

Quick Specs Figure 1 shows the appearance of ASF921.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | ASF921 |
| Product Type | Emergency Break Glass Button |
| Material | Finnish Blue Steel with Toughened Glass |
| Color | Red |
| Dimensions | 86mm x 86mm x 50mm |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 0% to 95% (non-condensing) |
| Installation | Surface/Flush Mounting |
| Activation Method | Break Glass |
| Output | 1 Normally Open (NO) and 1 Normally Closed (NC) Contact |
| Initial Contact Resistance | 100m° max |
| Rated Current | 3A at 120V AC |
| Certification | EN54-11 |
| Lifespan | 100,000 operations |
| Environmental Standard | RoHS Compliant |
| Mounting Holes | 4 |
| Included Accessories | Screws, Installation Manual |
| Warranty | 2 Years |
