ASI1201A
Model: ASI1201A – Dahua Access Control Standalone
Details: Dahua RFID Standalone
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
ASI1201A Overview

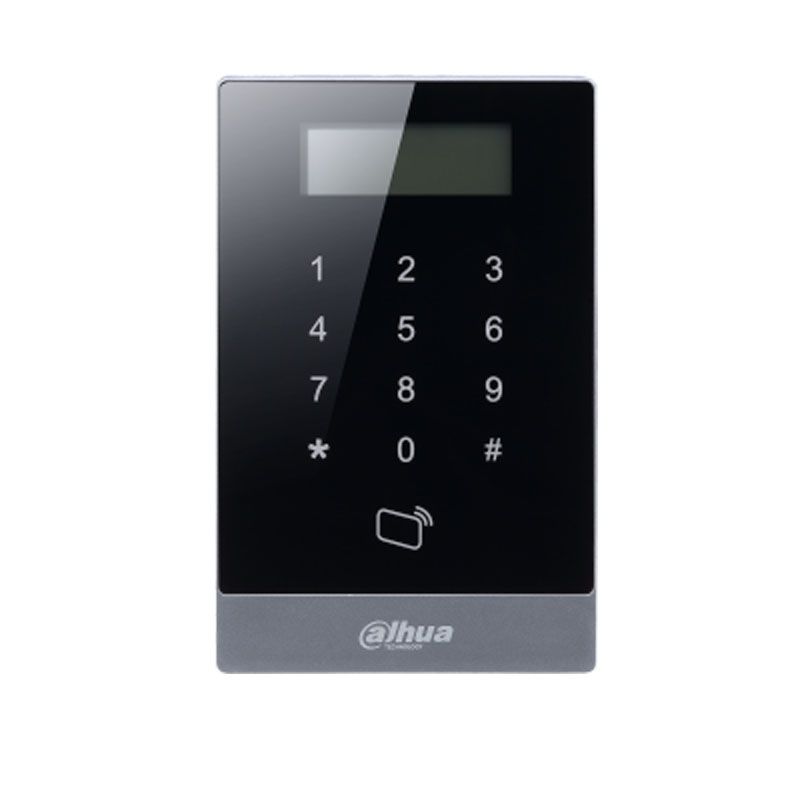

Quick Specs Figure 1 shows the appearance of ASI1201A.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | ASI1201A |
| Type | RFID Standalone |
| Card capacity | 3,000 |
| Operating voltage | DC 12V |
| Current draw | <120mA |
| Communication interface | RS485 |
| Reader format | Wiegand |
| Reading distance | Up to 6 cm |
| Operating temperature | -30??C to +60??C |
| Operating humidity | 10% to 90% RH |
| Protection | IP65 |
| Card type | EM, Mifare |
| Audio alert | Buzzer |
| Installation mode | Surface mount |
| User management | Standalone or PC software |
| LED indicator | Yes |
| Anti-tamper switch | Yes |
| Firmware upgrade | Via RS485 |
| RS485 baud rate | 9600, 19200, 38400, 57600, 115200 |
