ASI7214Y-V3
Model: ASI7214Y-V3 – Dahua Access Control Standalone
Details: Dahua Face Recognition Access Controller
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
ASI7214Y-V3 Overview

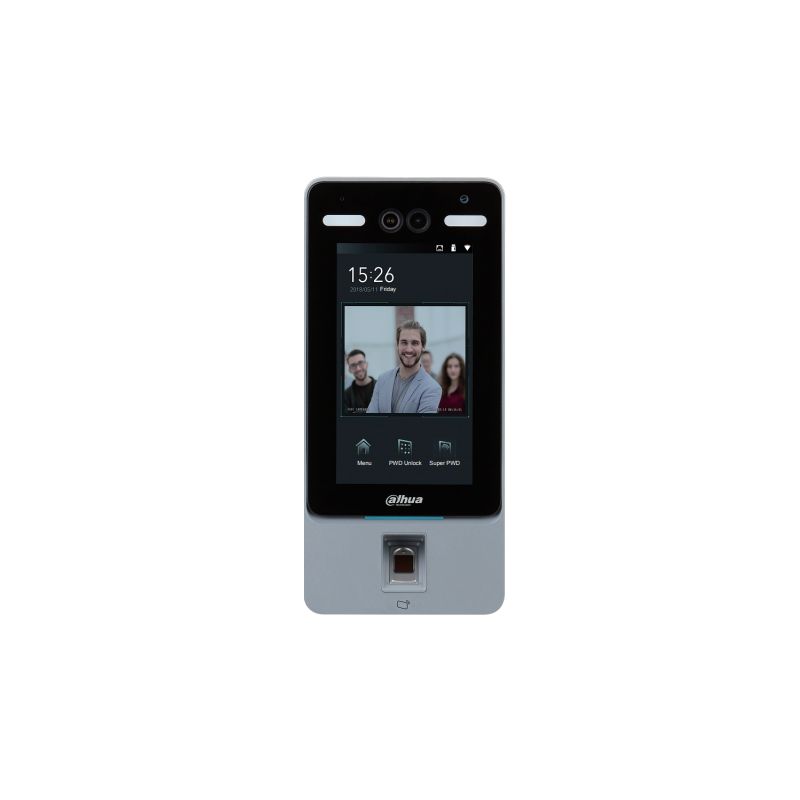

Quick Specs Figure 1 shows the appearance of ASI7214Y-V3.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | ASI7214Y-V3 |
| Product Type | Face Recognition Access Controller |
| Face Recognition Capability | Yes |
| Display | 7-inch LCD touch screen |
| Resolution | 1024 x 600 pixels |
| Camera | 2 MP dual-lens |
| WDR | 120db |
| Card Reader Type | EM/Mifare |
| Fingerprint Sensor | Capacitive |
| Communication | TCP/IP, RS-485 |
| Interface | 1 ° RJ45 10/100 Mbps, 1 ° RS-485, 1 ° Wiegand input, 1 ° Alarm input |
| Power Supply | 12V DC |
| Power Consumption | Max. 15W |
| Working Temperature | -10°C to +55°C |
| Working Humidity | 0% to 90% (non-condensing) |
| Installation Method | Wall Mounting or Surface Mounting |
| Dimensions | 300 mm ° 130 mm ° 40 mm |
| Protective Level | IP65 |
| Operating System | Linux |
