ASI8223Y-A-V3
Model: ASI8223Y-A-V3 – Dahua Access Control Standalone
Details: Dahua Face Recognition Terminal
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
ASI8223Y-A-V3 Overview

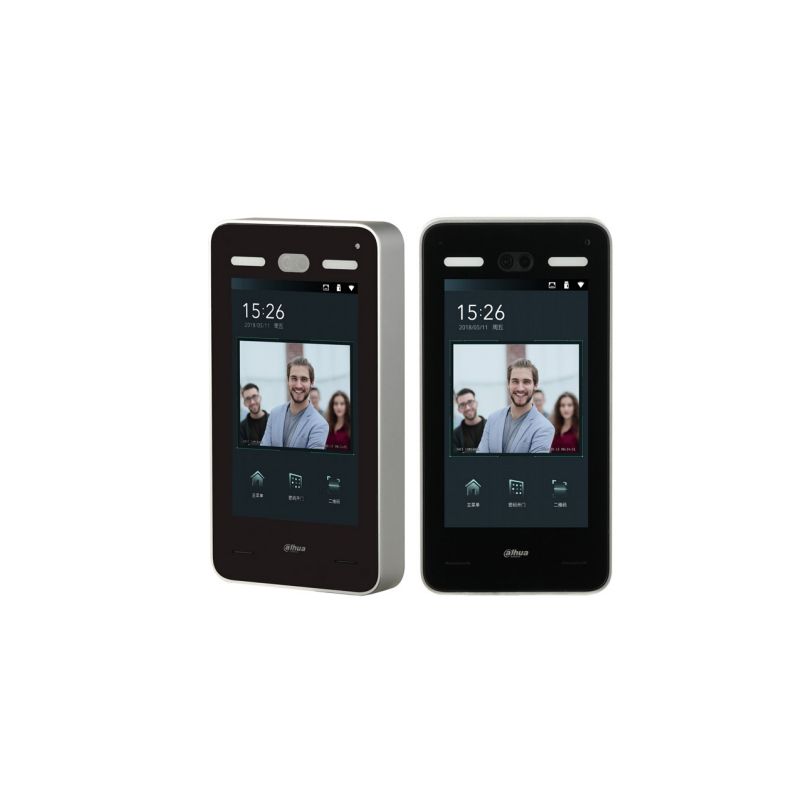

Quick Specs Figure 1 shows the appearance of ASI8223Y-A-V3.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Product Name | ASI8223Y-A-V3 |
| Product Type | Face Recognition Terminal |
| Display Size | 7-inch LCD |
| Resolution | 1024 x 600 |
| Camera Type | Dual Camera |
| RF Card | IC Card |
| Verification Method | Face, Password, Card |
| Face Capacity | 10,000 faces |
| Card Capacity | 10,000 cards |
| Log Capacity | 150,000 logs |
| Communication | TCP/IP |
| Interface | Wiegand, RS485, USB, Relay Output |
| Power Supply | 12V DC |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 0% to 95% (Non-condensing) |
| Dimension | 227mm x 124mm x 24.5mm |
| Installation | Wall Mount |
| Ingress Protection | IP54 |
| Compatibility | Dahua Software Platforms |
| Face Recognition Distance | 0.3m to 1.5m |
