ASR-9001
Model: ASR-9001 Cisco ASR 9001 Chassis
Details: Cisco ASR 9001 Chassis ASR-9001 ASR 9001 Chassis
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
ASR-9001 Overview

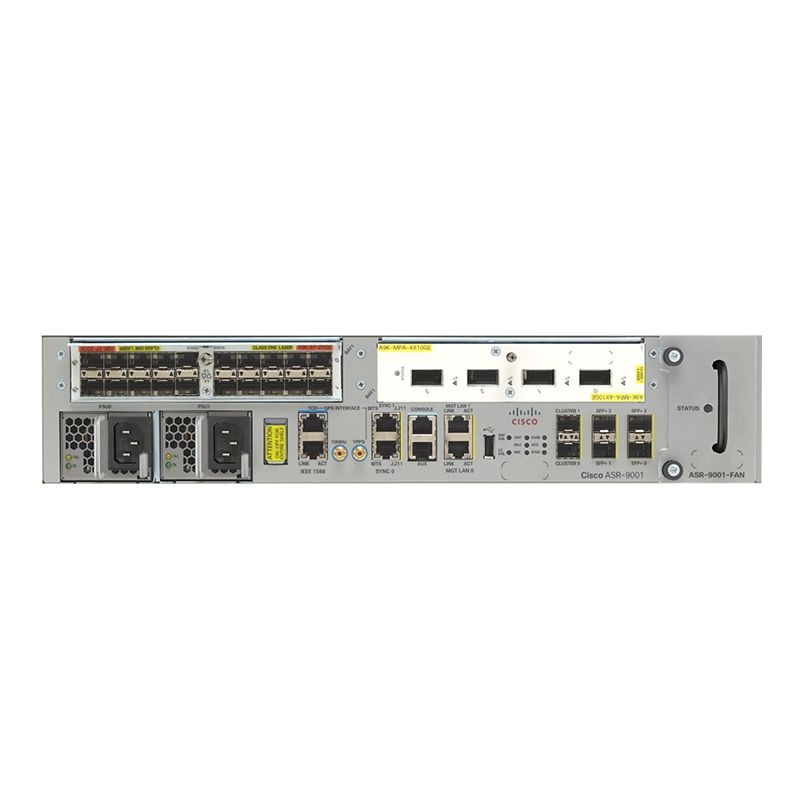

Quick Specs Figure 1 shows the appearance of ASR-9001.
Table 1 shows the Quick Specs.
| Type | Cisco ASR 9001 Chassis |
| Integrated interfaces | 4 x 10 GE SFP+ |
| Modular port adapters | 20 x 1 GE, 2 x 10 GE, 4 x 10 GE, 1 x 40 GE |
| Redundancy | Power supply redundancy |
| Power supply part number | ● A9K-750W-AC● A9K-750W-DC |
| Physical specifications | ● Height: 3.472 inches (88.2 mm)● Width: 17.42 inches (442 mm)● Depth: 18.5 inches (470 mm)● Weight of chassis: 30.2032 lbs (13.7 kg)● Weight of chassis with two MPAs: 36.37623 lbs (16.5 kg) |
| Power inputs | ● Worldwide ranging AC (90-265V; 50-60 Hz)● Worldwide ranging DC (-40V to -72V) |
| Power consumption | 425 watts typical, 525 watts maximum |
| Environmental conditions | ● Operating temperature: 32 to 104°F (0 to 40°C)● Storage temperature: -40 to 167°F (-40 to 75°C)● Relative humidity: 10 to 90%, noncondensing● Regulatory compliance |
| Operating temperature (nominal) | 41 to 104ºF (5 to 40ºC) |
| Operating temperature(short-term) | 23 to 131ºF (-5 to 55ºC) |
| Operating humidity (nominal) (relative humidity) | 10 to 85% |
| Operating humidity(short-term) | 5 to 90%Note: Not to exceed 0.024 kg water or dry air |
| Storage temperature | -40 to 158ºF (-40 to 70ºC) |
| Storage (relative humidity) | 5 to 95%Note: Not to exceed 0.024 kg water or dry air |
| Operating altitude | -1800m |
| Air flow | Side to side |
| Network Equipment Building Standards (NEBS) | Cisco ASR 9001 is designed to meet:● SR-3580: NEBS Criteria Levels (Level 3)● GR-1089-CORE: NEBS EMC and Safety● GR-63-CORE: NEBS Physical Protection● VZ.TPR.9205: Verizon TEEER |
| ETSI standards | Cisco ASR 9001 is designed to meet (qualification in progress):● EN300 386: Telecommunications Network Equipment (EMC)● ETSI 300 019 Storage Class 1.1● ETSI 300 019 Transportation Class 2.3● ETSI 300 019 Stationary Use Class 3.1● EN55022: Information Technology Equipment (Emissions)● EN55024: Information Technology Equipment (Immunity)● EN50082-1/EN-61000-6-1: Generic Immunity Standard |
| EMC standards | Cisco ASR 9001 is designed to meet:● FCC Class A● ICES 003 Class A● AS/NZS 3548 Class A● CISPR 22 (EN55022) Class A● VCCI Class A● BSMI Class A● IEC/EN 61000-3-2: Power Line Harmonics● IEC/EN 61000-3-3: Voltage Fluctuations and Flicker● EN 50121-4: Railway EMC |
| Immunity | Cisco ASR 9001 is designed to meet:● IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)● IEC/EN-61000-4-3: Radiated Immunity (10V/m)● IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)● IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)● IEC/EN-61000-4-5: Signal Ports (1kV)● IEC/EN-61000-4-5: Surge DC Port (1kV)● IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)● IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)● IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations● EN 50121-4: Railway EMC |
| Safety | Cisco ASR 9001 is designed to meet:● UL/CSA/IEC/EN 60950-1● IEC/EN 60825 Laser Safety● ACA TS001● AS/NZS 60950● FDA: Code of Federal Regulations Laser Safety |
