ASR-9006-AC-V2
Model: ASR-9006-AC-V2 Cisco Router ASR 9006
Details: Cisco ASR 9006 System ASR-9006-AC-V2 ASR 9006 AC Chassis with PEM Version 2
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ASR-9006-AC-V2 Overview

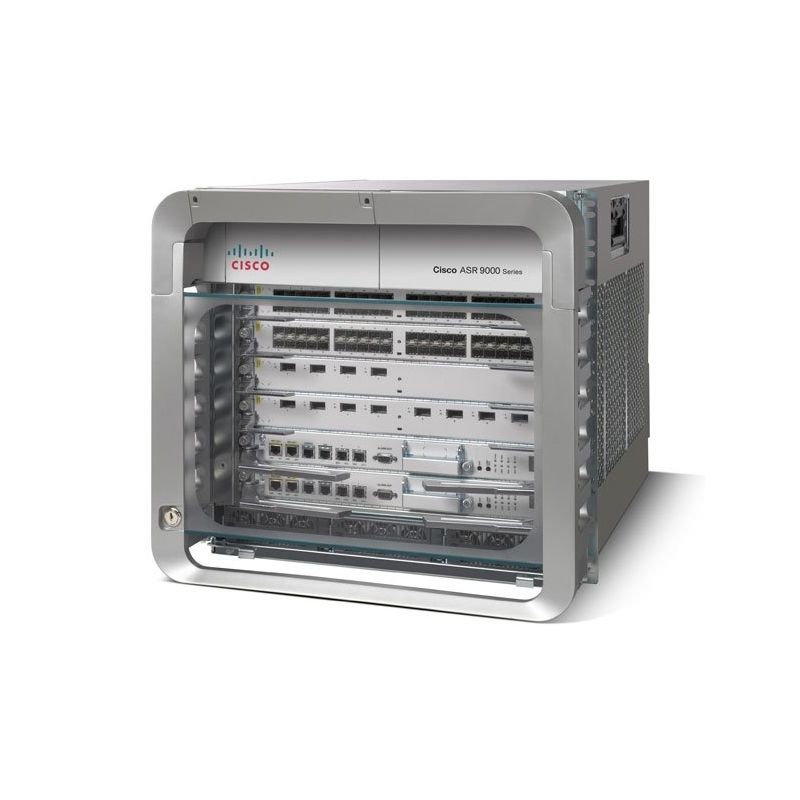

Quick Specs Figure 1 shows the appearance of ASR-9006-AC-V2.
Table 1 shows the Quick Specs.
| Description | Cisco ASR 9006 System ASR-9006-AC-V2 ASR 9006 AC Chassis with PEM Version 2 |
| Physical specifications | Height: 17.50 in. (444.5 mm) (10 RU)Width: 17.38 in. (441.45 mm)Depth:● With doors: 29.05 in. (737.9 mm)● Without doors: 29.05 in. (737.9 mm)Weight:● 89.55 lb (40.7 kg) (chassis with PEM)150 lb (65.91 kg) (fully loaded, excluding line cards and power modules) – RSP, two v2 FAN trays, PEMs |
| Slot orientation | Horizontal |
| Cisco ASR 9000 Series RSP | Dual redundant RSPs with integrated fabric in 2 slots |
| Cisco ASR 9000 Series line cards | 4 line-card slots |
| “Commons” components | 2 RSPs2 fan trays1 PEM (either DC or AC)1 fan filter |
| Reliability and availability | Fabric redundancyFan redundancyFeed redundancyPower-supply redundancyRSP redundancySoftware redundancy |
| Rack mounting | 19-in. default21- and 23-in. adapters availableNote: Minimum 17.75-in. opening between posts is needed for proper operation |
| Cabinet mounting | YesNote: Doors not recommended in enclosed cabinets |
| Wall mounting | No |
| Airflow | Right-to-back, Front-to-back with baffle |
| Fabric | One per RSP:● Active/active nonblocking operation mode in dual-RSP redundant configuration● Fully redundant in dual-RSP redundant configuration● Built-in service-intelligence and traffic-prioritization capability |
| Thermal | Two fan trays:● 6 high-efficiency fans per tray● Variable-speed fans for optimal thermal performance● No single point of failure |
| Modularity | Pay-as-you-grow power for future scalability, available in AC and DC.Multiple power module types:● 3 kW AC power module● 2.1 kW DC power moduleNote: Mixing of AC and DC modules is not supported |
| Redundancy | ● AC: N+N redundancy● DC: N+1 redundancy● Power module redundancy● A/B Feed redundancy |
| Power zones | No power zone restrictionsFully load-sharing power infrastructure |
| Power input | Worldwide ranging AC (200-240V; 50-60 Hz; 16A maximum)Worldwide ranging DC (-40 to -72V; 50A nominal, 60A maximum) |
| Power-module airflow | Front-to-back |
| Operating temperature (nominal) | 41 to 104ºF (5 to 40ºC) |
| Operating temperature (short-term) | ASR 9006: 23 to 131ºF (-5 to 55ºC)ASR 9010: 23 to 122ºF (-5 to 50ºC) |
| Operating humidity (nominal) (relative humidity) | 5 to 90% |
| Storage temperature | -40 to 158ºF (-40 to 70ºC) |
| Storage (relative humidity) | 5 to 93% |
| Operating altitude | -60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements) |
| Network Equipment Building Standards (NEBS) | Cisco ASR 9006 is designed to meet:● SR-3580: NEBS Criteria Levels (Level 3)● GR-1089-CORE: NEBS EMC and Safety● GR-63-CORE: NEBS Physical Protection● VZ.TPR.9205: Verizon TEEER |
| ETSI standards | Cisco ASR 9006 is designed to meet:● EN300 386: Telecommunications Network Equipment (EMC)● ETSI 300 019 Storage Class 1.1● ETSI 300 019 Transportation Class 2.3● ETSI 300 019 Stationary Use Class 3.1 |
| EMC standards emission | Cisco ASR 9006 is designed to meet:● FCC Class 47CFR15 A● ICES 003 Class A● AS/NZS CISRP22 Class A● CISPR 22 (EN55022) Class A● VCCI Class A● BSMI Class A● IEC/EN 61000-3-12: Power Line Harmonics● IEC/EN 61000-3-11: Voltage Fluctuations and Flicker● EN55022: Information Technology Equipment (Emissions)● EN 50121-4: Railway EMC |
| EMC standards immunity | Cisco ASR 9006 is designed to meet:● IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)● IEC/EN-61000-4-3: Radiated Immunity (10V/m)● IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)● IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)● IEC/EN-61000-4-5: Signal Surge Ports (1kV)● IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM)● IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)● IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)● IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations● EN55024: Information Technology Equipment (Immunity)● EN50082-1/EN-61000-6-1: Generic Immunity Standard● EN 50121-4: Railway EMC |
| Safety | Cisco ASR 9006 is designed to meet:● UL/CSA/IEC/EN 60950-1● IEC/EN 60825 Laser Safety● ACA TS001● AS/NZS 60950● FDA Code of Federal Regulations Laser Safety |
