Name: ASR-9006-DC
SKU: ASR-9006-DC
Price: 4207.50 USD
Availability: InStock

ASR-9006-DC

$4,207.50

Model: ASR-9006-DC Cisco ASR 9006 Series Chassis
Details: Cisco ASR 9006 ChassisASR-9006-DCASR-9006 DC Chassis
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

ASR-9006-DC Overview

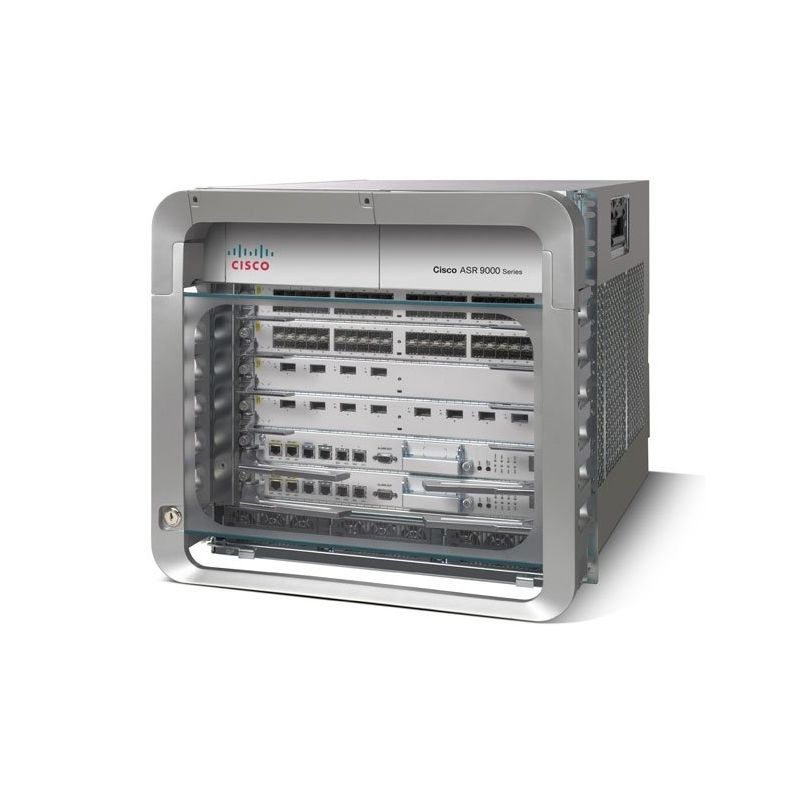

Quick Specs Figure 1 shows the appearance of ASR-9006-DC.

Table 1 shows the Quick Specs.

Description	Cisco ASR 9006 Chassis, ASR-9006-DC, ASR-9006 DC Chassis
Physical specifications	Height: 17.50 in. (444.5 mm) (10 RU)Width: 17.38 in. (441.45 mm)Depth:· With doors: 29.05 in. (737.9 mm)· Without doors: 29.05 in. (737.9 mm)Weight:· 89.55 lb (40.7 kg) (chassis with PEM)150 lb (65.91 kg) (fully loaded, excluding line cards and power modules) – RSP, two v2 FAN trays, PEMs
Slot orientation	Horizontal
Cisco ASR 9000 Series RSP	Dual redundant RSPs with integrated fabric in 2 slots
Cisco ASR 9000 Series line cards	4 line-card slots
“Commons” components	2 RSPs2 fan trays1 PEM (either DC or AC)1 fan filter
Reliability and availability	Fabric redundancyFan redundancyFeed redundancyPower-supply redundancyRSP redundancySoftware redundancy
Rack mounting	19-in. default21- and 23-in. adapters availableNote: Minimum 17.75-in. opening between posts is needed for proper operation
Cabinet mounting	YesNote: Doors not recommended in enclosed cabinets
Wall mounting	No
Airflow	Right-to-back, Front-to-back with baffle
Fabric	One per RSP:· Active/active nonblocking operation mode in dual-RSP redundant configuration· Fully redundant in dual-RSP redundant configuration· Built-in service-intelligence and traffic-prioritization capability
Thermal	Two fan trays:· 6 high-efficiency fans per tray· Variable-speed fans for optimal thermal performance· No single point of failure
Modularity	Pay-as-you-grow power for future scalability, available in AC and DC.Multiple power module types:· 3 kW AC power module· 2.1 kW DC power moduleNote: Mixing of AC and DC modules is not supported
Redundancy	· AC: N+N redundancy· DC: N+1 redundancy· Power module redundancy· A/B Feed redundancy
Power zones	No power zone restrictionsFully load-sharing power infrastructure
Power input	Worldwide ranging AC (200-240V; 50-60 Hz; 16A maximum)Worldwide ranging DC (-40 to -72V; 50A nominal, 60A maximum)
Power-module airflow	Front-to-back
Operating temperature (nominal)	41 to 104ºF (5 to 40ºC)
Operating temperature (short-term)	ASR 9006: 23 to 131ºF (-5 to 55ºC)ASR 9010: 23 to 122ºF (-5 to 50ºC)
Operating humidity (nominal) (relative humidity)	5 to 90%
Storage temperature	-40 to 158ºF (-40 to 70ºC)
Storage (relative humidity)	5 to 93%
Operating altitude	-60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements)
Network Equipment Building Standards (NEBS)	Cisco ASR 9006 is designed to meet:· SR-3580: NEBS Criteria Levels (Level 3)· GR-1089-CORE: NEBS EMC and Safety· GR-63-CORE: NEBS Physical Protection· VZ.TPR.9205: Verizon TEEER
ETSI standards	Cisco ASR 9006 is designed to meet:· EN300 386: Telecommunications Network Equipment (EMC)· ETSI 300 019 Storage Class 1.1· ETSI 300 019 Transportation Class 2.3· ETSI 300 019 Stationary Use Class 3.1
EMC standards emission	Cisco ASR 9006 is designed to meet:· FCC Class 47CFR15 A· ICES 003 Class A· AS/NZS CISRP22 Class A· CISPR 22 (EN55022) Class A· VCCI Class A· BSMI Class A· IEC/EN 61000-3-12: Power Line Harmonics· IEC/EN 61000-3-11: Voltage Fluctuations and Flicker· EN55022: Information Technology Equipment (Emissions)· EN 50121-4: Railway EMC
EMC standards immunity	Cisco ASR 9006 is designed to meet:· IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)· IEC/EN-61000-4-3: Radiated Immunity (10V/m)· IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)· IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)· IEC/EN-61000-4-5: Signal Surge Ports (1kV)· IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM)· IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)· IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)· IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations· EN55024: Information Technology Equipment (Immunity)· EN50082-1/EN-61000-6-1: Generic Immunity Standard· EN 50121-4: Railway EMC
Safety	Cisco ASR 9006 is designed to meet:· UL/CSA/IEC/EN 60950-1· IEC/EN 60825 Laser Safety· ACA TS001· AS/NZS 60950· FDA Code of Federal Regulations Laser Safety
