ASR-903

Original price was: $2,022.00.Current price is: $1,920.90.

Model: ASR-903 Cisco ASR 903 Chassis
Details: Cisco ASR 903 Chassis ASR-903 ASR 903 Series Router Chassis
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: ASR-903 Category:
Description

ASR-903 Overview

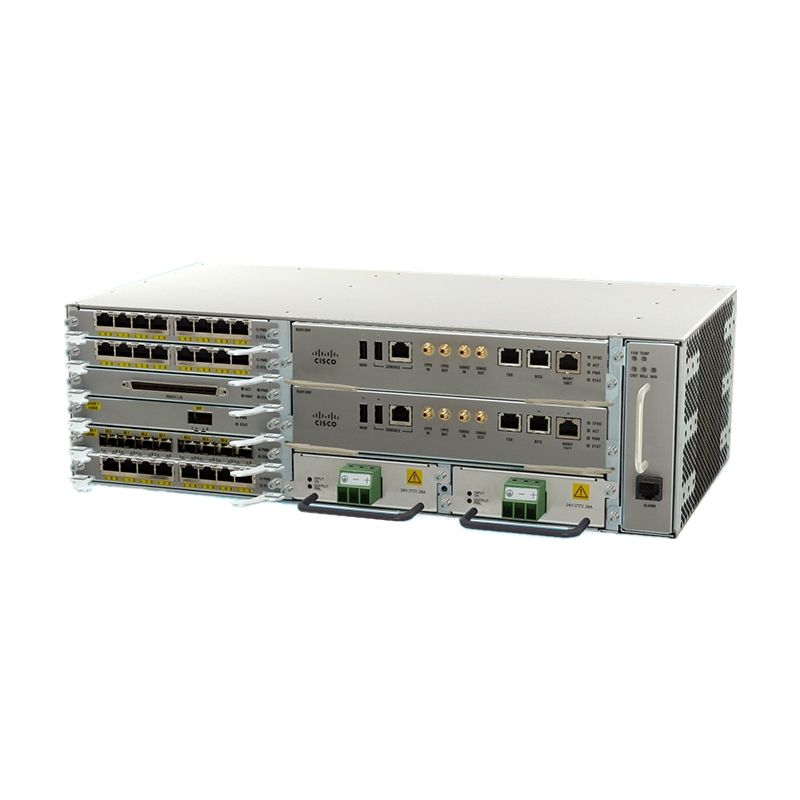

Quick Specs Figure 1 shows the appearance of ASR-903.

Table 1 shows the Quick Specs.

Physical specifications Height: 5.22 in. (132.6 mm) – 3RUWidth: 17.44 in. (443 mm)Depth: 9.22 in. (234.2 mm)Weight:●  34.17 lb (15.5 kg) with two RSPs, two DC power supplies, and loaded with a typical combination of interface module cards● 11.2 lb (5.1 kg) for an empty chassis●  38 lb shipment weight
Rack mounts ETSI rack mount kit19 in. rack mount kit23 in. rack mount kit
Power supplies Up to 2 power supplies (AC or DC)Modules operate in load-share modeSystem can operate on a single power supply and supports mixing of one AC and one DC power supplies in a single chassis.
Interface modules 6 interface module slots
Route switch processors 2 RSP slots
Fan tray 1 fan tray with fan redundancy4 dry contact input alarms on the fan tray
Air flow Side-to-side airflow; inlet on the right side, outlet on the left side when looking from the front
Chassis MTBF at 40ºC operating temperature 900,000 hours
Fan Tray MTBF at 40ºC operating temperature 600,000 hours
Power consumption Maximum input power 1350W (including loss). This is equivalent to 4600 BTU per hr.
AC input voltage and frequency Voltage range: 85 to 264 VAC, nominal 115 to 230 VACFrequency Range: 47 to 63 Hz, nominal 50 to 60 Hz
AC Power Supply MTBF at 40ºC operating temperature 300,000 hours
DC input voltage For 550W DC power supply, voltage range: 19.2V to 72V DC, nominal +24V DC, -48V/–60V DC.For 1200W DC power supply, voltage range: –40.8V to –72V DC, nominal –48V/–60V DC
DC Power Supply MTBF at 40ºC operating temperature 300,000 hours
Power Supply shipment packaging size (L x W x H) 15.44 in. x 9.44 in. x 4.31 in.
Power Supply shipment weight 3.6 lbs.
Operating environment and altitude –40 to 65ºC operating temperature (DC operation, with both the 550W and the 1200W power supplies)–40 to 65ºC operating temperature (AC operation, with the 1200W power supply)–5 to 55ºC operating temperature (AC operation, with 550W AC power supply)0 to 40ºC operating temperature (AC operation, with 550W AC power supply)–60 to 1800m operating altitude (for full operating temperature range)Up to 4000m operating altitude (at up to 40ºC temperature)

Get more information
Do you have any question about the ASR-903?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices

100% Quality Assurance: All items are ORIGINAL and GENUINE only. Item conditions are “New Sealed” or “Used / Refurbished”. Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support: Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee: You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured
