ASR1000-RP1
Model: ASR1000-RP1 Cisco ASR 1000 Processor
Details: Cisco ASR 1000 Processor ASR1000-RP1
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ASR1000-RP1 Overview

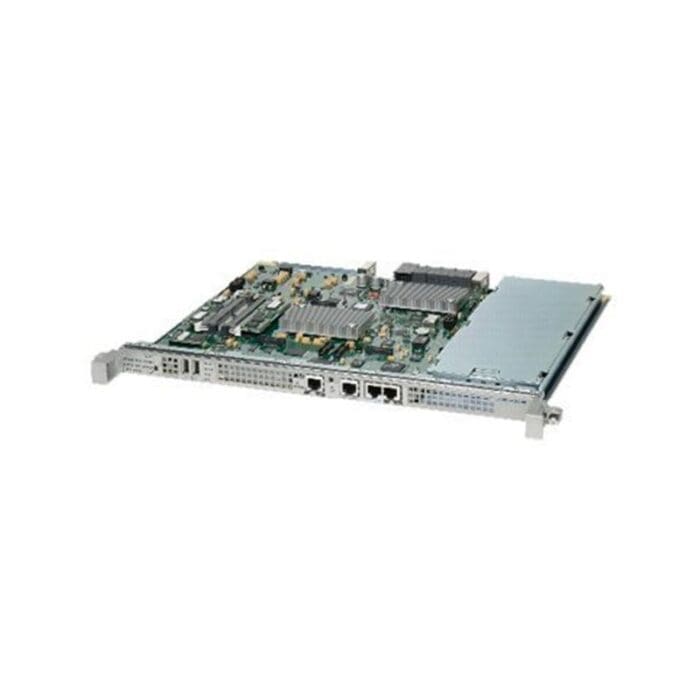

Quick Specs Figure 1 shows the appearance of ASR1000-RP1.
Table 1 shows the Quick Specs.
| Chassis support | Cisco ASR 1004 and ASR 1006 chassis(Note: The Cisco ASR 1002 chassis comes with the Cisco ASR 1000 Series RP1 built into the chassis.)(Note: Cisco ASR 1001, ASR 1001-X, and ASR 1002-X (part numbers ASR1001, ASR1001-X, ASR1002-X) have an integrated Route Processor built in to the chassis that is not upgradable) |
| Software compatibility | Cisco IOS XE Operating System, which is based on Cisco IOS Software Release 12.2SR(Please consult your Cisco account representative for additional details.) |
| Software protocols | Refer to Cisco IOS Software 12.2SR protocol support |
| Connectivity | ● Console port (RJ-45 connector)● Auxiliary port (RJ-45 connector)● 10/100/1000 Ethernet port (RJ-45 connector)● Two RJ-48 connectors for BITS input clocks |
| Memory options | ● Two 1-GB Double Data Rate 2 (DDR2) mini-DIMMs● Two 2-GB DDR2 mini-DIMMs● Upgradable memory from 2-GB to 4-GB DRAM |
| Storage options | ● 40-GB HDD (RP1 only)● 1-GB USB Compact Flash memory |
| Performance | ● Scalability up to 1,000,000 IPv4 routes or 500,000 IPv6 routes● BGP RR Scalability up to 5,000,000 IPv4 routes or 3,000,000 IPv6 routes |
| Reliability and availability | ● 1 + 1 redundancy in dual-route-processor configuration● Support for online insertion and removal (OIR)● Support for NSF and Stateful Switchover (SSO)● Support for ISSU |
| MIBs | ● RFC 2737 compliant |
| Network management | ● Telnet and Secure Shell (SSH) Protocol (command-line interface [CLI])● Console port (through the CLI)● Simple Network Management Protocol (SNMP)● RFC 2665 |
| LEDs | ● PWR – PowerGreen – All power rails are within specifications● STAT – StatusGreen – Cisco IOS Software has bootedYellow – BootROM has successfully loadedRed – System failure or during boot process● ACTV- ActiveGreen – Active route processor● STBY – StandbyYellow – Standby route processor● CRIT – CriticalRed – Critical alarm or during boot process● MAJ – MajorRed – Major alarm● MIN – MinorAmber – Minor alarm● LINK – Management Ethernet link statusSolid green – Link with no activityFLASH green – Link with activityOff – No link● DISK0 – Internal Compact FlashFLASH Green – Activity indicatorOff – No activity● DISK1 – External Compact FlashFLASH green – Activity indicatorOff – No activity● DISK2 – Internal HDDFLASH green – Activity indicatorOff – No activity● CARRIER – BITS interfaceOff – Out of serviceGreen – In frame and in serviceAmber – Fault or loop condition |
| Physical dimensions(H x W x D) | 0.92 x 16.7 x 14.19 in. (0.02 x 0.428 x 0.36m) |
| Approvals and compliance | Safety● UL60950-1 and CAN/CSA-C22.2 No. 60950-1-03 Information technology equipment● AS/NZS 60950-1● IEC/EN 60950-1 Information technology equipment● 73/23/EECElectromagnetic Emissions Certification● AS/NZ 3548: 1995 (including AMD I + II) Class B● EN55022: 1998 Class B● CISPR 22: 1997● EN55022: 1994 (including AMD I + II)● 47 CFR Part 15: 2000 (FCC) Class B● VCCI V-3/01.4 Class 2● CNS-13438: 1997 Class B● GR1089: 1997 (including Rev. 1: 1999)Immunity● EN300386: 2000-TNE EMC requirements; product family standard; high priority of service; central office and noncentral office locations● EN50082-1: 1992/1997● EN50082-2: 1995-Generic Immunity Standard, HeavyIndustrial● CISPR24: 1997● EN55024: 1998-Generic ITE immunity standard● EN61000-4-2: 1995 + AMD I + II ESD, Level 4/8 kV contact, 15 kV air● IEC-1000-4-3: 1995 + AMD 1-Radiated Immunity, 10 V/m● IEC-1000-4-4: 1995-Electrical Fast Transients, Level 4/4 kV/B● IEC-1000-4-5: 1995 + AMD 1-DC Surge-Class 3; AC Surge-Class 4● EN61000-4-6: 1996 + AMD 1-RF conducted immunity, 10 Vrms● EN61000-4-11: 1995-Voltage Dips and Sags● ETS300 132-2: 1996 + corrigendum, December 1996● GR1089:1997 (including Rev1: 1999)Network Equipment Building StandardsThe module meets the following Networking Equipment Building Standards (NEBS):● GR-1089-CORE● GR-63-COREEuropean Telecommunication Standards Institute (ETSI)● ETSI 300 386-1 – Levels for equipment with a “high priority of service” that is installed in “locations other than telecommunication centers”● ETSI 300 386-2:1997 – Levels for equipment with a “high priority of service” that is installed in “locations other than telecommunication centers”● ETSI 300 132-2: December 1994 – Power supply interfaces at the input to telecommunications equipment Sections 4.8 and 4.9 |
| Environmental | ● Storage temperature: -38 to 150°F (-40 to 70°C)● Operating temperature, nominal: 41 to 104°F (5 to 40°C)● Operating temperature, short-term: 23 to 131°F (-5 to 55°C)● Storage relative humidity: 5 to 95% relative humidity (RH)● Operating humidity, nominal: 5 to 85% RH● Operating humidity, short-term: 5 to 90% RH● Operating altitude: -60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements) |
