ASR1001X-2.5G-K9
Model: ASR1001X-2.5G-K9 – Cisco ASR 1000 Series Router
Details: ASR1001-X Router, 2.5G Base Bundle, K9, AES, Built-in 6x1G
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ASR1001X-2.5G-K9 Overview

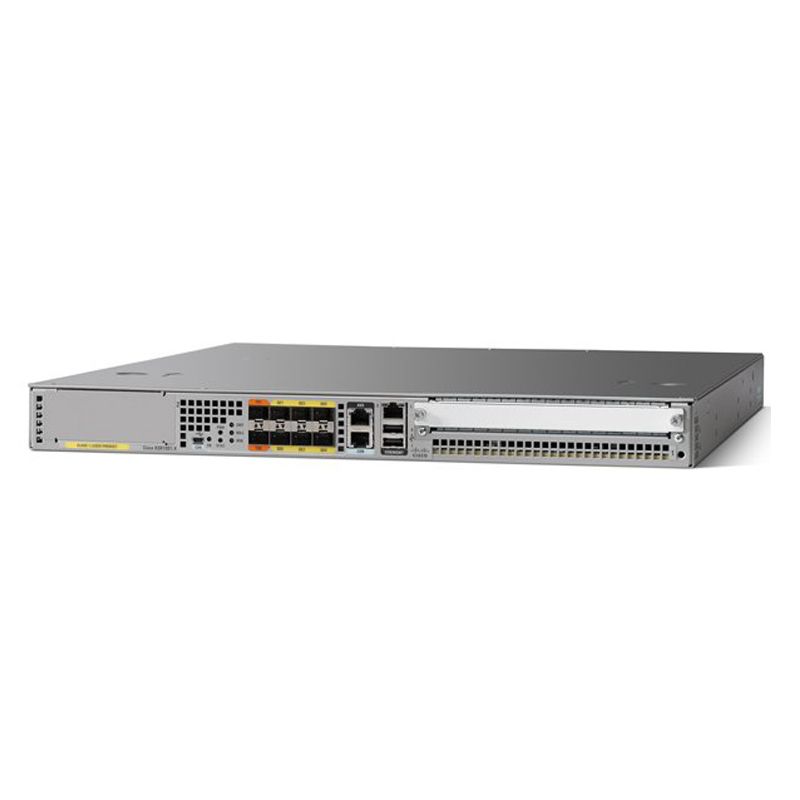

Quick Specs Figure 1 shows the appearance of ASR1001X-2.5G-K9.
Table 1 shows the Quick Specs.
| Physical specificationsNote: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets.Refer to the applicable hardware installation guide for additional details. | Height: 1.71 in. (43.43 mm)Width: 17.3 in. (439.42 mm)Depth: 18.17 in. (461.5 mm)Weight:● 25 lb (11.35 kg) fully loadedNote: The Cisco ASR 1001-X Router has the route processor, ESP, and SIP integrated. |
| Default memory | 8-GB DRAM shared across route processor, ESP, and SIP |
| Number of SIPs or Ethernet line cards supported | Integrated in chassis |
| Shared port adapters | 1 single-height SPA slot |
| Ethernet port adapters | N/A |
| Cisco ASR 1000 Series ESP | Integrated in chassis |
| Route processor | Integrated in the chassis: Cisco ASR 1001-X Series Route Processor with Quad Core Processor |
| Redundancy | Software: Yes |
| Built-in Gigabit Ethernet ports | Yes: 6 Gigabit Ethernet Small Form-Factor Pluggable (SFP) ports |
| Built-in 10 Gigabit Ethernet port | Yes: Two 10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) portsNote:Built-in 10-GB ports cannot be reduced to 1-GB speed. |
| Network interface module | Yes |
| Cisco ASR 1000 Series | Cisco ASR 1001-X |
| ESP support | Cisco ASR 1000 Series 2.5-Gbps ESP (default)Upgradable through a software-activated feature license to 5, 10, or 20 Gbps |
| ESP bandwidth | 2.5 to 20 Gbps |
| ESP memory | Share the same control memory on route processor |
| SIPs and Ethernet line cards | Integrated in chassis; not upgradable |
| Embedded hardware-based encryption | Yes: Up to 8-Gbps crypto support throughput |
| Minimum Cisco IOS XE Software release | Cisco IOS XE Software Release 3.12.0 |
| Rack-mounting | Yes: 19-inch |
| Wall-mounting | No |
| External USB flash memory | 1-GB USB flash-memory support |
| Redundant power supply | Yes: Dual power supplies by default; option of either AC or DC power supplyNote: A mix of one AC and one DC power supply is not supported. |
| Power input | Worldwide ranging AC input range (85 to 264 VAC)Worldwide ranging DC(-40 to -72V; 48V nominal) |
| Power consumption | ● Maximum (DC): 242W● Maximum (AC): 250W● Maximum (out): 250W |
| Airflow | Front-to-back |
| Operating temperature (nominal) | 32 to 104°F(0 to 40°C) |
| Operating temperature (short-term) | 32 to 122°F(0 to 50°C) |
| Operating humidity (nominal) (relative humidity) | 10 to 85% |
| Operating humidity (short-term) | 5 to 90% |
| Storage temperature | -40 to 150°F(-40 to 70°C) |
| Storage humidity (relative humidity) | 5 to 95% |
| Operating altitude | -500 to 10,000 feet(152 to 3048 meters) |
| Network Equipment Building Standards (NEBS) | GR-1089 and GR-63 (in progress) |
| EMC standards | ● FCC 47 CFR Part 15 Class A● VCCI Class A● AS/NSZ Class A● ICES-003 Class A● EN55022/CISPR 22 Information Technology Equipment(Emissions)● EN55024/CISPR 24 Information Technology Equipment(Immunity)● EN300 386 Telecommunications Network Equipment● (EMC)● EN50082-1/EN61000-6-1 Generic Immunity Standard |
| Safety Standard | UL60950-1CSA C22.2 No. 60950-1-03EN 60950-1IEC 60950-1AS/NZS 60950.1 |
