-5%
ASR1002-10G-SEC/K9
Model: ASR1002-10G-SEC/K9 Cisco ASR 1000 Router
Details: Cisco ASR 1002 Router Security Bundle, QuantumFlow processor, 10G system bandwidth, WAN aggregation, SPA slot, SIP10, IPsec VPN, Firewall
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ASR1002-10G-SEC/K9 Overview

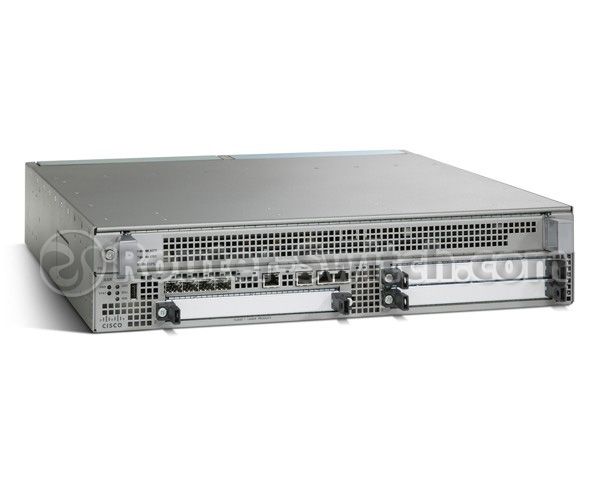

Quick Specs Figure 1 shows the appearance of ASR1002-10G-SEC/K9.
Table 1 shows the Quick Specs.
| Manufacturer Part Number | Cisco ASR 1002 |
| Product Type | Aggregation Service Router |
| Form Factor | Desktop – modular – 3U |
| Connectivity Technology | Wired |
| System Bandwidth | 10G |
| Router Processor | Quad-core 2.13Ghz processor |
| Build-in Gigabit Ethernet port | 4 * SFP ports |
| Redundancy | Software (license included) |
| Cisco ASR 1000 Series ESP | 1 ESP slot |
| SIP and Ethernet line card | Integrated ASR 1000-SIP10, not upgradable |
| Embedded hardware-based encryption | Up to 4-Gbps crypto support throughput |
| Rack-mounting | 19-inch |
| DRAM Memory | 4GB-shared across RP and SIP |
| Flash Memory | 8 GB |
| Shared port adapters | 3 SPA slots |
| External USB flash memory | 1-GB USB flash-memory support |
| Cisco QuantumFlow Processor-based platform | Enables advanced services to operate at high speeds without the need for additional hardware or blades. |
| Hardware acceleration | Features like QoS, crypto, and access control lists (ACLs) are processed in hardware. |
| Control and forwarding-plane separation | Ability to scale control plane and data plane independent of each other. |
| expansion Card | ●1-port OC48/STM16 POS/RPR Shared Port Adapters●2-port OC12/STM4 POS Shared Port Adapters●4-port OC-12/STM-4 POS Shared Port Adapters●8-port OC12/STM4 POS Shared Port Adapters●8-port OC-3/STM-1 POS Shared Port Adapters●8-port Channelized T1/E1 to DS0 Shared Port Adapter●1-port OC192/STM64 POS/RPR XFP Optics●SPA-2XOC12-POS with a license to use 1 port●SPA-4XOC3-POS-V2 with a license to use 2 ports●1 Port Channelized OC3/STM-1 ATM and Circuit Emulation SPA●Cisco 1-port 10GE LAN/WAN-PHY Shared Port Adapter●Synchronous Ethernet SPA●1 port OC12 STM Shared Port Adapter●8-port Channelized T1/E1 to DS0 Shared Port Adapter●1-port Channelized STM-1/OC-3c to DS0 SPA, Version 2●2-port Channelized T3 to DS0 Shared Port Adapter, Version 2●Cisco 10-Port Gigabit Ethernet Shared Port Adapter●24 Port Channelized T1/E1/J1 ATM and Circuit Emulation SPA |
| Embedded Services Processor | ●Cisco ASR1000 Embedded Services Processor, 10G●ASR1K Embedded Services Processor,5Gbps,ASR1002 only●Cisco ASR1K Embedded Services Processor,10G,Non Crypto |
| 1GB USB Flash Token | MEMUSB-1024FT |
| RouterProcessor Memory | ●M-ASR1K-1001-4GB●M-ASR1K-1001-8GB●M-ASR1K-1001-16GB |
| Feature License | ●Unified Border Element – Enterprise Edition 100 Sessions●Unified Border Element Ent, 100 Sessions, Redundancy●Unified Border Element Ent, 500 Sessions, Redundancy●Unified Border Element Ent, 1000 Sessions, Redundancy●Unified Border Element – Enterprise Edition 4000 Sessions●Unified Border Element Ent, 4000 Sessions, Redundancy●Unified Border Element – Enterprise Edition 16000 Sessions●Unified Border Element Ent, 16000 Sessions, Redundancy●CGN RTU Feature License for up to 2M Sessions on ASR1000 |
| License Include | ●SASR1R1-AESK9-313S●FLASR1-FW-RTU |
| IOS XE Operating System | Cisco IOS XE Software Release 2.1 |
