ASR1002-5G-HA/K9
Model: ASR1002-5G-HA/K9 Cisco ASR 1000 Router
Details: Cisco ASR 1000 Router High Availability Bundle ASR1002-5G-HA/K9
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ASR1002-5G-HA/K9 Overview

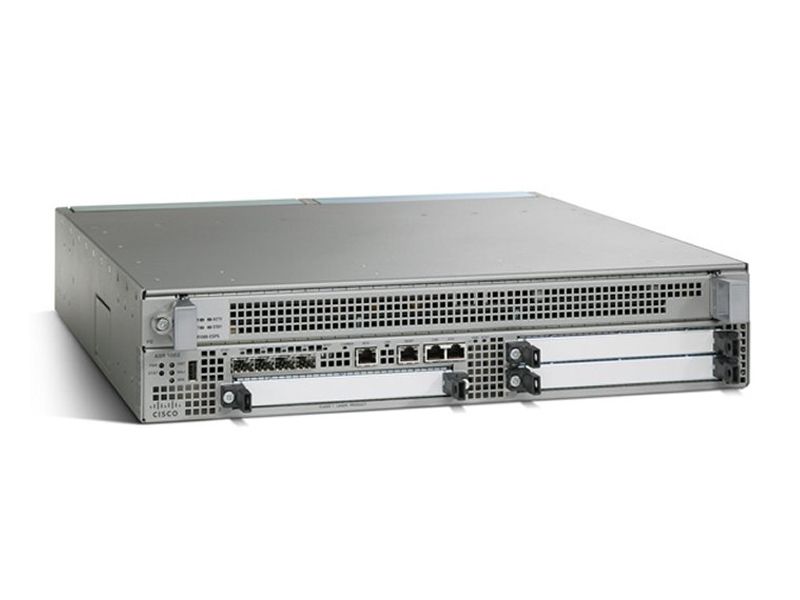

Quick Specs Figure 1 shows the appearance of ASR1002-5G-HA/K9.
Table 1 shows the Quick Specs.
| Device Type | Router – with Cisco ASR 1000 Series Embedded Services Processor, 5Gbps |
| Enclosure Type | Desktop – modular – 2U |
| Connectivity Technology | Wired |
| Remote Management Protocol | SNMP, Telnet, SSH |
| Features | VPN support, MPLS support, IPv6 support, Stateful switchover (SSO), MPLS VPN |
| Compliant Standards | CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZS 60950-1, AS/NZ 3548 Class A, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1 |
| RAM | 4 GB |
| Interfaces | Management: 1 x 10Base-T/100Base-TX – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ Management: 1 x auxiliary – RJ-45 ¦ 4 x SFP (mini-GBIC) |
| Expansion Slots | 3 (total) / 3 (free) x expansion slot ¦ 1 (total) / 0 (free) x processor board |
| Installed Modules Qty (Max) | 1 (installed) / 4 (max) |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Installed Qty | 2 (installed) / 2 (max) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Rack Mounting Kit | Included |
| OS Provided | Cisco IOS Advanced Enterprise Services |
| Width | 17.2 in |
| Depth | 21.9 in |
| Height | 3.5 in |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 90% |
