ASR1002-HX=
Model: ASR1002-HX= – Cisco ASR 1000 Routers
Details: Cisco ASR1002-HX System,4x10GE+4x1GE, 2xP/S, optional crypto
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ASR1002-HX= Overview

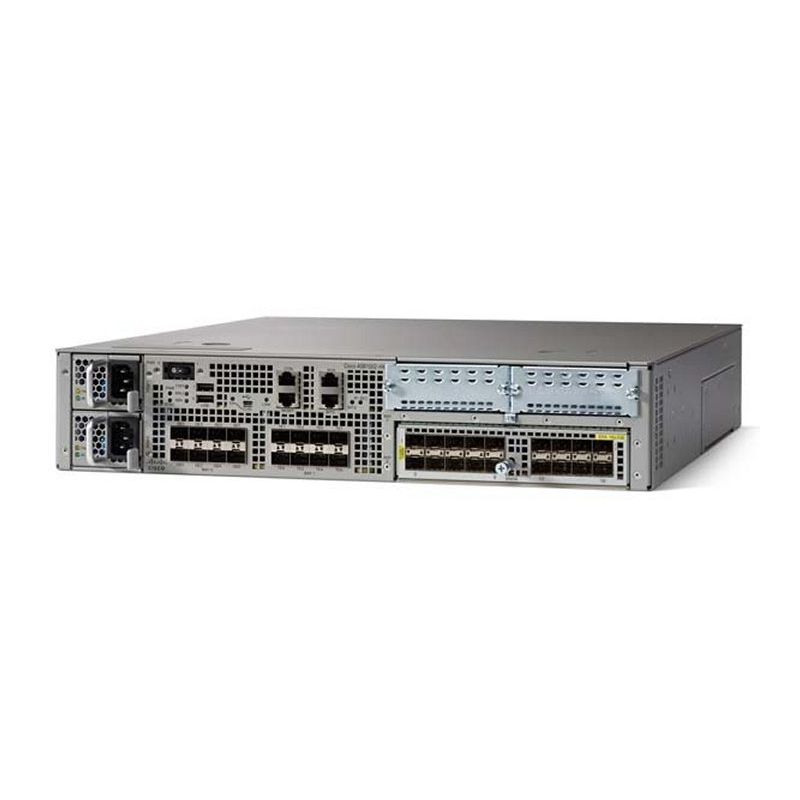

Quick Specs Figure 1 shows the appearance of ASR1002-HX=.
Table 1 shows the Quick Specs.
| Physical specifications | Height: 3.5 in. (88.9 mm)Width: 17.3 in. (439.4 mm)Depth: 19.25 in. (489.0 mm)Weight:● 34 lb (15.45 kg) (with dual AC power supplies)● 34 lb (15.45 kg) (with dual DC power supplies) |
| Default memory | 16-GB DRAM shared across route processor, ESP, and MIP |
| Number of SIPs or Ethernet line cards supported | Integrated in chassis |
| Shared port adapters | N/A |
| Ethernet port adapters | 1 EPA slot |
| Cisco ASR 1000 Series ESP | Integrated in chassis |
| Route processor | Integrated in the chassis: Cisco ASR 1002-HX Series Route Processor |
| Redundancy | Software: Yes |
| Built-in Gigabit Ethernet ports | Yes: 8 Gigabit Ethernet SFP ports |
| Built-in 10 Gigabit Ethernet port | Yes: Eight 10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) portsNote:Built-in 10-GB ports cannot be reduced to 1-GB speed. |
| Network interface module | Yes |
| ESP support | Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) equivalent |
| ESP bandwidth | 100 Gbps |
| ESP memory | Share the same control memory on route processor |
| SIPs and Ethernet line cards | Integrated in chassis: not upgradable |
| Embedded hardware-based encryption | Yes: Up to 25-Gbps crypto support throughput |
| Minimum Cisco IOS XE Software release | Cisco IOS XE Software Release 16.2.1S |
| Rack-mounting | Yes: 19-inch |
| Wall-mounting | No |
| External USB flash memory | 1-GB USB flash-memory support |
| Redundant power supply | Yes: Dual power supplies by default; option of either AC or DC power supplyNote: A mix of one AC and one DC power supply is not supported. |
| Power input | Worldwide ranging AC input range (85 to 264 VAC)Worldwide ranging DC(-40 to -72; -48V nominal) |
| Power consumption | ● Maximum (DC): 500W● Maximum (AC): 500W |
| Airflow | Front-to-back |
| Operating temperature (nominal) | 32 to 104°F(0 to 40°C) |
| Operating temperature (short-term) | 32 to 122°F(0 to 50°C) |
| Operating humidity (nominal) (relative humidity) | 10 to 85% |
| Operating humidity (short-term) | 5 to 90% |
| Storage temperature | -40 to 150°F(-40 to 70°C) |
| Storage humidity (relative humidity) | 5 to 95% |
| Operating altitude | -500 to 10,000 feet(152 to 3048 meters) |
| Network Equipment Building Standards (NEBS) | GR-1089 and GR-63 |
| EMC standards | Emissions● FCC 47CFR15 Class A● AS/NZS CISPR 22● CISPR 22 Class A● EN55022 Class A● ICES-003 Class A● VCCI Class A● CNS-13438 Class A● EN61000-3-2● EN61000-3-3Immunity● IEC/EN61000-4-2 Electrostatic Discharge Immunity● IEC/EN61000-4-3 Radiated Immunity● IEC/EN61000-4-4 EFT-B Immunity● IEC/EN61000-4-5 Surge● IEC/EN61000-4-6 Immunity to Conducted Disturbances● IEC/EN61000-4-8 Power Frequency Magnetic Field Immunity● IEC/EN61000-4-11 Voltage Dips, Short Interruptions, and Voltage VariationsETSI/EN● EN55022/CISPR 22 Information Technology Equipment (Emissions)● EN55024/CISPR 24 Information Technology Equipment (Immunity)● EN300 386 Telecommunications Network Equipment● EN50082-1/EN61000-6-1 Generic Immunity Standard |
| Safety Standard | UL60950-1CSA C22.2 No. 60950-1-03EN 60950-1IEC 60950-1AS/NZS 60950.1 |
