ASR1002X-10G-K9
Model: ASR1002X-10G-K9 – Cisco ASR 1000 Series Router
Details: ASR1002-X Router, 10G, K9, AES license
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ASR1002X-10G-K9 Overview

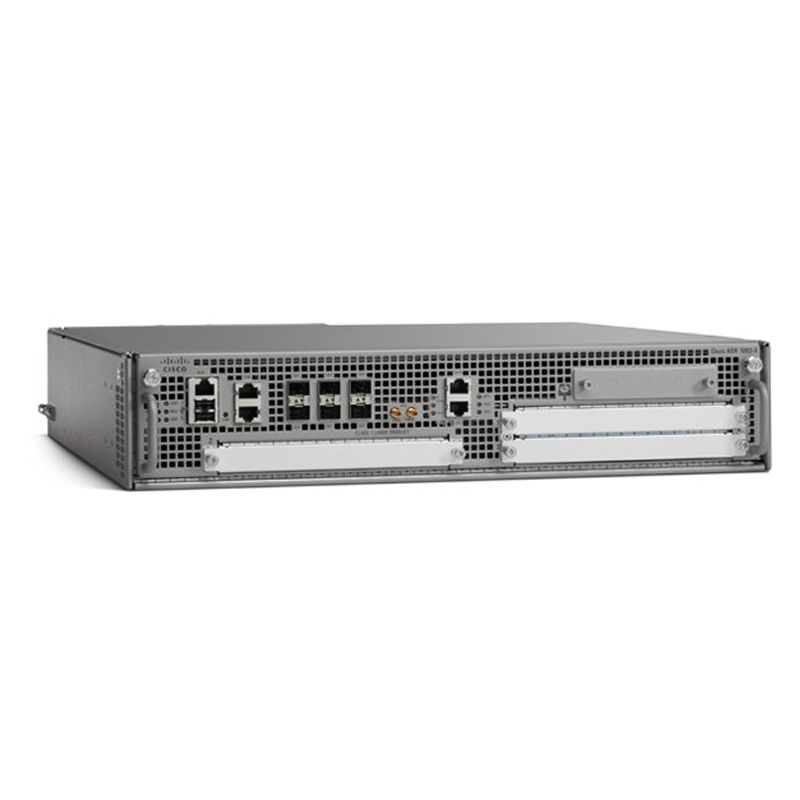

Quick Specs Figure 1 shows the appearance of ASR1002X-10G-K9.
Table 1 shows the Quick Specs.
| Physical specificationsNote: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets.Refer to the applicable hardware installation guide for additional details. | Height: 3.5 in. (88.9 mm)Width: 17.2 in. (437.4 mm)Depth: 18.15 in. (461.0 mm)Weight:● 38.25 lb (17.36 kg) (with dual AC power supply and SPA blank covers)● 39.05 lb (17.72 kg) (with dual DC power supply and blank covers)● No SPAs includedNote: The Cisco ASR 1002-X has the route processor, ESP, and SIP integrated. |
| Default memory | 4-GB DRAM shared across route processor, ESP, and SIP |
| Number of SIPs or Ethernet line cards supported | Integrated in chassis |
| Shared port adapters | 3 SPA slots |
| Ethernet port adapters | N/A |
| Cisco ASR 1000 Series ESP | Integrated in chassis |
| Route processor | Integrated in the chassis: Cisco ASR 1002-X Series Route Processor with Quad Core Processor |
| Redundancy | Software: Yes |
| Built-in Gigabit Ethernet ports | Yes: 6 Gigabit Ethernet SFP ports |
| Built-in 10 Gigabit Ethernet port | No |
| Network interface module | No |
| Cisco ASR 1000 Series | Cisco ASR 1002-X |
| ESP support | Cisco ASR 1002-X ESP with 5-Gbps (default)Upgradable through software-activated feature license to 10, 20, or 36 Gbps |
| ESP bandwidth | 5 to 36 Gbps |
| ESP memory | Share the same control memory on route processor |
| SIPs and Ethernet line cards | Integrated in chassis: not upgradable |
| Embedded hardware-based encryption | Yes: Up to 4-Gbps crypto support throughput |
| Minimum Cisco IOS XE Software release | Cisco IOS XE Software Release 3.7.0S |
| Rack-mounting | Yes: 19-inch |
| Wall-mounting | No |
| External USB flash memory | 1-GB USB flash-memory support |
| Redundant power supply | Same as for Cisco ASR 1002 |
| Power input | Same as for Cisco ASR 1002 |
| Power consumption | ● Maximum (DC): 590W● Maximum (AC): 560W● Maximum (out): 470W |
| Airflow | Front-to-back |
| Operating temperature (nominal) | 32 to 104°F(0 to 40°C) |
| Operating temperature (short-term) | 32 to 122°F(0 to 50°C) |
| Operating humidity (nominal) (relative humidity) | 10 to 85% |
| Operating humidity (short-term) | 5 to 90% |
| Storage temperature | -40 to 150°F(-40 to 70°C) |
| Storage humidity (relative humidity) | 5 to 95% |
| Operating altitude | -500 to 10,000 feet(152 to 3048 meters) |
| Network Equipment Building Standards (NEBS) | GR-1089 and GR-63 |
| EMC standards | Same as for Cisco ASR 1001-X |
| Safety Standard | UL60950-1CSA C22.2 No. 60950-1-03EN 60950-1IEC 60950-1AS/NZS 60950.1 |
