ASR1004-20G-SEC/K9
Model: ASR1004-20G-SEC/K9 Cisco ASR 1000 Router
Details: Cisco ASR 1000 Router Security Bundle ASR1004-20G-SEC/K9
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ASR1004-20G-SEC/K9 Overview

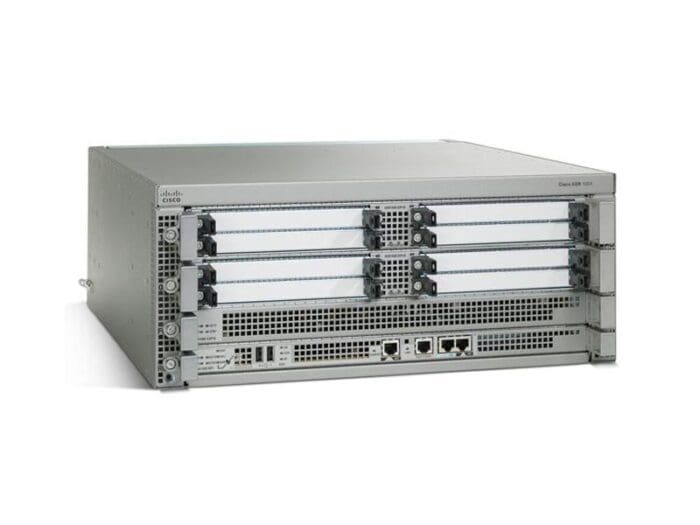

Quick Specs Figure 1 shows the appearance of ASR1004-20G-SEC/K9.
Table 1 shows the Quick Specs.
| Device Type | Router |
| Enclosure Type | Desktop, rack-mountable – modular – 4U |
| Connectivity Technology | Wired |
| Performance | Forwarding performance: 23 Mbps ¦ Bandwidth: 20 Gbps |
| Capacity | Access control entries: 100000 ¦ QoS hardware queues: 128000 ¦ Concurrent IPSec VPN tunnels: 10000 ¦ NAT/ firewall sessions: 2000000 ¦ GRE tunnels: 4000 ¦ Maximum number of instances: 4000 ¦ Concurrent RTP sessions: 4000 ¦ Concurrent L2TP VPN tunnels: 16000 ¦ Concurrent sessions: 32000 |
| Network / Transport Protocol | IPSec |
| Remote Management Protocol | SNMP, Telnet, SSH, CLI |
| Features | Firewall protection, NAT support, VPN support, load balancing, IPv6 support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Quality of Service (QoS), IPv4 support, NetFlow |
| Compliant Standards | CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03 |
| Hard Drive | 40 GB |
| Interfaces | Management: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ Management: 1 x auxiliary – RJ-45 ¦ Management: 1 x USB – 4 pin USB Type A |
| Expansion Slots | 1 (total) / 0 (free) x processor board ¦ 11 (total) / 9 (free) x expansion slot |
| Installed Modules Qty (Max) | 3 (installed) / 12 (max) |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Installed Qty | 2 (installed) / 2 (max) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
