ASR1013
Model: ASR1013 Cisco ASR 1000 Chassis
Details: Cisco ASR 1000 Chassis ASR1013
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ASR1013 Overview

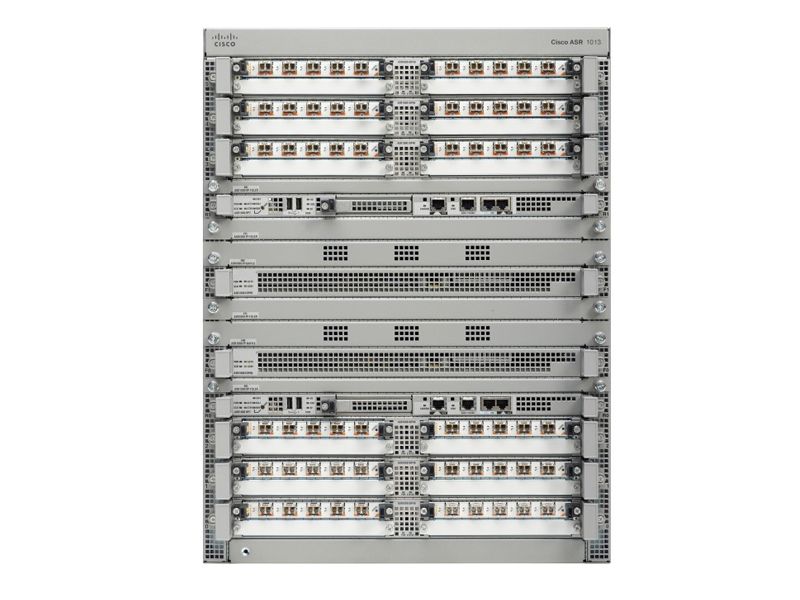

Quick Specs Figure 1 shows the appearance of ASR1013.
Table 1 shows the Quick Specs.
| Physical specificationsNote: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets.Refer to the applicable hardware installation guide for additional details. | Height: 22.8 in. (579.1 mm)Width: 17.2 in. (437.4 mm)Depth: 18.15 in. (461.0 mm)Weight:● 184.0 lb (83.46 kg) (with redundant AC power supply, SPA, route processor, SIP blank covers, two Cisco ASR 1000 Series 40-Gbps ESPs [ASR1000-ESP40] or ASR1000 Series 100-Gbps ESPs [ASR1000-ESP100] or ASR1000 Series 200-Gbps ESPs [ASR1000-ESP200], two Cisco ASR 1000 Series RP2s [ASR1000-RP2], six Cisco ASR 1000 Series 40-Gbps SIPs [ASR1000-SIP40], and no SPAs) |
| Default memory | 8-GB DRAM RP28-GB DRAM RP3 |
| Number of SIPs or Ethernet line cards supported | 6 |
| Shared port adapters | 24 SPA slots |
| Ethernet port adapters | 12 EPA slots |
| Cisco ASR 1000 Series ESP | 2 ESP slots |
| Route processor | 2 route-processor slots |
| Redundancy | Hardware: Yes |
| Built-in Gigabit Ethernet ports | 0 |
| Built-in 10 Gigabit Ethernet port | No |
| Network interface module | No |
| Cisco ASR 1000 Series | Cisco ASR 1013 |
| ESP support | Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40),Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100), and Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200) |
| ESP bandwidth | 40 to 200 Gbps |
| ESP memory | Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40):8-GB DRAMCisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100): 16-GB DRAMCisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200): 32-GB DRAM |
| SIPs and Ethernet line cards | Supports Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40), Cisco ASR1000 Series MIP 100-Gbps Carrier Card (ASR1000-MIP100), and ASR 1000 Fixed Ethernet Line Card; two 10 GE + twenty 1 GE (ASR1000-2T+20X1GE) line cards; and six 10 GE line cards (ASR1000-6TGE) |
| Embedded hardware-based encryption | Yes: On Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) with up to 11-Gbps crypto support throughput, Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) with up to 29-Gbps crypto support throughput, and Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200) with up to 78-Gbps crypto support throughput |
| Minimum Cisco IOS XE Software release | Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) requires Cisco IOS XE Software Release 3.1.0S, ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) requires Cisco IOS XE Software Release 3.7.0S, and ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200) requires Cisco IOS XE Software Release 3.10.0S |
| Rack-mounting | Yes: 19-inch |
| Wall-mounting | No |
| External USB flash memory | 1-GB USB flash-memory support |
| Redundant power supply | Yes: Quad power supplies (redundant pairs) by default; option of either AC or DC power suppliesNote: A mix of AC and DC power supplies is not supported. |
| Power input | Worldwide ranging AC (180 to 264V; 240V; 60 or 50 Hz nominal)Worldwide ranging DC(-40.5 to-72; -48V nominal) |
| Power consumption | ● Maximum (DC): 4200W● Maximum (AC-high line): 4000W● Maximum (out): 3390W |
| Airflow | Front-to-back |
| Operating temperature (nominal) | Same as for Cisco ASR 1001-X |
| Operating temperature (short-term) | Same as for Cisco ASR 1001-X |
| Operating humidity (nominal) (relative humidity) | Same as for Cisco ASR 1001-X |
| Operating humidity (short-term) | Same as for Cisco ASR 1002 |
| Storage temperature | Same as for Cisco ASR 1001-X |
| Storage humidity (relative humidity) | Same as for Cisco ASR 1001-X |
| Operating altitude | Same as for Cisco ASR 1001-X |
| Network Equipment Building Standards (NEBS) | GR-1089 and GR-63 |
| EMC standards | Same as for Cisco ASR 1001-X |
