ASR1101M
Model: ASR1101M – Dahua Access Control Readers
Details: Dahua Vandal-proof RFID Reader
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
ASR1101M Overview

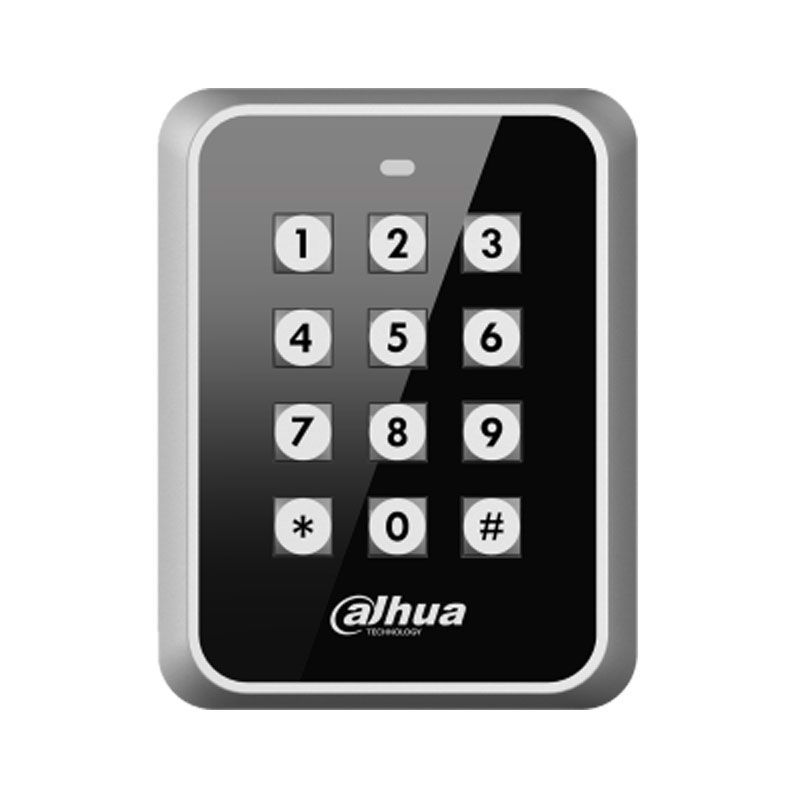

Quick Specs Figure 1 shows the appearance of ASR1101M.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Product Name | Dahua Vandal-proof RFID Reader |
| Model Number | ASR1101M |
| Type | RFID Reader |
| Vandal-Proof Rating | IK10 |
| Card Technology | RFID |
| Card Reading Distance | Up to 10 cm |
| Supported Card Types | EM card |
| Communication Interface | RS485 |
| Operating Voltage | 9~15V DC |
| Power Consumption | < 1.5W |
| Operating Temperature | -30??C ~ 60??C |
| Operating Humidity | 0%~95% (non-condensing) |
| Protection Level | IP65 |
| Dimensions | 113 x 86 x 22 mm |
| LED Indicator | Yes |
| Buzzer | Yes |
| Installation Method | Surface mount |
| Application | Access control systems |
| Certifications | CE, FCC |
