ASUS ROG GS-AX5400
Model: ASUS ROG GS-AX5400 – ASUS WiFi Systems
Details: ASUS ROG STRIX GS-AX5400 dual-band WiFi 6 gaming router, PS5 compatible, Mobile Game Mode, VPN Fusion, lifetime free internet security, Gear Accelerator
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
ASUS ROG GS-AX5400 Overview

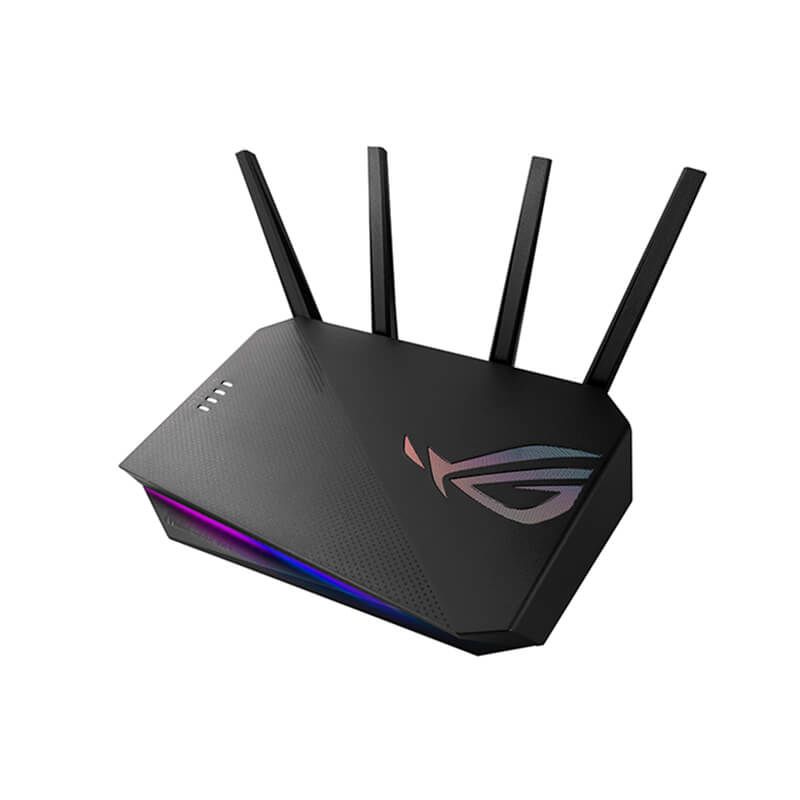

Quick Specs Figure 1 shows the appearance of ASUS ROG GS-AX5400.
Table 1 shows the Quick Specs.
| Network Standard | IEEE 802.11aIEEE 802.11bIEEE 802.11gIEEE 802.11nIEEE 802.11acIEEE 802.11axIPv4IPv6 |
| Product Segment | AX5400 ultimate AX performance : 4804 Mbps+ 574 Mbps |
| AX technology | Yes |
| Data Rate | 2.4GHz N: 2×2 (Tx/Rx) 1024 QAM 20/40MHz, up to 500Mbps5GHz AC: 4×4 (Tx/Rx) 1024 QAM 20/40/80MHz, up to 2167Mbps2.4GHz AX: 2×2 (Tx/Rx) 1024 QAM 20/40MHz, up to 574Mbps5GHz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps |
| Antenna | External antenna x 4 |
| Transmit/Receive | 2.4 GHz 2 x 25 GHz 4 x 4 |
| Processor | 1.5 GHz tri-core processor |
| Memory | 256 MB Flash512 MB RAM |
| Boosts speed | OFDMA (Orthogonal Frequency Division Multiple Access)Beamforming: standard-based and universal1024-QAM high data rate20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4G Hz / 5 GHz |
| Ports | RJ45 for Gigabits BaseT for WAN x 1RJ45 for Gigabits BaseT for LAN x 4USB 3.2 Gen 1 x 1 |
| Button | WPS ButtonReset ButtonPower Switch |
| LED Indicator | Power x 12.4G x 15G x 1WAN x 1 |
| Power Supply | AC Input : 110V~240V(50~60Hz)DC Output : 19 V with max. 1.75 A current |
| Package content | GS-AX5400 RouterRJ-45 cablePower adapterWarranty cardQuick start guide |
| Product Weight (g) | 701.3 g |
| AiMesh | AiMesh : YesPrimary AiMesh router : YesAiMesh node : Yes |
| Router APP | ASUS Router APP : Yes |
| Game | Game Boost/acceleration : YesROG_First : YesOpenNAT (Game Profile) : YesGaming port : Yes |
| Alexa | Support Alexa skill : Yes |
| AiProtection | AiProtection : AiProtection ProRouter Security Assessment : YesMalicious site blocking : YesTwo-Way IPS : YesInfected Device Prevention and Blocking : Yes |
| Parental Control | Parental Control : YesParental Control Customized Internet schedule : Yes |
| Traffic Control | Adaptive QoS : YesBandwidth Monitor : YesBandwidth limiter : YesMaximum Bandwidth limiter rule : 32Traditional QoS : YesMaximum Traditional QoS rule : 32Traffic Monitor : YesReal-time traffic monitor : YesWired Traffic Monitor : YesWireless Traffic Monitor : YesTraffic Analyzer : YesTraffic analysis period : Daily, Weekly, MonthlyWebsite history : Yes |
| Wireless | IPv6 : YesMU-MIMO : YesWi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS supportUTF-8 SSID : YesGuest Network : YesMaximum Guest Network rule : 2.4GHz x3, 5GHz x3WPS : YesWi-Fi MAC address filter : YesMaximum MAC filters : 64Wireless scheduler : YesWi-Fi Radar : YesAirtime fairness : YesRADIUS Server : NoUniversal beamforming : Yes |
| WAN | Explicit beamforming : YesInternet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IPDual WAN : YesWAN Aggregation : Yes3G/4G LTE dongle : YesAndroid tethering : YesPort forwarding : YesMaximum port forwarding rule : 64Port triggering : YesMaximum port triggering rule : 32DMZ : YesDDNS : YesNAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay |
| LAN | DHCP Server : YesIGMP snooping : YesIPTV : YesLAN Link Aggregation : YesManually assign IP address : YesMaximum manually assign IP address rule : 64 |
| VPN | VPN Client L2PT : YesVPN Client OVPN : YesVPN Client PPTP : YesVPN Server IPSec : YesVPN Server OVPN : YesVPN Server PPTP : YesVPN Fusion : Yes |
| USB application | File System : HFS+, NTFS, vFAT, ext2, ext3, ext4HDD hibernation : YesSafely Remove disk : YesAiCloud : YesDownload master : YesAiDisk : YesMedia Server : YesTime Machine : YesSamba Server : YesFTP Server : YesShared Folder privileges : Yes |
| Administration | Operating mode :Wireless router modeAccess point modeMedia bridge modeRepeater modeAiMesh node modeOperating system : ASUSWRTFree OS upgrade : YesFirewall : YesMaximum Firewall keyword filter : 64Maximum Firewall network service filter : 32Maximum Firewall URL filter : 64Wake on LAN (WOL) : YesSSH : YesConfiguration backup and restore : YesDiagnosis tools : YesFeedback system : YesSystem log : Yes |
