C0NMCON01
Model: Huawei C0NMCON01 14040184 RF Coaxial Connector
Details: RF Coaxial Connector,Type N,50ohm,Plug,Straight,Male,Nut Installation-Matching RG-8U
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
C0NMCON01 Overview

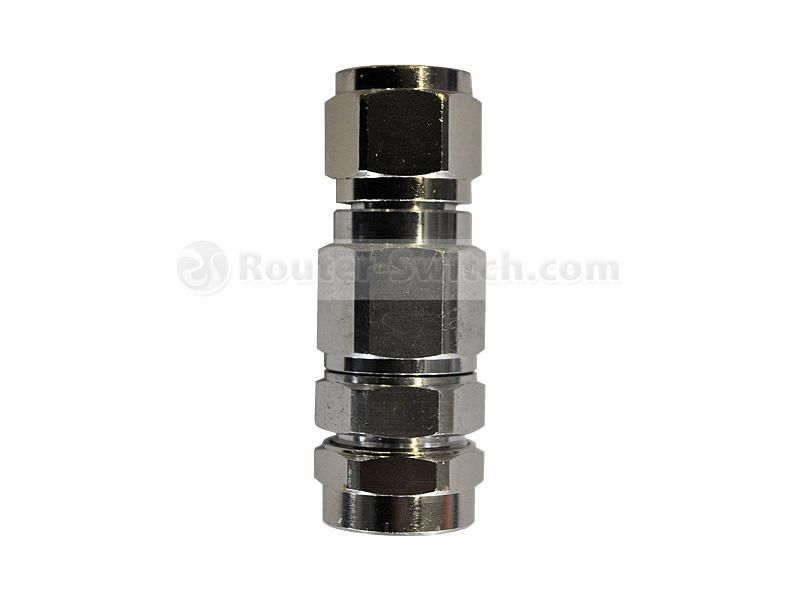

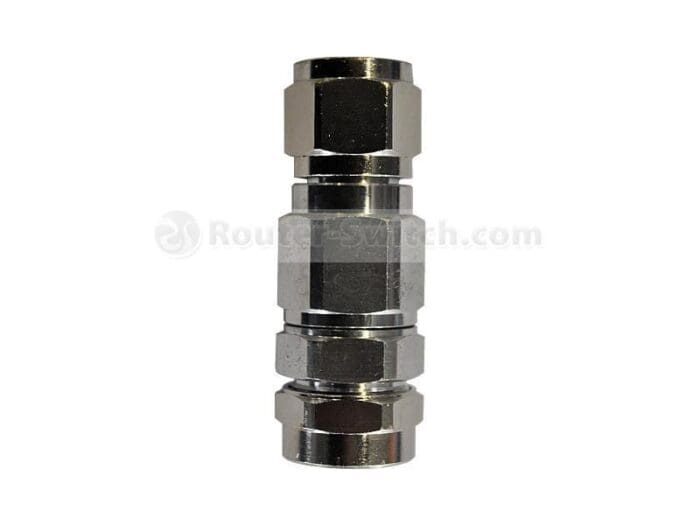

Quick Specs Figure 1 shows the appearance of C0NMCON01.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Product Type | RF Coaxial Connector |
| Connector Type | Type N |
| Impedance | 50 ohms |
| Gender | Male |
| Orientation | Straight |
| Installation Method | Nut Installation |
| Compatible Cable | RG-8U |
| Frequency Range | 0-11 GHz |
| Connector Material | Brass |
| Contact Material | Gold-Plated Brass |
| Insulation Material | PTFE |
| Operating Temperature Range | -55°C to +165°C |
| VSWR | ° 1.3 |
| Contact Resistance | Center Contact: ° 3 m°, Outer Contact: ° 2 m° |
| Dielectric Withstanding Voltage | 2500 V RMS, 50 Hz |
| Insertion Loss | ° 0.15 dB |
| Durability | ° 500 mating cycles |
| Waterproof Rating | IP67 |
| RoHS Compliant | Yes |
| Packing | Individual Bag |
