Name: C1-ASR1002-X/K9
SKU: C1-ASR1002-X/K9
Price: 13593.55 USD
Availability: InStock

C1-ASR1002-X/K9

Model: C1-ASR1002-X/K9 – Cisco 1000 Series ASR Platform
Details: Cisco ONE – ASR1002-X
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

C1-ASR1002-X/K9 Overview

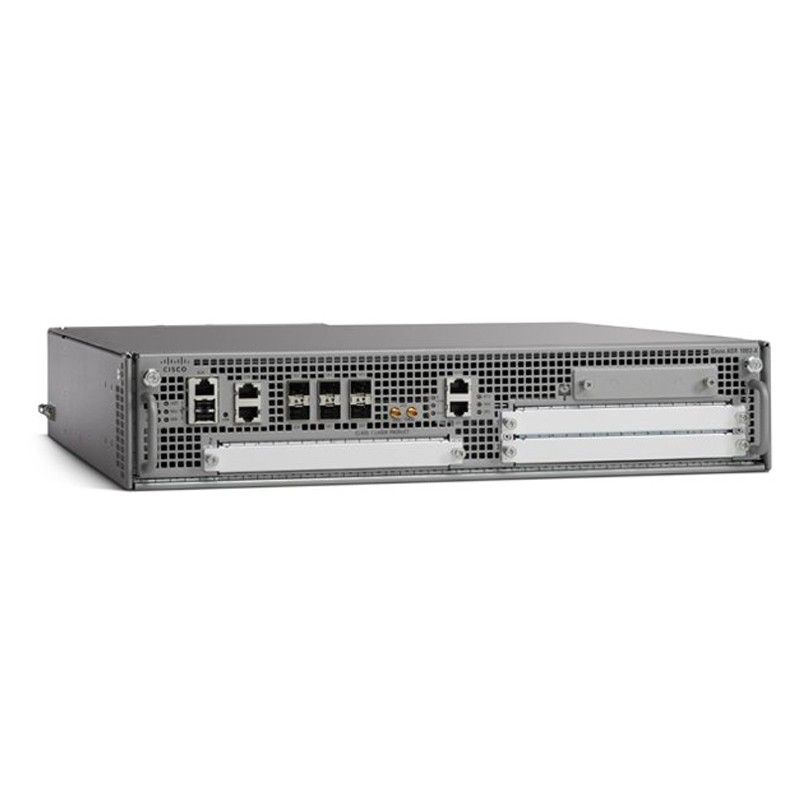

Quick Specs Figure 1 shows the appearance of C1-ASR1002-X/K9.

Table 1 shows the Quick Specs.

Physical specificationsNote: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets.Refer to the applicable hardware installation guide for additional details.	Height: 3.5 in. (88.9 mm)Width: 17.2 in. (437.4 mm)Depth: 18.15 in. (461.0 mm)Weight:● 38.25 lb (17.36 kg) (with dual AC power supply and SPA blank covers)● 39.05 lb (17.72 kg) (with dual DC power supply and blank covers)● No SPAs includedNote: The Cisco ASR 1002-X has the route processor, ESP, and SIP integrated.
Default memory	4-GB DRAM shared across route processor, ESP, and SIP
Number of SIPs or Ethernet line cards supported	Integrated in chassis
Shared port adapters	3 SPA slots
Ethernet port adapters	N/A
Cisco ASR 1000 Series ESP	Integrated in chassis
Route processor	Integrated in the chassis: Cisco ASR 1002-X Series Route Processor with Quad Core Processor
Redundancy	Software: Yes
Built-in Gigabit Ethernet ports	Yes: 6 Gigabit Ethernet SFP ports
Built-in 10 Gigabit Ethernet port	No
Network interface module	No
Cisco ASR 1000 Series	Cisco ASR 1002-X
ESP support	Cisco ASR 1002-X ESP with 5-Gbps (default)Upgradable through software-activated feature license to 10, 20, or 36 Gbps
ESP bandwidth	5 to 36 Gbps
ESP memory	Share the same control memory on route processor
SIPs and Ethernet line cards	Integrated in chassis: not upgradable
Embedded hardware-based encryption	Yes: Up to 4-Gbps crypto support throughput
Minimum Cisco IOS XE Software release	Cisco IOS XE Software Release 3.7.0S
Rack-mounting	Yes: 19-inch
Wall-mounting	No
External USB flash memory	1-GB USB flash-memory support
Redundant power supply	Same as for Cisco ASR 1002
Power input	Same as for Cisco ASR 1002
Power consumption	● Maximum (DC): 590W● Maximum (AC): 560W● Maximum (out): 470W
Airflow	Front-to-back
Operating temperature (nominal)	32 to 104°F(0 to 40°C)
Operating temperature (short-term)	32 to 122°F(0 to 50°C)
Operating humidity (nominal) (relative humidity)	10 to 85%
Operating humidity (short-term)	5 to 90%
Storage temperature	-40 to 150°F(-40 to 70°C)
Storage humidity (relative humidity)	5 to 95%
Operating altitude	-500 to 10,000 feet(152 to 3048 meters)
Network Equipment Building Standards (NEBS)	GR-1089 and GR-63
EMC standards	Same as for Cisco ASR 1001-X
Safety Standard	UL60950-1CSA C22.2 No. 60950-1-03EN 60950-1IEC 60950-1AS/NZS 60950.1
