C1-C2960X-24TS-L
Model: C1-C2960X-24TS-L – Cisco ONE Catalyst 2960 Series Platform
Details: Cisco ONE Catalyst 2960-X 24 GigE, 4 x 1G SFP, LAN Base
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
C1-C2960X-24TS-L Overview

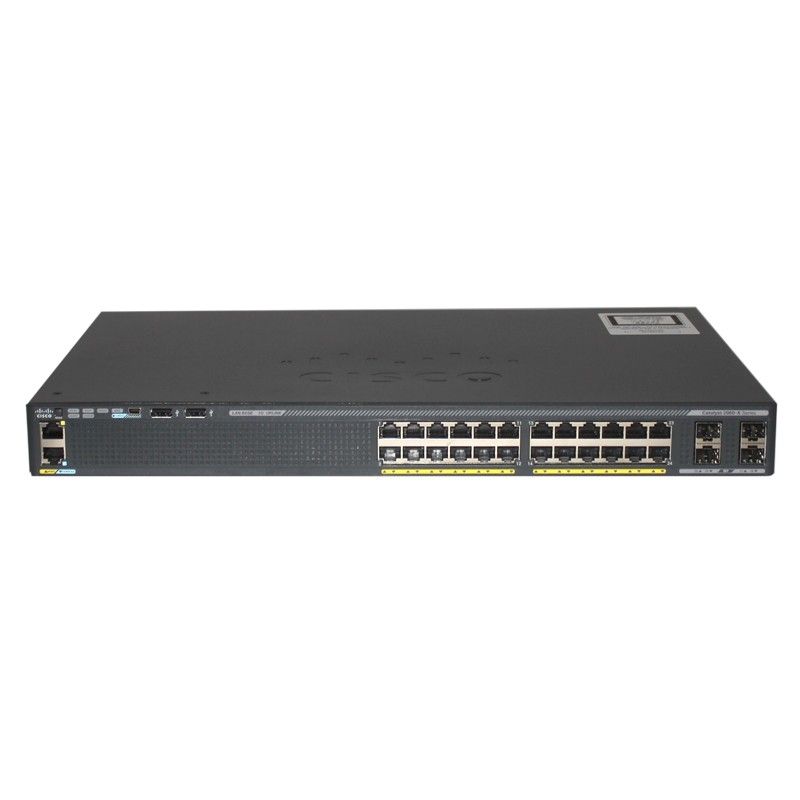

Quick Specs Figure 1 shows the appearance of C1-C2960X-24TS-L.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Product Name | Cisco ONE Catalyst 2960-X |
| Model Number | C1-C2960X-24TS-L |
| Ports | 24 Gigabit Ethernet |
| Uplink Interfaces | 4 x 1G SFP |
| Software | LAN Base |
| Switching Capacity | 216 Gbps |
| Forwarding Rate | 107.1 Mpps |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| Maximum VLANs | 4094 |
| MAC Address Table Size | 16K |
| Jumbo Frame Support | Yes, up to 9216 bytes |
| Dimensions | 45 mm x 445 mm x 279 mm |
| Power Supply | Single, internal, fixed power supply |
| Redundant Power Supply | Optional |
| Operating Temperature | 0 to 45??C (32 to 113??F) |
| Storage Temperature | -25 to 70??C (-13 to 158??F) |
| Operating Humidity | 10% to 95% non-condensing |
| MTBF | 348,280 hours |
| Layer Supported | Layer 2 and Layer 3 |
| Manageability | Web GUI, CLI, SNMP |
