-5%
C1-C4503E-S7L+48V+
Model: C1-C4503E-S7L+48V+ – Cisco ONE Catalyst 4500 Series Platform
Details: Cisco ONE Catalyst 4503-E Chassis 1 WS-X4648-RJ45V+E Sup7L-E LAN Base
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
C1-C4503E-S7L+48V+ Overview

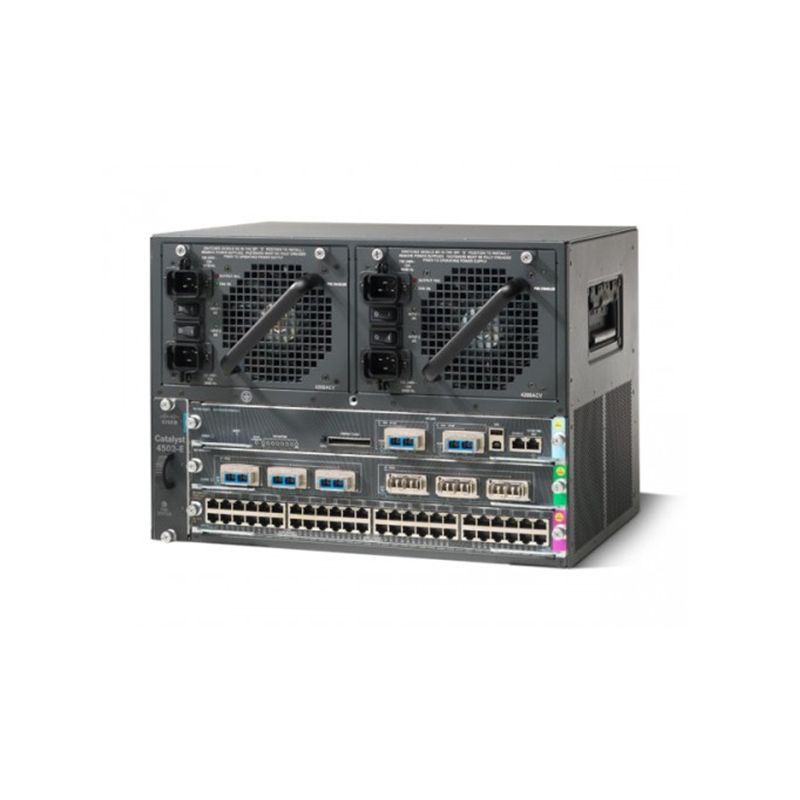

Quick Specs Figure 1 shows the appearance of C1-C4503E-S7L+48V+.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Product Name | Cisco ONE Catalyst 4503-E Chassis 1 WS-X4648-RJ45V+E Sup7L-E LAN Base |
| Part Number | C1-C4503E-S7L+48V+ |
| Form Factor | Rack-mountable |
| Chassis Slots | 5 (3 free slots for line cards, 1 slot for supervisor, 1 slot for power supply) |
| Line Card | 48-Port 10/100/1000 (RJ45) |
| Supervisor Engine | Sup7L-E |
| Base Image | LAN Base |
| Backplane Capacity | 848 Gbps |
| Forwarding Rate | 250 Mpps |
| Power Supply | AC – Internal |
| Redundancy | 1+1 Supervisor, PSU redundancy |
| Dimensions (H x W x D) | 44.45 mm x 43.18 cm x 34.29 cm |
| Operating Temperature | 32 to 104??F (0 to 40??C) |
| Storage Temperature | -40 to 158??F (-40 to 70??C) |
| Relative Humidity (non-condensing) | 10% to 95% |
| MTBF | 171,500 hours |
| Network Management | SNMP, RMON, Telnet, Console |
| Built-in Security Features | Access control lists (ACLs), Secure management via SSH/SSL |
| Warranty | Limited Lifetime Warranty |
