C1-N3K-C3172PQ-XL
Model: C1-N3K-C3172PQ-XL – Cisco Nexus 3000 Series Platform
Details: Cisco ONE Nexus 3172PQ,48xSFP+ & 6 QSFP+ ports, extended memory
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
C1-N3K-C3172PQ-XL Overview

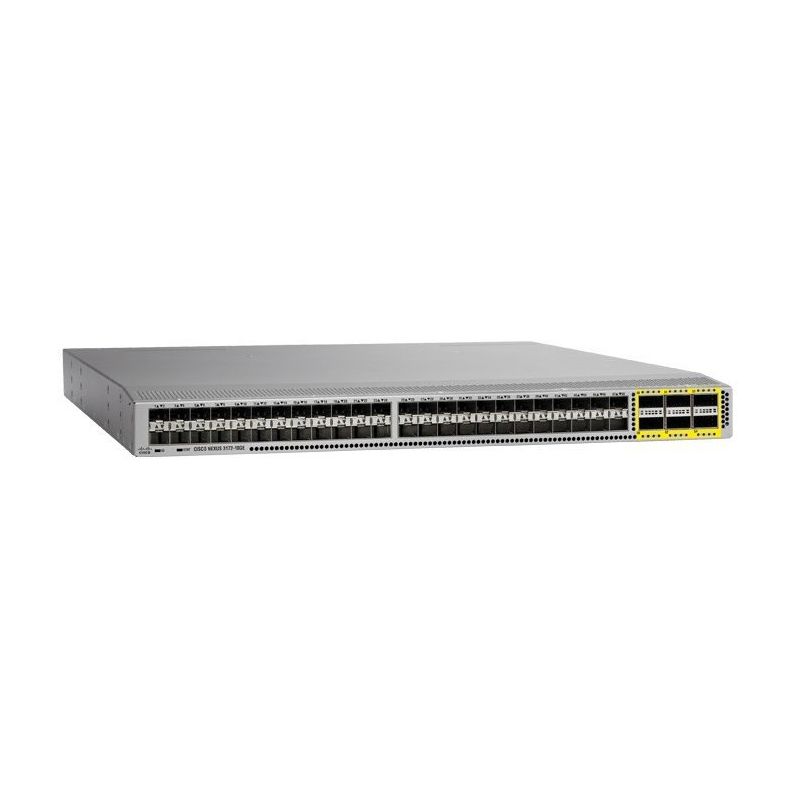

Quick Specs Figure 1 shows the appearance of C1-N3K-C3172PQ-XL.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Model | C1-N3K-C3172PQ-XL |
| Product Name | Cisco ONE Nexus 3172PQ |
| Ports | 48 x SFP+, 6 x QSFP+ |
| Memory | Extended Memory |
| Layer | Layer 2 and Layer 3 |
| Forwarding Rate | 1.44 Tbps |
| Switching Capacity | 1.44 Tbps |
| Latency | Less than 1 microsecond |
| Jumbo Frames | 9216 bytes |
| VLAN IDs | 4000 |
| MAC Address Table | 256,000 |
| Power Supply | Dual, Hot-swappable |
| Power Consumption | 350W |
| Dimensions (H x W x D) | 1.72 x 17.3 x 21.75 inches |
| Operating Temperature | 32??F to 104??F (0??C to 40??C) |
| Storage Temperature | -40??F to 158??F (-40??C to 70??C) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Management | CLI, SNMP, RMON, Telnet, SSH |
| SFlow | Supported |
| Warranty | Limited Lifetime Warranty |
