C1-N5672UP4FEX10GT
Model: C1-N5672UP4FEX10GT – Cisco Nexus 5000 Series Platform
Details: Cisco ONE N5672UP Chassis with 4 x 10GT FEXes with FETs
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
C1-N5672UP4FEX10GT Overview

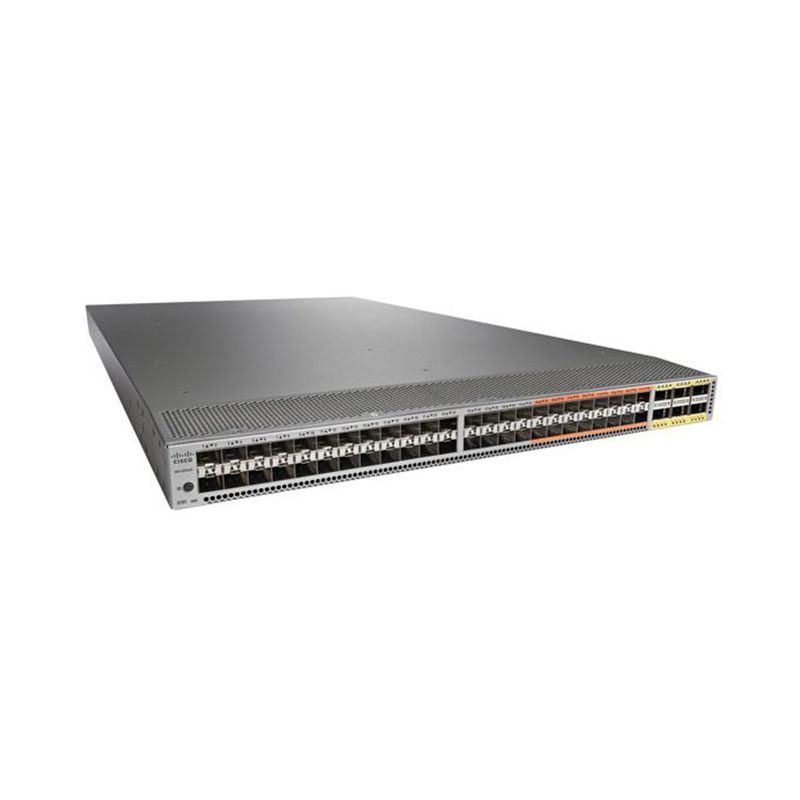

Quick Specs Figure 1 shows the appearance of C1-N5672UP4FEX10GT.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Model | C1-N5672UP4FEX10GT |
| Product Name | Cisco ONE N5672UP Chassis with 4 x 10GT FEXes with FETs |
| Form Factor | 1RU |
| Switch Ports | 48 x 1/10 Gigabit Ethernet SFP+ ports |
| Uplink Ports | 6 x 40 Gigabit Ethernet QSFP+ ports |
| FEX Ports | 4 x 10GT FEX ports |
| Power Supplies | Two redundant 750W PSUs |
| Cooling | Front-to-back airflow |
| Management Ports | 1 x RJ-45 console port, 1 x 10/100/1000 BASE-T management port, 1 x USB port |
| Performance | 1.44 Tbps switching capacity |
| Latency | Less than 1 microsecond |
| Flash Memory | 8 GB |
| RAM | 16 GB DDR3 |
| Forwarding Rate | 1080 Mpps |
| VLAN IDs | 4000 |
| QoS Queues | 8 queues per port |
| Power Consumption | 450W |
| MAC Addresses | 32,000 |
| Jumbo Frame Support | Up to 9216 bytes |
| Virtualization | VXLAN support |
