C1-N5K-C5672UP
Model: C1-N5K-C5672UP – Cisco Nexus 5000 Series Platform
Details: Cisco ONE Nexus 5672UP 1RU 32x10G SFP+16pxUP SFP+6x40G QSFP+
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
C1-N5K-C5672UP Overview

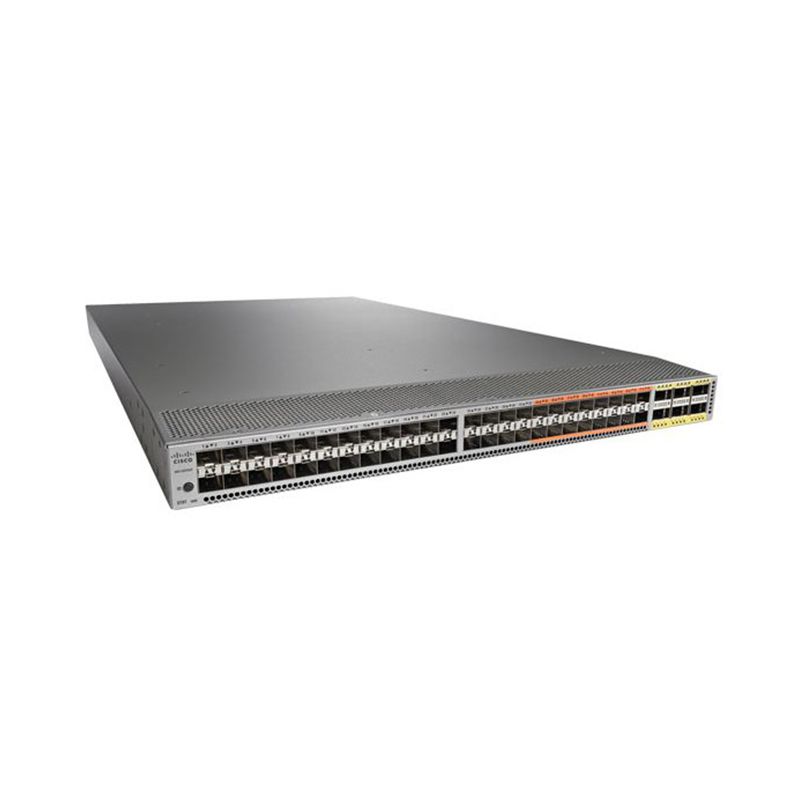

Quick Specs Figure 1 shows the appearance of C1-N5K-C5672UP.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Model | C1-N5K-C5672UP |
| Product Name | Cisco ONE Nexus 5672UP |
| Form Factor | 1RU |
| Interface Ports | 32 x 10G SFP+ |
| Unified Port SFP+ | 16 |
| 40G QSFP+ Ports | 6 |
| Switching Capacity | 1.44 Tbps |
| Forwarding Rate | 1000 Mpps |
| Power Supply | 1+1 Redundant |
| Cooling | Front-to-back airflow |
| Layer Support | Layer 2 and Layer 3 |
| VLAN IDs | 4094 |
| MAC Addresses | 128K |
| Jumbo Frame Support | Yes |
| Management | CLI, SNMP, RMON, XML |
| Operating Temperature | 32 to 104??F (0 to 40??C) |
| Storage Temperature | -40 to 158??F (-40 to 70??C) |
| Relative Humidity | 5% to 95% non-condensing |
| MTBF | 1,085,915 hours |
| Dimensions (DxWxH) | 30.0 x 17.3 x 1.72 inches |
