C1-N7706-B23S2E
Model: C1-N7706-B23S2E – Cisco Nexus 7000 Series Platform
Details: Cisco ONE Nexus 7706 Bundle (Chassis, 1xSUP2E, 3xFAB2), No Power Supplies
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
C1-N7706-B23S2E Overview

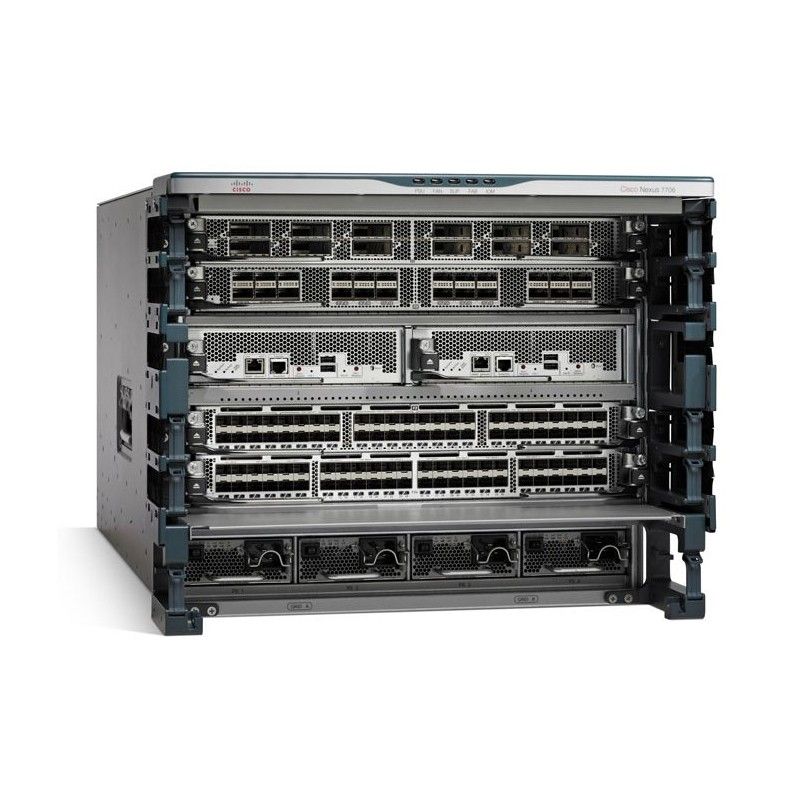

Quick Specs Figure 1 shows the appearance of C1-N7706-B23S2E.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Product Name | Cisco ONE Nexus 7706 Bundle (Chassis, 1xSUP2E, 3xFAB2) |
| Model Number | C1-N7706-B23S2E |
| Chassis | Cisco Nexus 7706 |
| Supervisor Engine | 1x SUP2E |
| Fabric Modules | 3x FAB2 |
| Power Supplies Included | No |
| Rack Units | 9 RU |
| Dimensions (H x W x D) | 15.4 x 17.3 x 21.9 inches |
| Ports | Varies with installed line cards |
| Performance | Up to 9.6 Tbps |
| Scalability | Up to 384 ports (1 Gigabit Ethernet or 10 Gigabit Ethernet) |
| Redundancy | Yes |
| Forwarding Rate | Up to 7.14 billion packets per second |
| Operating Temperature | 32 to 104??F (0 to 40??C) |
| Storage Temperature | -40 to 158??F (-40 to 70??C) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Airflow | Front-to-back |
| Power Requirements | Input voltage: 200-240 VAC |
| Compliance | RoHS, CE, UL, FCC |
| Warranty | 1 Year Limited Hardware Warranty |
