C1-N9K-C9516
Model: C1-N9K-C9516 – Cisco Nexus 9500 Series
Details: Cisco ONE Nexus 9516 Chassis with 16 linecard slots
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
C1-N9K-C9516 Overview

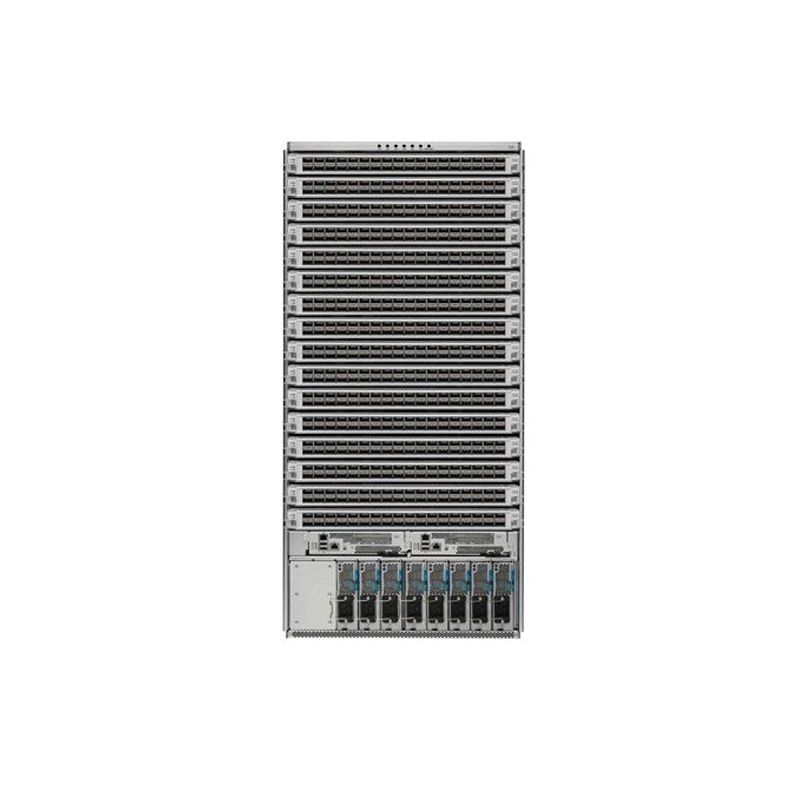

Quick Specs Figure 1 shows the appearance of C1-N9K-C9516.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Model | C1-N9K-C9516 |
| Form Factor | 19 RU |
| Linecard Slots | 16 |
| Switch Fabric Capacity | Up to 172.8 Tbps |
| Forwarding Capacity | Up to 5.12 Bpps |
| Redundant Power Supplies | Yes, supported |
| Power Supply Units | Up to 10 |
| Airflow | Front-to-back air flow |
| Operating Temperature Range | 0??C to 40??C |
| Storage Temperature Range | -40??C to 70??C |
| Relative Humidity (Operating) | 5% to 85% (non-condensing) |
| Relative Humidity (Non-Operating) | 5% to 95% (non-condensing) |
| Mounting Options | Rack Mountable |
| Management Interfaces | RJ-45 and USB |
| Software Compatibility | Cisco NX-OS |
| Supported Protocols | IPv4, IPv6, MPLS, VXLAN |
| Virtualization Support | Yes |
| Dimensions (H x W x D) | 30.15 in x 17.45 in x 33.25 in |
| Warranty | 1 Year Limited Hardware Warranty |
| Compliance | RoHS, FIPS, and Common Criteria |
