C1-N9KC93180FXB18Q
Model: C1-N9KC93180FXB18Q – Cisco Nexus 9000 Series Platform
Details: Cisco ONE 2 Nexus 93180YC-FX with 8 QSFP-40G-SR-BD
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
C1-N9KC93180FXB18Q Overview

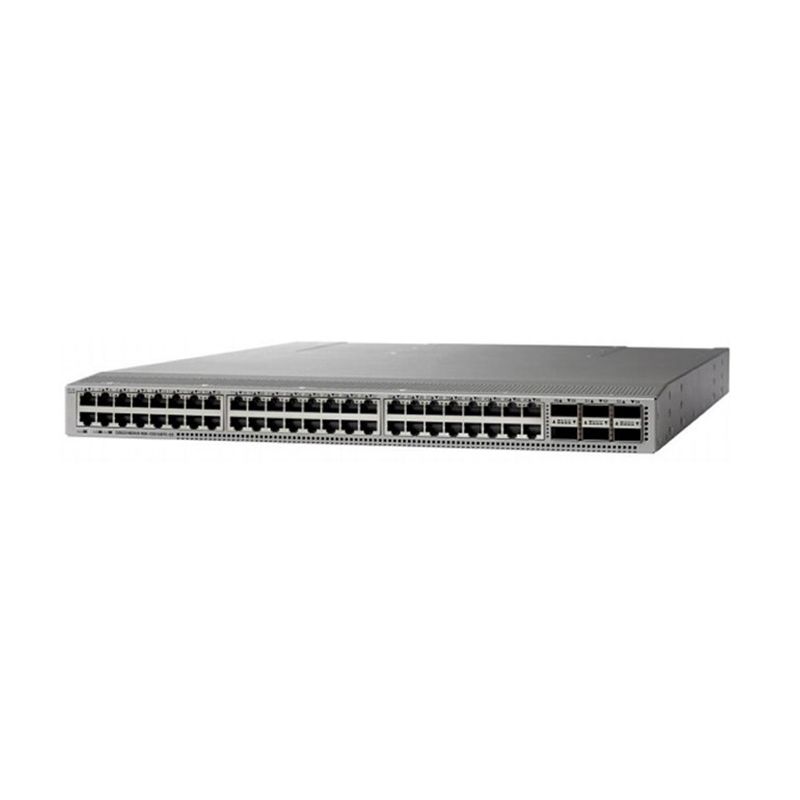

Quick Specs Figure 1 shows the appearance of C1-N9KC93180FXB18Q.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Model | C1-N9KC93180FXB18Q |
| Product Name | Cisco ONE 2 Nexus 93180YC-FX with 8 QSFP-40G-SR-BD |
| Switching Capacity | 3.6 Tbps |
| Forwarding Rate | 2.6 Bpps |
| Interfaces | 48 x 10/25-Gbps ports and 6 x 40/100-Gbps QSFP28 ports |
| Performance | Line-rate Layer 2 and Layer 3 features |
| Layer Support | Layer 2 and Layer 3 |
| MAC Address Table Size | 32,000 entries |
| Jumbo Frames | Up to 9216 bytes |
| Power Supply | Dual redundant, hot-pluggable, and hot-swappable AC power supplies |
| Power Consumption | Typical 175W, Maximum 260W |
| Dimensions (H x W x D) | 1.72 in. x 17.3 in. x 22.5 in. |
| Temperature Range | Operating: 32 to 104??F (0 to 40??C), Non-operating: -40 to 158??F (-40 to 70??C) |
| Humidity Range | Operating: 10% to 90% noncondensing, Non-operating: 5% to 95% noncondensing |
| MTBF | 253,560 hours |
| Warranty | Limited lifetime hardware warranty |
| QoS | Quality of Service (QoS) for traffic prioritization |
| Security Features | Advanced security features and encryption |
| Management | Cloud-managed through Cisco’s interface |
| Fan Configuration | Hot-swappable fan trays |
| Compliance | Complies with IEEE standards and environmental standards |
