Name: C1101-4PLTEPWX
SKU: C1101-4PLTEPWX
Availability: OutOfStock

C1101-4PLTEPWX

$0.00

Model: C1101-4PLTEPWX – Cisco Router ISR 1100
Details: ISR 1101 4 Ports LTE, X WiFi domain
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Out of stock

C1101-4PLTEPWX Overview

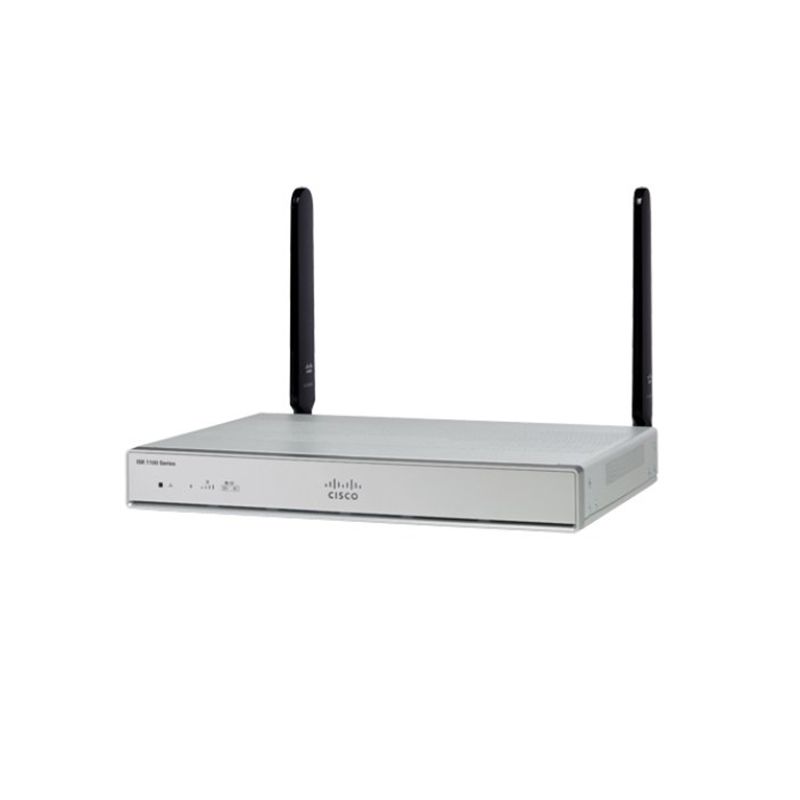

Quick Specs Figure 1 shows the appearance of C1101-4PLTEPWX.

Table 1 shows the Quick Specs.

GE	4
GE/SFP combo	N/A
ADSL2/VDSL2+	N/A
LTE Advanced (CAT6)	N/A
802.11ac	· 2×2 SU-MIMO/MU-MIMO with two spatial streams.· Maximal Ratio Combining (MRC).· 20-, 40-, and 80-MHz channels.· PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz).· Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx).· 802.11 Dynamic Frequency Selection (DFS).· Cyclic Shift Diversity (CSD) support.
PoE	N/A
PoE+	N/A
Integrated USB 3.0 AUX/console	Yes (No AUX)
Pluggable	Yes (All)
Memory (default and maximum)	DRAM: 4 GBFlash: 4 GB
Console	· Micro USB console (USB 3.0).
Mini-USB port (reserved)	· Micro-USB port to support remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0).
Software	· Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5(8.7 for 1101 series) MR1 or later.
External power supply	· AC input voltage: Universal 100 to 240 VAC.· Frequency: 50 to 60 Hz.· Maximum output power: 66W (default).· Output voltages: 12 VDC.· Optional PoE and PoE+:◦ Single 150W power supply required for Cisco 1100-8P series router◦ Single 115W power supply required for Cisco 1100-4P series router· External output voltage: 48 VDC.
USB 3.0	· USB devices supported:◦ USB eTokens and USB flash memory· Note: Devices USB 3.0 supports to be connected externally.
LEDs	· WWAN (green/amber).· SIM status (green/amber).· Received signal strength indication (RSSI) bar (green).· 3G/LTE service (green/amber).· GPS (green/amber).· Speed and link for Gigabit Ethernet WAN port (green).· Speed and link for all Fast Ethernet LAN ports (green).
Physical dimensions(H x W x D)	1.1 x 7.5 x 6.0 in. (27.9 x 190.5 x 152.4 mm) (includes rubber feet models)
Weight	3.34 lb (1.51kg)
Environmental operating range	· Nonoperating temperature: -4° to 149°F (-0° to 65°C).· Nonoperating humidity: 5% to 95% relative humidity (noncondensing).· Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m).· Operating temperature: 32° to 113°F (0° to 45°C).· Operating humidity: 10% to 85% relative humidity (noncondensing).· Operating altitude: 0 to 10,000 ft (0 to 3000 m).
