C1109-2PLTEGB
Model: C1109-2PLTEGB – Cisco Router ISR 1100
Details: Cisco ISR1109-2P router, LTE, GB
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
C1109-2PLTEGB Overview

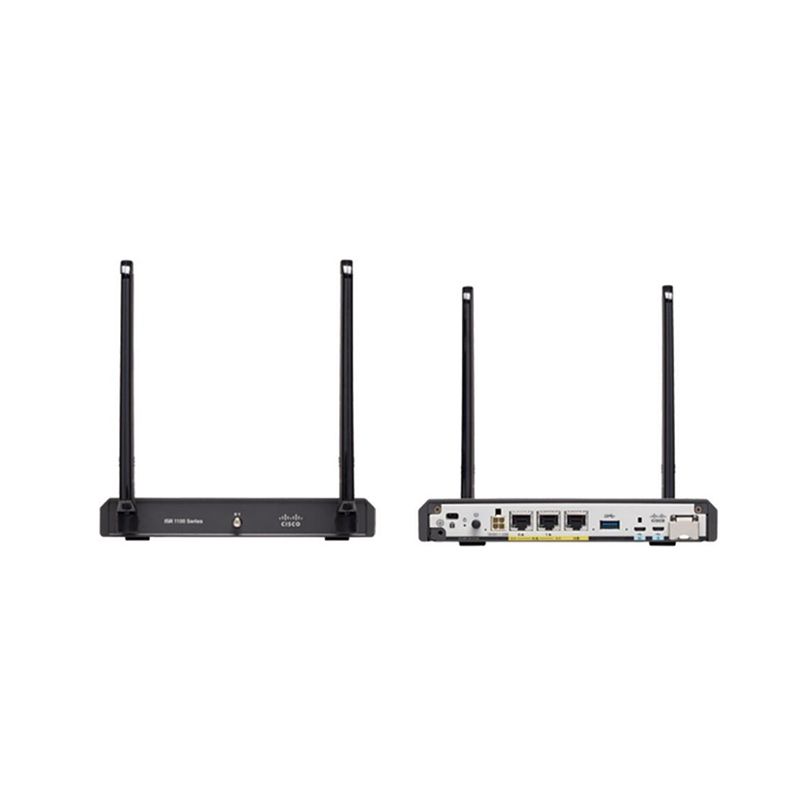

Quick Specs Figure 1 shows the appearance of C1109-2PLTEGB.
Table 1 shows the Quick Specs.
| Description | Cisco ISR1109-2P router, LTE, GB |
| WAN GE | 1 |
| WAN GE/SFP combo | N/A |
| ADSL2/VDSL2+ | N/A |
| LTE Advanced (CAT6) | N/A |
| 802.11ac | N/A |
| LAN GE | 2 |
| PoE or PoE+ | N/A |
| Integrated USB 3.0 AUX/console | Yes (No AUX) |
| Pluggable | N/A Same CAT4 technology as PLTE-GB |
| Dimensions (H x W x D) | 1.15 x 7.6 x 6.3 in. (29.2 x 193.0 x 160.0mm) (includes rubber feet models) |
| AC Power Input voltage | Universal 100 to 240 VAC |
| Frequency | 50-60 Hz |
| Maximum output power | 30W (default) |
| Output voltages | 12 VDC |
| Console port | Micro USB console (USB 3.0) |
| Default and maximum DRAM | 4GB |
| Default and maximum flash | 4GB |
| Approvals and compliance | Emission47 CFR Part 15CISPR 32 Edition 2EN 300 386 V1.6.1EN 55032:2012/ AC:2013EN 55032:2015EN61000-3-2 2014EN61000-3-3: 2013ICES-003 ISSUE 6:2016KN 32: 2015V-2/2015.04V-3/2015.04TCVN 7189: 2009CNS13438: 2006IEC 60950-1EN 60950-1UL 60950-1CSA C22.2 No. 60950-1ImmunityCISPR24: 2010 + A1: 2015EN 300 386 V1.6.1EN55024: 2010 + A1: 2015KN35: 2015TCVN 7317: 2003 |
| Operating humidity | 10% to 85% relative humidity (noncondensing) |
| Operating temperature | 32° to 104°F (0° to 40°C) |
| Nonoperating temperature | -4° to 149°F (-0° to 65°C) |
| Nonoperating humidity | 5 to 95% relative humidity (noncondensing) |
| Nonoperating altitude | 0 to 15,000 ft (0 to 4570m) |
