C1113-8PLTEEA
Model: C1113-8PLTEEA – Cisco Router ISR 1100
Details: ISR 1100 G.FAST GE SFP Router w/ LTE Adv SMS/GPS EMEA & NA
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
C1113-8PLTEEA Overview

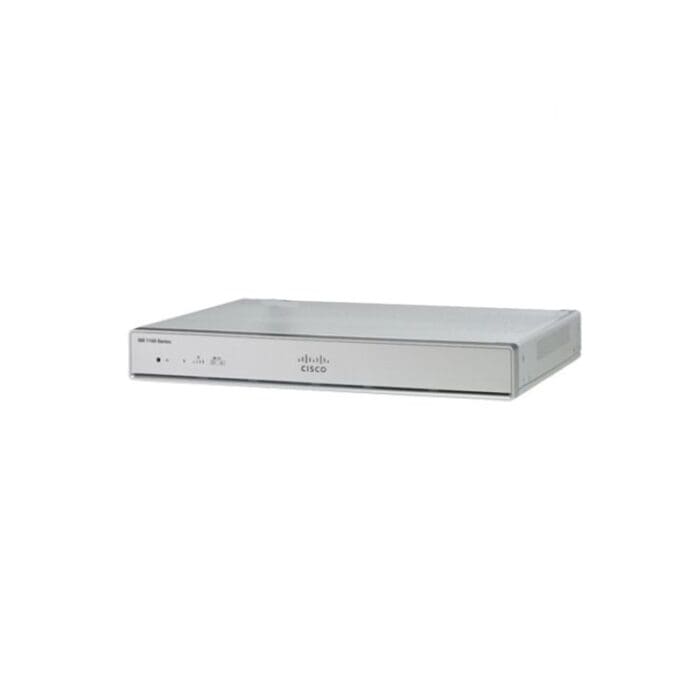

Quick Specs Figure 1 shows the appearance of C1113-8PLTEEA.
Table 1 shows the Quick Specs.
| GE | 8 |
| GE/SFP combo | 1 |
| ADSL2/VDSL2+ | 1 G.FAST(Annex A) |
| LTE Advanced (CAT6) | 1 EMEAR & North America |
| 802.11ac | N/A |
| PoE | 4 |
| PoE+ | 2 |
| Integrated USB 3.0 AUX/console | Yes |
| Pluggable | N/A |
| Dimensions (H x W x D) | 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet on LTE models) |
| Memory (default and maximum) | DRAM: 4 GB, Flash: 4 GB |
| Console | · Micro USB console (USB 3.0). |
| Mini-USB port (reserved) | · Micro-USB port to support remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0). |
| Standard safety certifications | · UL 60950-1.and EN 60950-1.· CAN/CSA C22.2 No. 60950-1.· CB to IEC 60950-1, 2nd edition with all group differences and national deviations. |
| EMC emissions | · EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, and EN61000-6-1. |
| EMC immunity | · EN55024/CISPR24, (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11), and EN300-386. |
| Radio immunity | · EN301 489-1, EN 301 489-7, and EN301 489-24. |
| Cellular radio | · EN 301 908-1, EN 301 908-2, EN 301 511, 47 CFR Part 22, 47 CFR Part 24, and EN 301 908-13. |
| Environmental operating range | · Nonoperating temperature: -4° to 149°F (-0° to 65°C).· Nonoperating humidity: 5% to 95% relative humidity (noncondensing).· Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m).· Operating temperature: 32° to 104°F (0° to 40°C). C1101 support 32° to 113°F (0° to 45°C).· Operating humidity: 10% to 85% relative humidity (noncondensing).· Operating altitude: 0 to 10,000 ft (0 to 3000 m). |
