Name: C3945-VSEC/K9
SKU: C3945-VSEC/K9
Availability: InStock

C3945-VSEC/K9

Model: C3945-VSEC/K9 Cisco 3900 Router Voice Security Bundle
Details: Cisco 3945 Voice Sec. Bundle, PVDM3-64, UC and SEC License P
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

C3945-VSEC/K9 Overview

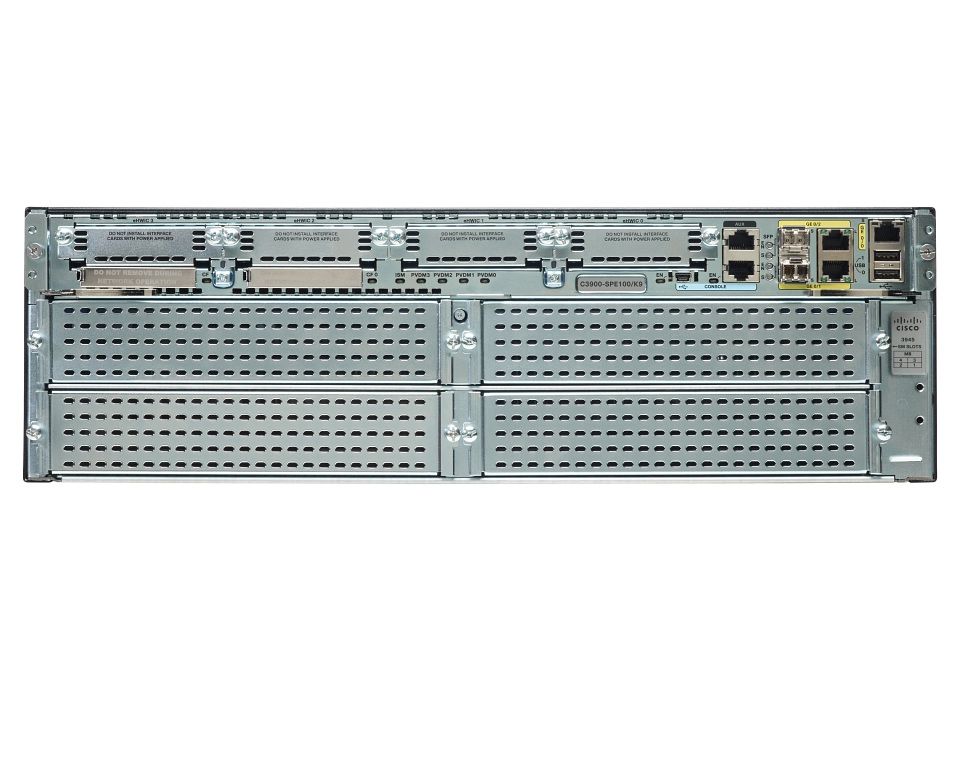

Quick Specs Figure 1 shows the appearance of C3945-VSEC/K9.

Table 1 shows the Quick Specs.

Device Type	Router
Form Factor	Desktop – modular – 3U
Bundle	Cisco 3945 Voice Sec. Bundle, PVDM3-64, UC and SEC License PAK
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Capacity	Cisco Unified Communications Manager Express sessions : 350Cisco Unified SRST sessions : 1200
Network / Transport Protocol	IPSec, PPPoE, L2TPv3
Routing Protocol	OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)
Remote Management Protocol	SNMP, RMON
Encryption Algorithm	SSL
Features	Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN)
Compliant Standards	CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, CS-03, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438
DRAM Memory	1 GB (installed) / 2 GB (max)
Flash Memory	256 MB (installed) / 8 GB (max)
LED Status Lights Indicators	Link activity, power
Type	Voice / fax module
Digital Ports Qty	64
Voice Codecs	G.711, G.722, G.723.1, G.728, G.729, G.729a, G.729ab, G.726
Router Interfaces	3 x 10Base-T/100Base-TX/1000Base-T – RJ-45Management : 1 x console – RJ-45Management : 1 x console – mini-USB Type BSerial : 1 x auxiliary – RJ-45Hi-Speed USB : 2 x 4 PIN USB Type A2 x SFP (mini-GBIC)
Expansion Slots Total (Free)	4 ( 4 ) x EHWIC4 ( 3 ) x PVDM2 ( 1 ) x CompactFlash Card1 ( 1 ) x Expansion Slot4 ( 4 ) x service module (SM)1 ( 1 ) x ISM
Power Device	Power supply – internal
Voltage Required	AC 120/230 V ( 50/60 Hz )
Width	43.8 cm
Depth	47.6 cm
Height	13.3 cm
Weight	17.7 kg
IOS Software Included	Cisco IOS Security
Software Included	Cisco IOS Unified Communications

Get more information
Do you have any question about the C3945-VSEC/K9?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices

100% Quality Assurance: All items are ORIGINAL and GENUINE only. Item conditions are “New Sealed” or “Used / Refurbished”. Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support: Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee: You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured
