C4KX-PWR-750AC-R=
Model: C4KX-PWR-750AC-R= Catalyst 4500X power supply
Details: Catalyst 4500X 750W AC front to back cooling power supply
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
C4KX-PWR-750AC-R= Overview

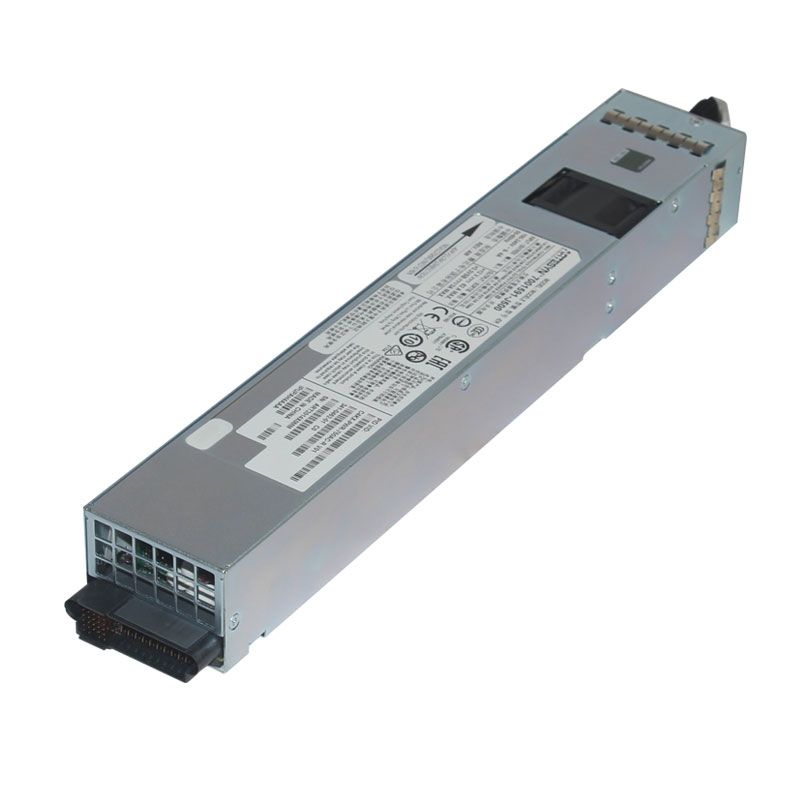

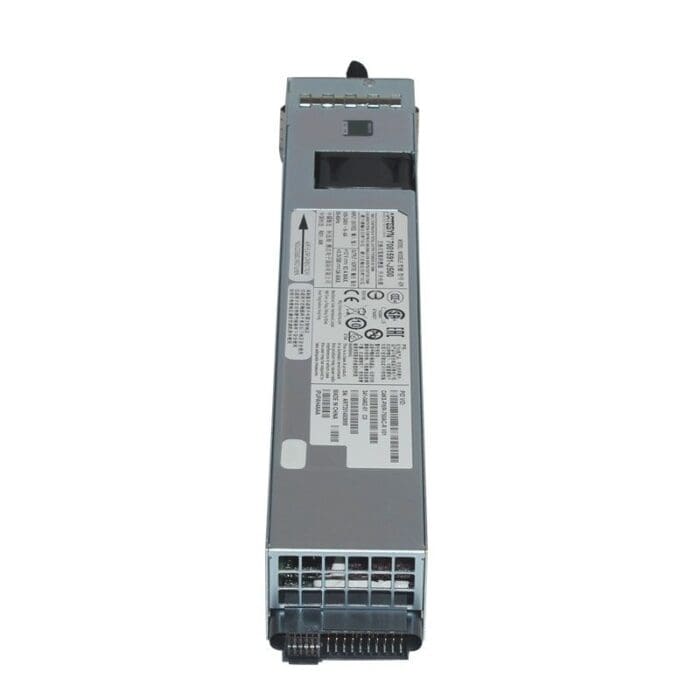

Quick Specs Figure 1 shows the appearance of C4KX-PWR-750AC-R=.
Table 1 shows the Quick Specs.
| AC-input type | Autoranging input with power factor correction (PFC) |
| AC-input voltage | 100 to 240Â VAC (115/230Â VAC nominal) single-phase |
| AC-input current | •11 A @ 100 VAC (max)•6 A @ 200 VAC (max) |
| AC-input frequency | 47 to 63Â Hz (50/60Â Hz nominal) |
| Branch circuit requirement | Each chassis power supply should have its own dedicated, fused-branch circuit:•For North America—15 A•For International—Circuits should be sized to local and national codes•All AC power supply inputs are fully isolated.•Source AC can be out of phase between multiple power supplies in the same chassis, which means that PS1 can be operating from phase A and PS2 can be operating from phase B. |
| Power supply output capacity | 750 W |
| Power supply output | •12 VDC @ 62 A•3.3 VDC @ 3 A |
| Output holdup time | 16 ms minimum (20Â ms @ 60% load) |
| BTU (total output)1 | 1122Â BTU/hour (nominal)1365Â BTU/hour (max) |
| MTBF | 1,045,265 |
| AC-input power supply dimensions(H x W x D) | 1.57 x 2.15 x 14.28Â in(3.99 x 5.46 x 36.27Â cm) |
| Weight | 2Â lb (0.91Â kg) |
