C6807-XL

Original price was: $9,133.00.Current price is: $8,676.35.

Model: Cisco Catalyst 6807-XL Modular Switch
Details: Cisco Catalyst 6800 switch chassis, 10RU, Super 2T Engine, 880Gbps/slots, 11.4Tbps system bandwidth, no PS, no Fan Tray
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: C6807-XL Categories: , ,
Description

C6807-XL Overview

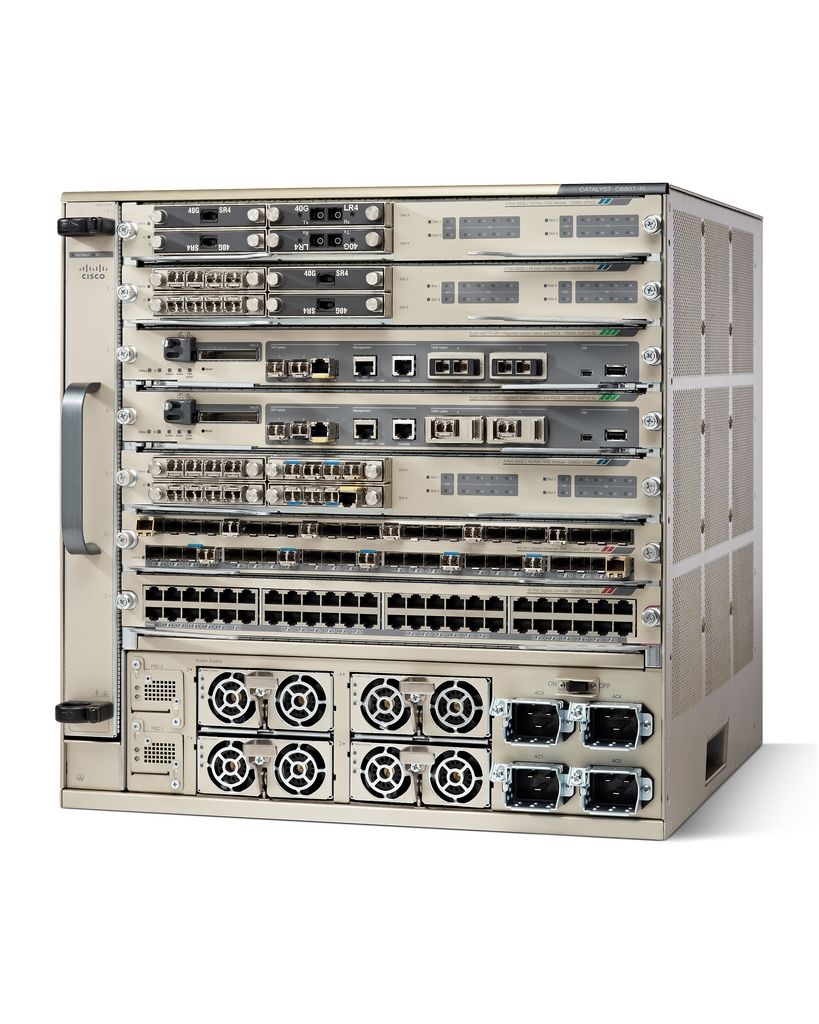

Quick Specs Figure 1 shows the appearance of C6807-XL.

Table 1 shows the Quick Specs.

Number of Slots 7
Number of Supervisor Engine Slots 2
Number of Module Slots 5
Supervisor Compatibility C6800-SUP6TC6800-SUP6T-XLVS-S2T-10GVS-S2T-10G-XL
Module Compatibility C6800-32P10GC6800-32P10G-XLC6800-16P10GC6800-16P10G-XLC6800-8P10GC6800-8P10G-XLWS-X6904-40G-2TWS-X6904-40G-2TXLWS-X6908-10G-2TWS-X6908-10G-2TXLWS-X6816-10G-2TWS-X6816-10G-2TXLWS-X6816-10T-2TWS-X6816-10T-2TXLWS-X6848-SFP-2TWS-X6848-SFP-2TXLWS-X6824-SFP-2TWS-X6824-SFP-2TXLWS-X6848-TX-2TWS-X6848-TX-2TXLWS-X6704-10GE (with CFC or DFC4)WS-X6748-GE-TX (with CFC or DFC4)WS-X6748-SFP (with CFC or DFC4)WS-X6724-SFP (with CFC or DFC4)WS-X6716-10G-3C (with DFC4)WS-X6716-10G-3CXL (with DFC4XL)WS-X6716-10T-3C (with DFC4)WS-X6716-10T-3CXL (with DFC4XL)NAM3ASA-SMWiSM2ACE30
Performance The chassis is capable of up to 440 Gbps per slotThe performance of the individual modules is available in the module data sheets.
Power Supply Compatibility AC: 3000W (up to 4 power supplies)
Online Insertion and Removal (OIR) OIR of the following components: supervisor engines, line card modules, power supplies, and fan tray
MIBs Check the supervisor engine data sheet
Network Management Check the supervisor engine data sheet
Inches 17.45 x 17.37 x 18.1
Centimeters 44.3 x 44.1 x 46
Rack units (RU) 10
Chassis Only (lbs) 62
Fully Configured (lbs) 185
Input Voltage 100 to 240 VAC-48 to -60 VDC
Safety UL 60950 Second EditionCAN/CSA-C22.2 No. 60950 Second EditionEN 60950 Second EditionIEC 60950 Second EditionAS/NZS 60950
EMC FCC Part 15 (CFR 47) Class AVCCI Class AEN55022 Class ACISPR 22 Class ACE markingAS/NZS 3548 Class AETS300 386EN55024EN61000-6-1EN50082-1
ETSI ETS 300 019 Storage Class 1.1ETS 300 019 Transportation Class 2.3ETS 300 019 Stationary Use Class 3.1
Operating Temperature 32°F to 104°F (0 to 40°C)
Storage Temperature -4 to 149°F (-20 to 65°C)
Thermal Transition 0.5°C per minute (hot to cold)0. 33°C per minute (cold to hot)
Relative Humidity Ambient (noncondensing) operating: 5% to 90%Ambient (noncondensing) nonoperating and storage: 5% to 95%
Operating Altitude Certified for operation: 0 to 6500 ft (0 to 2000 m)Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m)
