C8300-2N2S-6T
Model: C8300-2N2S-6T – Cisco Catalyst 8300 Series Edge Platforms Series
Details: C8300 2RU w/ 1G WAN (2 SM and 2 NIM slots, and 6 x 1-Gigabit Ethernet ports)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
C8300-2N2S-6T Overview

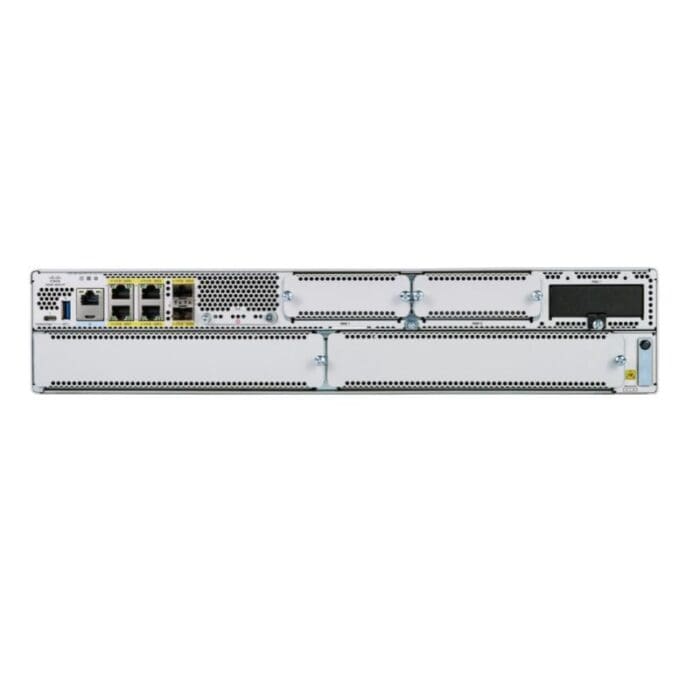

Quick Specs Figure 1 shows the appearance of C8300-2N2S-6T.
Table 1 shows the Quick Specs.
| Description | C8300 2RU w/ 1G WAN (2 SM and 2 NIM slots, and 6 x 1-Gigabit Ethernet ports) |
| Multicore processors | Intel x86 CPU with 8 GB memory default |
| Embedded IPsec VPN hardware acceleration | Up to 5 Gbps of IPSec Internet Mix (IMIX) traffic |
| Integrated Gigabit Ethernet ports | 6 built-in 10/100/1000/10G Ethernet ports for WAN or LAN2 SFP Ethernet ports, 4 RJ45 ports |
| Flash memory support | 8-GB flash |
| Modularity and form factor | 1RU and 2RU form factorSupports SM, NIM, and Pluggable Interface Module (PIM) slots |
| 10G port density | – |
| 1G port density | 6 |
| Slots | 2 SM2 NIM1 PIM |
| DRAM | 8 GB |
| Storage (M.2 SSD) default | 16 GB |
| SD-WAN IPsec Throughput (1400Bytes, clear text) | Up to 1.9Gbps |
| SD-WAN IPsec Throughput (IMIX*, clear text**) | 1.75Gbps |
| SD-WAN Overlay Tunnels scale | 6000 |
| IPv4 Forwarding Throughput (1400Bytes) | Up to 19.7Gbps |
| IPsec Throughput (1400Bytes, clear text**) | Up to 1.9Gbps |
| Number of IPsec SVTI Tunnels | 4000 |
| Number of ACLs per system | 4000 |
| Number of IPv4 ACEs per system | 72K |
| Number of IPv4 Routes | 1.6M w/ default 8GB, up to 4M w/ 32GB |
| Number of IPv6 Routes | 1.5M w/ default 8GB, up to 4M w/ 32GB |
| Number of Queues | 16K |
| Number of NAT Sessions | 1.2M w/ default 8GB, up to 2M w/ 32GB |
| Number of Firewall Sessions | 512K |
| Number of VRFs | 4000 |
