C8S45A
Model: C8S45A – Brocade 16Gb/16c Embedded SAN Switch
Details: Brocade 16Gb/16c Embedded SAN Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
C8S45A Overview

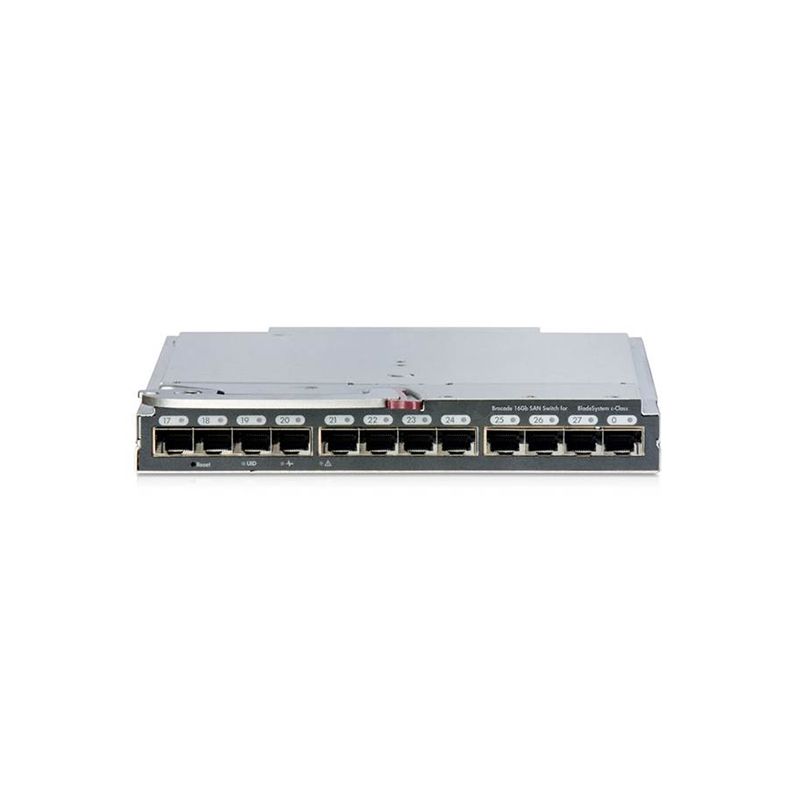

Quick Specs Figure 1 shows the appearance of C8S45A.
Table 1 shows the Quick Specs.
| Fibre Channel ports | 16 Internal (downlink) ports; 12 External (uplink) ports – universal (E, F, N, D) ports16/16c SAN Switch model: (16) 16 Gb ports in any internal/external port combination enabled16/28c SAN Switch models: 16 internal 16Gb ports and 12 external 16 Gb auto-sensing ports enabled |
| Performance | 16 Gbps line speed, full duplex |
| Switch core | Non-blocking |
| Fabric latency | 700 nSec. Latency increases as input port speed is lower than the output port speed. |
| Maximum frame size | 2112-byte payload |
| Classes of service | Class 2, Class 3, Class F (inter-switch frames) |
| Port types | D_Port (Diagnostic port), E_Port, F_Port; optional port type controlBrocade Access Gateway mode: F_Port and NPIV-enabled N_Port |
| Data traffic types | Fabric switches supporting unicast |
| Media types | Hot-pluggable, B-Series Branded Small Form Factor Pluggable (SFP), LC connector; Short-Wave Laser (SWL), Long-Wave Laser (LWL); Extended Long-Wave Laser (ELWL); distance depends on fiber-optic cable and port speed. Supports SFP (4/2/1 Gbit/sec) and/or SFP+ (8/4/2 Gbit/sec) optical transceivers. |
| Laser | Short-wave, long-wave, and extended long wave laser transceivers (SFP’s) are supported |
| Fabric services | Simple Name Server, Registered State Change Notification (RSCN). Includes Advanced WebTools Enhanced group Management and Advanced Zoning. Optional fabric services include: Adaptive Networking, Fabric Watch, ISL Trunking, Advanced Performance Monitoring, and Extended Fabrics. |
| Options | SFP media, port upgradeable licensing, advanced management software licensing |
| Supported software | Telnet, SNMP (FE MIB, FC Management MIB), HPE Systems Insight Manager, HPE Storage Essentials, HPE Onboard Administrator for BladeSystem, Advanced WebTools, Enhanced Group Management, , Advanced Zoning, SAN Network Advisor, Fabric Watch, and Advanced Performance Monitoring |
| Management access | WebTools, SMI-s provider, SNMP, Telnet, and Secure Telnet |
| Diagnostics | Cable diagnostic (D_Port), including electrical/optical loopback, link traffic/latency/distance |
| Dimensions | Depth |
| Height | 1.1 in. |
| Width | 7.59 in. |
| Weight | Approx. 3.3 lb – without media |
| Environment | System Inlet Temperature |
| Non-operating | Half-sine-wave shock, 140 G, 2 ms duration, in each direction of three mutually perpendicular axes; and square-wave shock up to 80 G, 180 inches/s velocity change, in each direction of three mutually perpendicular axes. |
| Relative Humidity | Operating |
| Altitude | Operating |
| Vibration | Operating |
| Shock | Operating |
