-5%
C9200-24T-A
Model: C9200-24T-A – Cisco Switch Catalyst 9200
Details: Catalyst 9200 24-port Data Switch, Network Advantage
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
C9200-24T-A Overview

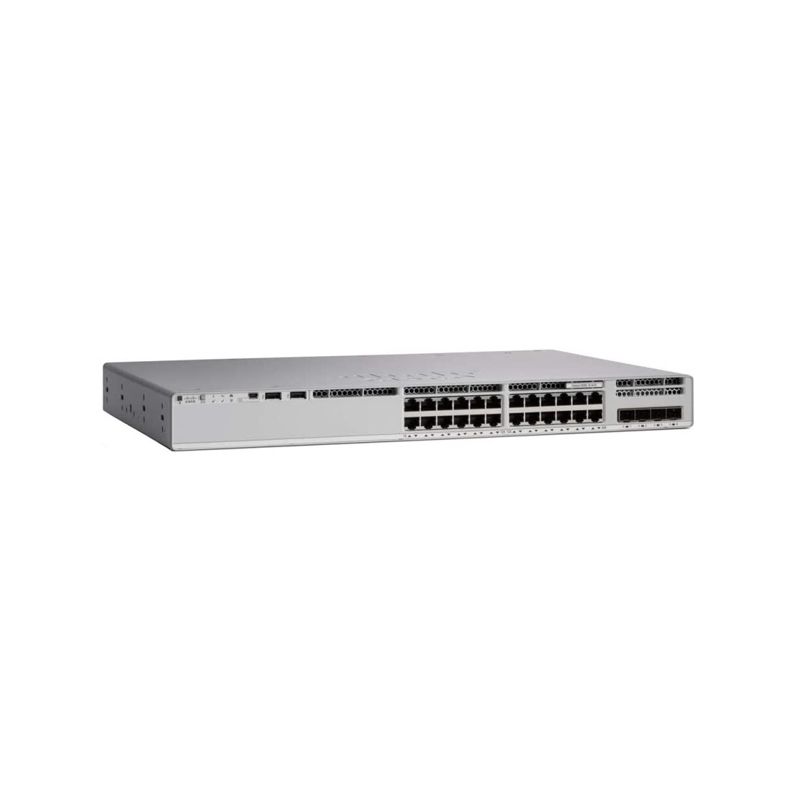

Quick Specs Figure 1 shows the appearance of C9200-24T-A.
Table 1 shows the Quick Specs.
| Downlinks total 10/100/1000 or PoE+ copper ports | 24 ports data |
| Uplink configuration | Modular uplink options |
| Default primary AC power supply | PWR-C6-125WAC |
| Fans | FRU redundant |
| Software | Network Advantage |
| Chassis Dimensions | 1.73 x 17.5 x 13.8 in4.4 x 44.5 x 35.0 cm |
| Virtual Networks | 4 |
| Stacking bandwidth | 160 Gbps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 14,000 (10,000 direct routes and 4,000 indirect routes) |
| IPv4 routing entries | 4,000 |
| IPv6 routing entries | 2,000 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,600 |
| Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| DRAM | 4 GB |
| Flash | 4 GB |
| VLAN IDs | 4096 |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Jumbo frames | 9198 bytes |
| Wireless bandwidth per switch | Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model |
| Switching capacity | 128 Gbps |
| Forwarding rate | 190.4 Mpps |
| Mean time between failures (hours) | 587,800 |
Get more information
Do you have any question about the C9200-24T-A?
Contact us now via Live Chat or sales@metafinitivetech.com
