-5%
C9300-24T-E
Model: C9300-24T-E – Cisco Switch Catalyst 9300
Details: Cisco Catalyst 9300 24-port data only, Network Essentials, Cisco 9300 switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
C9300-24T-E Overview

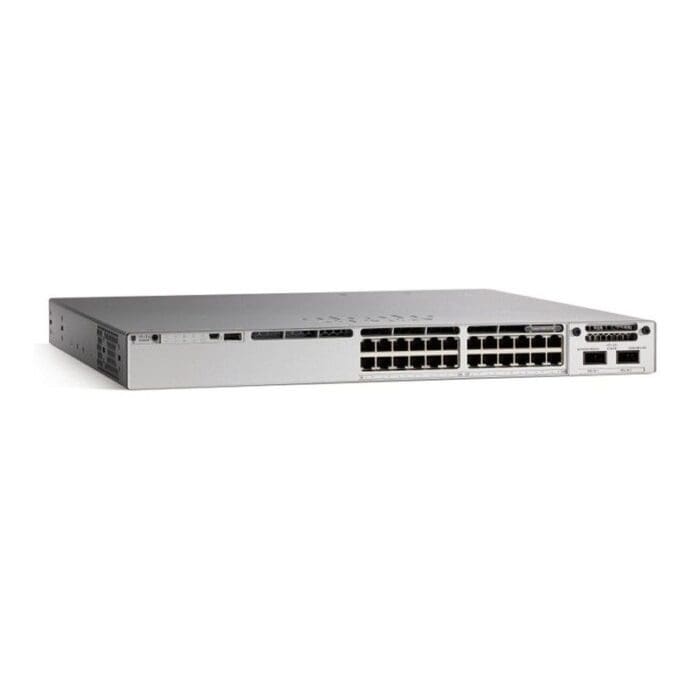

Quick Specs Figure 1 shows the appearance of C9300-24T-E.
Table 1 shows the Quick Specs.
| Part Number | C9300-24T-E |
| Product Description | Catalyst 9300 24-port data only, Network Essentials |
| Total 10/100/1000 or Multigigabit copper ports | 24 |
| Default AC power supply | 350W AC |
| Available PoE power | — |
| Cisco StackWise-480 | Yes |
| Cisco StackPower | Yes |
| Default power supply | PWR-C1-350WAC-P/2 |
| Switching capacity | 208 Gbps on 24-port Gigabit Ethernet model |
| Stacking bandwidth | 480 Gbps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
| IPv4 routing entries | 32,000 |
| IPv6 routing entries | 16,000 |
| Multicast routing scale | 8000 |
| QoS scale entries | 5120 |
| ACL scale entries | 5120 |
| Packet buffer per SKU | 16 MB buffer for 24- or 48-port Gigabit Ethernet models |
| FNF entries | 64,000 flow on 24- and 48-port Gigabit Ethernet models |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4000 |
| Total Switched Virtual Interfaces (SVIs) | 2000 |
| Jumbo frames | 9198 bytes |
| Total routed ports per 9300 Series stack | 208 |
| Wireless bandwidth per switch | Up to 48 Gbps on 24-port Gigabit Ethernet model |
| Forwarding rate | 154.76 Mpps |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 Inches |
| Weight | 16.33 Pounds |
| Mean time between failures (hours) | 299,000 |
| Safety certifications | ● UL 60950-1● CAN/CSA-C222.2 No. 60950-1● EN 60950-1● IEC 60950-1● AS/NZS 60950.1● IEEE 802.3 |
| Electromagnetic emissions certifications | ● 47 CFR Part 15● CISPR22 Class A● EN 300 386 V1.6.1● EN 55022 Class A● EN 55032 Class A● CISPR 32 Class A● EN61000-3-2● EN61000-3-3● ICES-003 Class A● TCVN 7189 Class A● V-3 Class A● CISPR24● EN 300 386● EN55024● TCVN 7317 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
