C9300-24UXB-A
Model: C9300-24UXB-A – Cisco Catalyst 9300 Switch
Details: Catalyst 9300 Deep Buffer 24p mGig, UPOE, Network Advantage
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
C9300-24UXB-A Overview

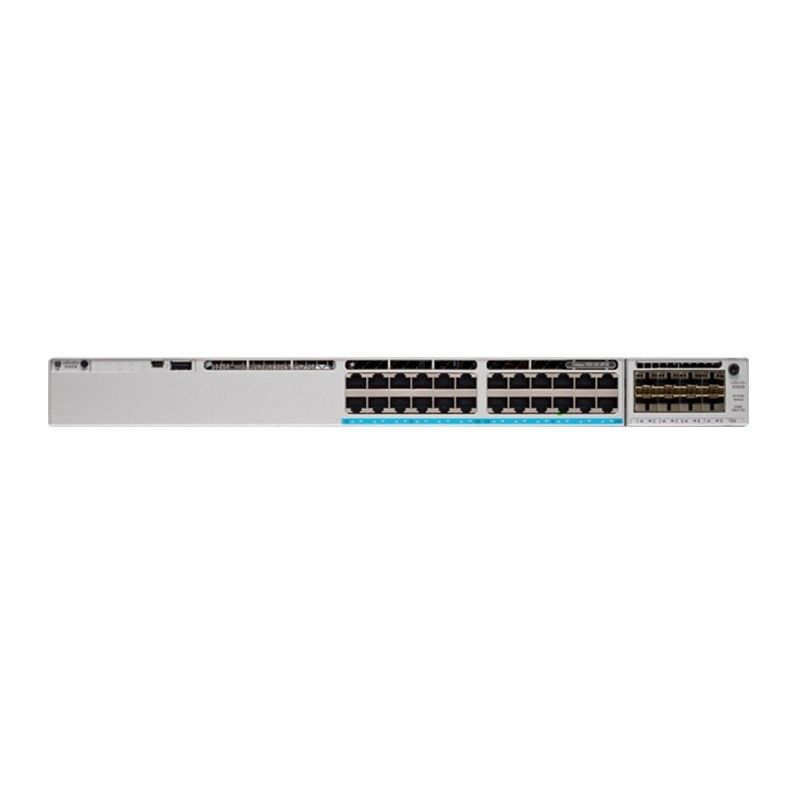

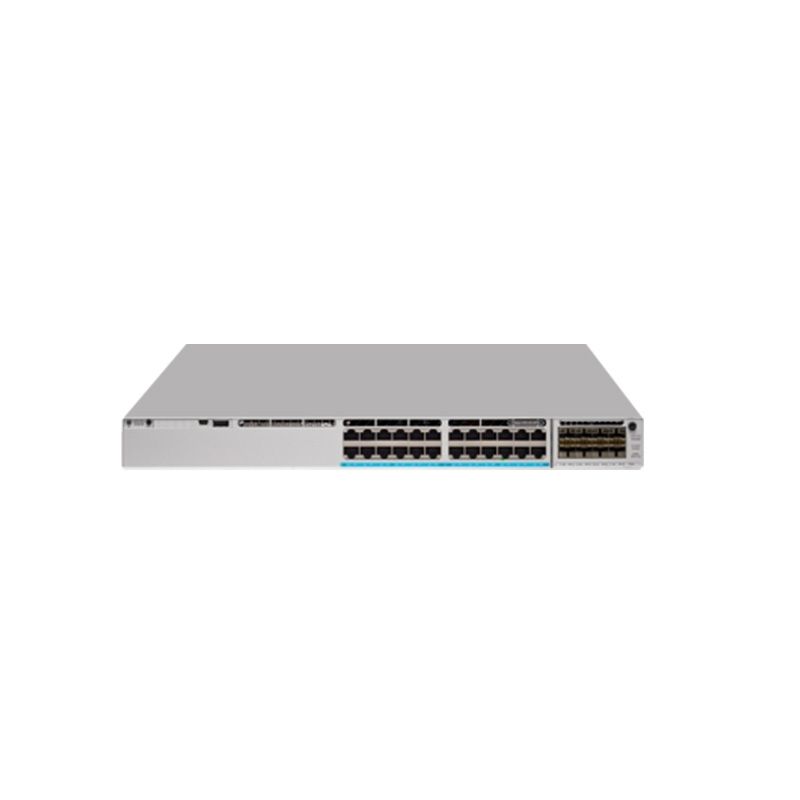

Quick Specs Figure 1 shows the appearance of C9300-24UXB-A.
Table 1 shows the Quick Specs.
| Product Description | Catalyst 9300 Deep Buffer 24p mGig, UPOE, Network Advantage |
| FRU Power Supply | Yes |
| FRU Fans | Yes |
| Modular Uplinks | Yes |
| Stacking Bandwidth Support | 480 Gbps |
| Cisco StackPower | Yes |
| Catalyst 9800 Embedded WLC | Yes (200 APs) |
| SD-Access Support | Yes (256 Virtual Networks) |
| Total 10/100/1000,Multigigabit copper or SFP Fiber | 24 Multigigabit Cisco UPOE (100M, 1G, 2.5G, 5G, or 10 Gbps) |
| Uplink Configuration | Modular Uplinks |
| Default AC power supply | 1100W AC |
| Available PoE power | 560W |
| Total number of MAC addresses | 64,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 64,000 |
| IPv6 routing entries | 32,000 |
| Multicast routing scale | 16,000 |
| QoS scale entries | 18,000 |
| ACL scale entries | 18,000 |
| Packet buffer per SKU | 32 MB buffer for 24- and 48-port Gigabit Ethernet models64 MB buffer for 24-port Multigigabit model (24UXB) |
| FNF entries | 128,000 flow on 24- and 48-port Gigabit Ethernet models256,000 flows on 24-port Multigigabit |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4094 |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Jumbo frames | 9198 bytes |
| Total routed ports per Catalyst 9300 Series stack | 448 |
| Switching capacity | 640 Gbps |
| Switching capacity with stacking | 1120 Gbps |
| Forwarding rate | 476.19 Mpps |
| Forwarding rate with stacking | 833.33 Mpps |
| Dimensions (H x W x D) inches | Chassis only |
| W/ Default Power Supply | 1.73 x 17.5 x 20.2 |
| W/ 1100W Power Supply | 1.73 x 17.5 x 20.2 |
| Mean Time Between Failures–MTBF (hours) | 288,520 |
| Acoustic noiseMeasured per ISO 7779 and declared per ISO 9296Bystander positions operating to an ambient temperature of 25°C | With AC power supply (with 24 PoE+ ports loaded for C9300 SKUs)• LpA: 45dB typical, 48 dB max• LwA: 5.6B typical, 5.9B maxWith AC power supply (with half the number of PoE+ ports loaded for C9300L SKUs)• LpA: 44dB typical, 47 dB max• LwA: 5.5B typical, 5.8B maxTypical: Noise emission for a typical configurationMaximum: Statistical maximum to account for variation in p |
| Connectors and cabling | • 1000BASE-T ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling• Multigigabit-T ports: RJ-45 connectors, 4-pair Cat 5E, Cat 6, Cat 6A UTP cabling• 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling• SFP transceivers: LC fiber connectors (single-mode or multimode fiber)• SFP+ transceivers: LC fiber connectors (single-mode or multimode fiber)• QSFP+ transceivers: MPO and LC fiber connectors (single-mode or multimode fiber)• QSFP+ connector• SFP+ connector• Cisco StackWise stacking ports: copper-based Cisco StackWise cabling• Cisco StackPower: Cisco proprietary power stacking cables• Ethernet management port: RJ-45 connectors, 4-pair Cat 5 UTP cabling• Management console port: RJ-45-to-DB9 cable for PC connections |
| Power connectors | • Customers can provide power to a switch by using the internal power at the back of the switch• Internal power supply connector: The internal power supply is an auto-ranging unit. It supports inputvoltages between 100 (115 for 1100WAC) and 240 VAC. Use the supplied AC power cord toconnect the AC power connector to an AC power outlet |
| Safety certifications | • UL 60950-1• CAN/CSA-C222.2 No. 60950-1• EN 60950-1• IEC 60950-1• AS/NZS 60950.1• IEEE 802.3 |
| Electromagnetic emissions certifications | • 47 CFR Part 15• CISPR22 Class A• EN 300 386 V1.6.1• EN 55022 Class A• EN 55032 Class A• CISPR 32 Class A• EN61000-3-2• EN61000-3-3• ICES-003 Class A• TCVN 7189 Class A• V-3 Class A• CISPR24• EN 300 386• EN55024• TCVN 7317• V-2/2015.04• V-3/2015.04• CNS13438• KN32• KN35• IEC 61000-6-1• EN 61000-6-1Additional Certifications for C9300L SKUs:• QCVN 118:2018/BTTTT• CISPR24/25• CISPR 32 Class A• VCCI-CISPR 32 Class A• EN55035 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
