C9300-48H-A
Model: C9300-48H-A – Cisco Catalyst 9300 Switch
Details: Catalyst 9300 48-port UPoE+, Network Advantage
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
C9300-48H-A Overview

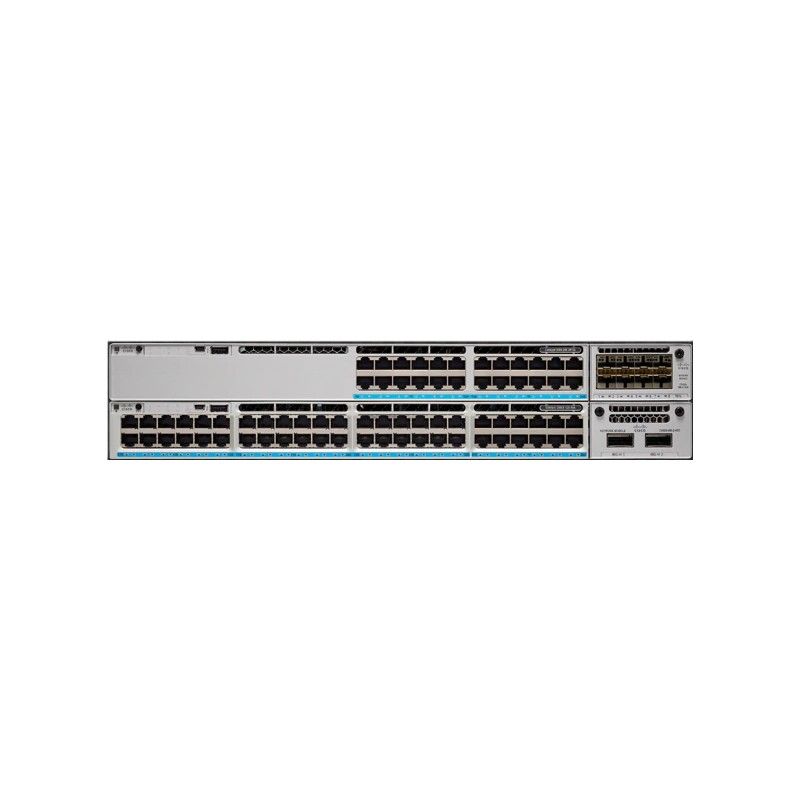

Quick Specs Figure 1 shows the appearance of C9300-48H-A.
Table 1 shows the Quick Specs.
| Product Code | C9300-48H-A |
| Description | Catalyst 9300 48-port UPoE+, Network Advantage |
| Device Type | Switch – 48 ports – L3 – managed – stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (UPOE+) |
| Power Over Ethernet (PoE) | UPOE+ |
| PoE Budget | 822 W |
| Performance | Switching capacity: 256 Gbps | Stacking bandwidth: 736 Gbps | Forwarding rate: 190.48 Mpps | Forwarding rate with stacking: 547.62 Mpps |
| Capacity | IPv4 routing table entries: 32000 | IPv6 routing table entries: 16000 | Flexible NetFlow entries: 64000 | VLAN IDs: 4000 | Switched virtual interfaces (SVIs): 2000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Encryption Algorithm | 128-bit AES |
| Features | DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1 |
| RAM | 8 GB |
| Flash Memory | 16 GB |
| Status Indicators | Status |
| Interfaces | 48 x 1000Base-T RJ-45 UPOE+ | 1 x USB 2.0 |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Power Device | Internal power supply – hot-plug |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Provided | 1100 Watt |
| Voltage Required | AC 120/230 V (50 – 60 Hz) |
| MTBF | 227,410 hours |
| Software Included | Cisco Network Essentials |
| Width | 17.5 in |
| Depth | 19.2 in |
| Height | 1.7 in |
| Service & Support | Limited warranty – replacement – lifetime – response time: next business day | Technical support – consulting – 90 days |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 – 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 – 90% (non-condensing) |
