-5%
C9300L-24UXG2Q-10E
Model: C9300L-24UXG2Q-10E – Cisco Catalyst 9300 Switches
Details: C9300L-24UXG2Q-10E is one of the Cisco Catalyst 9300 Series switches. The Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
C9300L-24UXG2Q-10E Overview

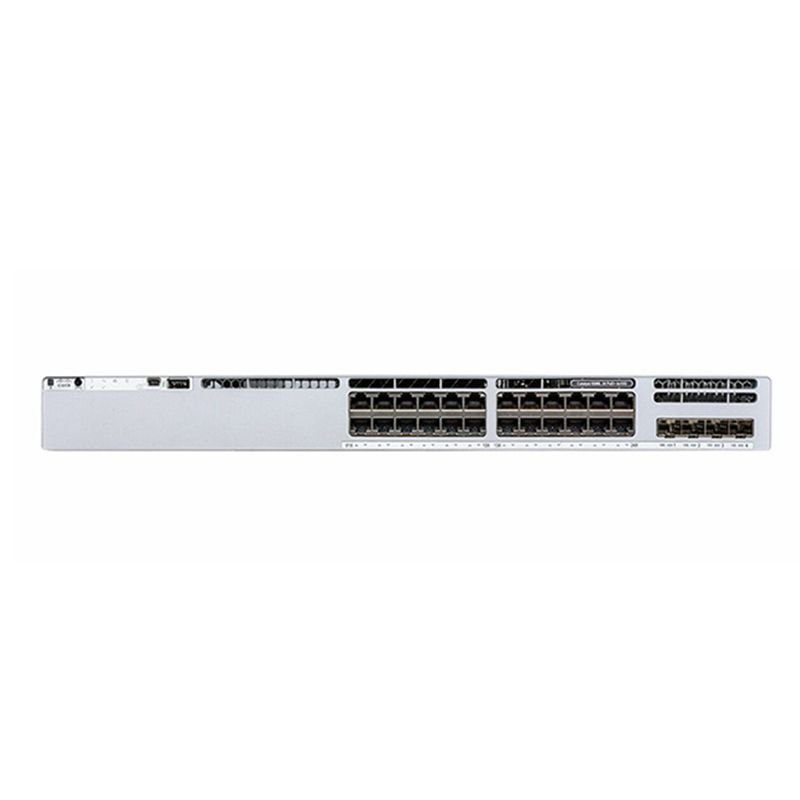

Quick Specs Figure 1 shows the appearance of C9300L-24UXG2Q-10E.
Table 1 shows the Quick Specs.
| Product Description | Cisco Catalyst 9300L – Network Essentials – switch – 24 ports – managed – rack-mountable |
| Device Type | Switch – 24 ports – L3 – managed – stackable |
| Enclosure Type | Rack-mountable |
| Bundled Services | 10 years Network Essentials |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 (UPOE) + 2 x 40Gb Ethernet + 8 x 1/2.5/5/10GBase-T |
| Power Over Ethernet (PoE) | UPOE |
| Performance | Switching capacity: 352 GbpsSwitching capacity with stacking: 672 GbpsForwarding rate: 261.9 MppsForwarding rate with stacking: 500 Mpps |
| Capacity | IPv4 routes: 32000IPv6 routes: 16000Multicast scale: 8000QoS scale entries: 5120ACL scale entries: 5120VLANs supported: 4094Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Features | Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Energy Efficient Ethernet, Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Blue Beacon LED, Zero-touch provisioning (ZTP), secure boot, Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
| Power | AC 100-240 V (50 – 60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.5 in x 1.7 in x 19.2 in |
| Manufacturer Warranty | Limited lifetime warranty |
| PoE Budget | 722 W |
| Routing Protocol | OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG |
| Encryption Algorithm | 128-bit AES, 256-bit AES |
| RAM | 8 GB |
| Flash Memory | 16 GB |
| Sta tus Indicators | Status |
| Inte rfaces | 16 x 1000Base-T RJ-45 60 W2 x 40Gbit LAN uplink1 x network stack device1 x management (LAN) RJ-451 x console1 x USB 2.08 x 1/2.5/5/10GBase-T RJ-45 |
| Power Device | Internal power supply – hot-plug |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Provided | 1100 Watt |
| Voltage Required | AC 100-240 V (50 – 60 Hz) |
| MTBF | 291,670 hours |
| Width | 17.5 in |
| Depth | 1.7 in |
| Height | 19.2 in |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 – 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
