C9300L-48T-4X-10A
Model: C9300L-48T-4X-10A – Cisco Switch Catalyst 9300
Details: C9300L 48p Data, Netw Adv,4x10G Uplink
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
C9300L-48T-4X-10A Overview

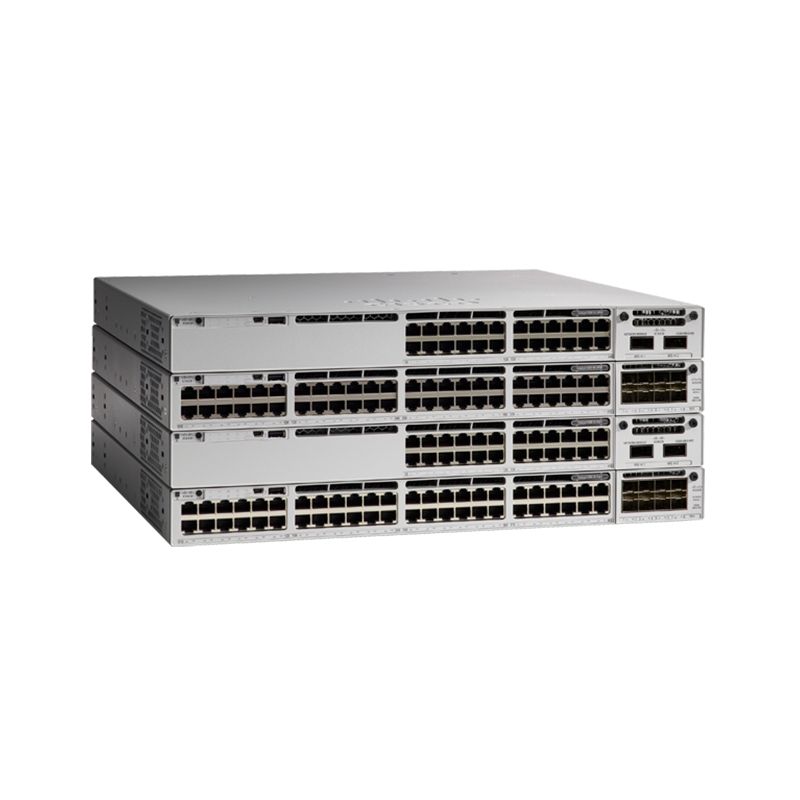

Quick Specs Figure 1 shows the appearance of C9300L-48T-4X-10A.
Table 1 shows the Quick Specs.
| Product Code | C9300L-48T-4X-10A |
| Product Description | C9300L 48p Data, Netw Adv,4x10G Uplink |
| Total 10/100/1000 or Multigigabit copper ports | 48 Data |
| Uplink Configuration | 4x 10G fixed uplinks |
| Default AC power supply | 350W |
| Available PoE power | N/A |
| Dimensions (H x W x D) | 1.73 X 17.5 X 16.1Â Inches |
| Cisco StackWise-480 | Yes |
| Cisco StackPower | Yes |
| Default power supply | PWR-C1-350WAC-P |
| Switching capacity | 176Â Gbps |
| Stacking bandwidth | 496 Gbps |
| Forwarding rate | 130.95 Mpps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
| IPv4 routing entries | 32,000 |
| IPv6 routing entries | 16,000 |
| Multicast routing scale | 8000 |
| QoS scale entries | 5120 |
| ACL scale entries | 5120 |
| Packet buffer per SKU | 16 MB buffer for 24- or 48-port Gigabit Ethernet modelst |
| FNF entries | 64,000 flow on 24- and 48-port Gigabit Ethernet models |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4094 |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Jumbo frames | 9198 bytes |
| Total routed ports Catalystper 9300 Series stack | 416 |
| Wireless bandwidth per switch | Up to 96Â Gbps on 48-port Gigabit Ethernet model |
| Mean time between failures–MTBF (hours) | 380,080 |
| Safety certifications | •UL 60950-1•CAN/CSA-C222.2 No. 60950-1•EN 60950-1•IEC 60950-1•AS/NZS 60950.1•IEEE 802.3 |
| Electromagnetic emissions certifications | •47 CFR Part 15•CISPR22 Class A•EN 300 386 V1.6.1•EN 55022 Class A•EN 55032 Class A•CISPR 32 Class A•EN61000-3-2•EN61000-3-3•ICES-003 Class A•TCVN 7189 Class A•V-3 Class A•CISPR24•EN 300 386•EN55024•TCVN 7317• V-2/2015.04•V-3/2015.04•CNS13438•KN32•KN35•IEC 61000-6-1•EN 61000-6-1 |
| Environmental | Reduction of Hazardous Substances(ROHS) 5 |
