C9300L-48UXG2Q-10A
Model: C9300L-48UXG2Q-10A – Cisco Catalyst 9300 Switches
Details: C9300L 48p PoE+ 12xmGig, Netw Adv, 2x40G Uplink
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
C9300L-48UXG2Q-10A Overview

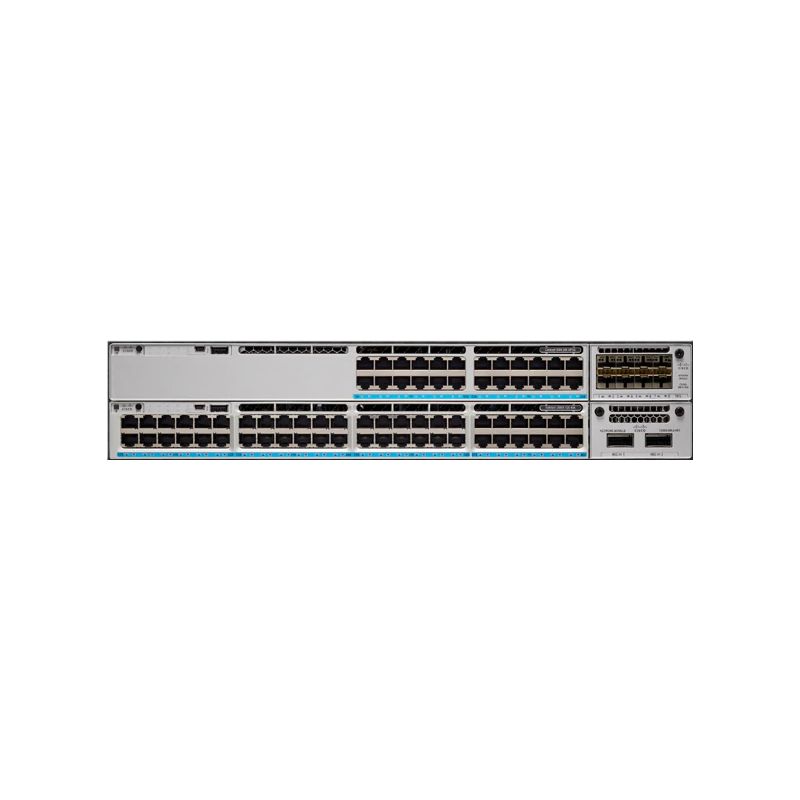

Quick Specs Figure 1 shows the appearance of C9300L-48UXG2Q-10A.
Table 1 shows the Quick Specs.
| Product Description | C9300L 48p PoE+ 12xmGig, 2x40G Uplink, Network Advantage |
| FRU Power Supply | Yes |
| FRU Fans | Yes |
| Modular Uplinks | No |
| Stacking Bandwidth Support | 320 Gbps |
| Cisco StackPower | No |
| Catalyst 9800 Embedded WLC | Yes (50 APs) |
| SD-Access Support | Yes (256 Virtual Networks) |
| Total 10/100/1000,Multigigabit copper or SFP Fiber | 48 UPoE 12xmGig |
| Uplink Configuration | 2x 40G fixed uplinks |
| Default AC power supply | 1100W AC |
| Available PoE power | 675W |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
| IPv6 routing entries | 16,000 |
| Multicast routing scale | 8,000 |
| QoS scale entries | 5,120 |
| ACL scale entries | 5,120 |
| Packet buffer per SKU | 16 MB buffer for 24 and 48 port Gigabit Ethernet models |
| FNF entries | 64,000 flow on 24- and 48-port Gigabit Ethernet models |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4094 |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Jumbo frames | 9198 bytes |
| Total routed ports per Catalyst 9300 Series stack | 416 |
| Switching capacity | 472 Gbps |
| Switching capacity with stacking | 792 Gbps |
| Forwarding rate | 351.19 Mpps |
| Forwarding rate with stacking | 589.28 Mpps |
| Dimensions (H x W x D) Cms | Chassis only |
| W/ Default Power Supply | 4.4 x 44.5 x 48.8 |
| W/ 1100W Power Supply | 4.4 x 44.5 x 48.8 |
| Mean Time Between Failures–MTBF (hours) | 275,010 |
| Acoustic noiseMeasured per ISO 7779 and declared per ISO 9296Bystander positions operating to an ambient temperature of 25°C | With AC power supply (with 24 PoE+ ports loaded for C9300 SKUs)•LpA: 45dB typical, 48 dB max•LwA: 5.6B typical, 5.9B maxWith AC power supply (with half the number of PoE+ ports loaded for C9300L SKUs)•LpA: 44dB typical, 47 dB max•LwA: 5.5B typical, 5.8B maxTypical: Noise emission for a typical configurationMaximum: Statistical maximum to account for variation in p |
| Connectors and cabling | •1000BASE-T ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling•Multigigabit-T ports: RJ-45 connectors, 4-pair Cat 5E, Cat 6, Cat 6A UTP cabling•1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling•SFP transceivers: LC fiber connectors (single-mode or multimode fiber)•SFP+ transceivers: LC fiber connectors (single-mode or multimode fiber)•QSFP+ transceivers: MPO and LC fiber connectors (single-mode or multimode fiber)•QSFP+ connector•SFP+ connector•Cisco StackWise stacking ports: copper-based Cisco StackWise cabling•Cisco StackPower: Cisco proprietary power stacking cables•Ethernet management port: RJ-45 connectors, 4-pair Cat 5 UTP cabling•Management console port: RJ-45-to-DB9 cable for PC connections |
| Power connectors | •Customers can provide power to a switch by using the internal power at the back of the switch•Internal power supply connector: The internal power supply is an auto-ranging unit. It supports inputvoltages between 100 (115 for 1100WAC) and 240 VAC. Use the supplied AC power cord toconnect the AC power connector to an AC power outlet |
| Safety certifications | •UL 60950-1•CAN/CSA-C222.2 No. 60950-1•EN 60950-1•IEC 60950-1•AS/NZS 60950.1•IEEE 802.3 |
| Electromagnetic emissions certifications | •47 CFR Part 15•CISPR22 Class A•EN 300 386 V1.6.1•EN 55022 Class A•EN 55032 Class A•CISPR 32 Class A•EN61000-3-2•EN61000-3-3•ICES-003 Class A•TCVN 7189 Class A•V-3 Class A•CISPR24•EN 300 386•EN55024•TCVN 7317•V-2/2015.04•V-3/2015.04•CNS13438•KN32•KN35•IEC 61000-6-1•EN 61000-6-1Additional Certifications for C9300L SKUs:•QCVN 118:2018/BTTTT•CISPR24/25•CISPR 32 Class A•VCCI-CISPR 32 Class A•EN55035 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |
