C9400-LC-48T
Model: C9400-LC-48T – Catalyst 9400 Series Modules & Cards
Details: Cisco Catalyst 9400 Series 48-Port 10/100/1000 (RJ-45)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
C9400-LC-48T Overview

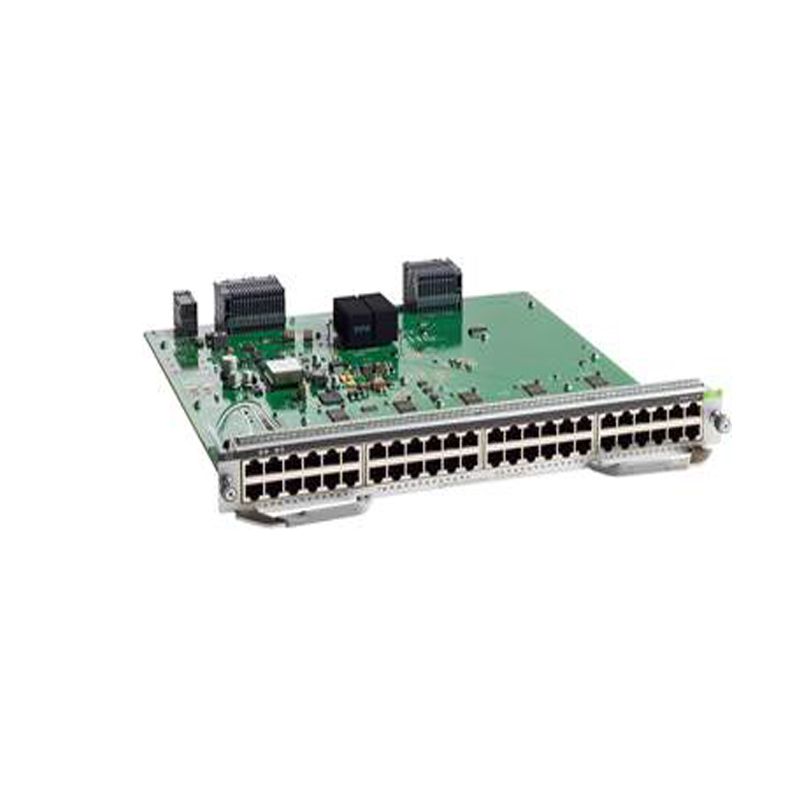

Quick Specs Figure 1 shows the appearance of C9400-LC-48T.
Table 1 shows the Quick Specs.
| Standards | ● Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 803.3at, IEEE 802.3af, IEEE 802.3az |
| EtherChannel Technology | ● Gigabit EtherChannel: All 1000 Mbps ports● 10 Gigabit EtherChannel: All 10Gbps ports● IEEE 802.3ad (Link Aggregation Control Protocol): All 1000 Mbps ports● Port Aggregation Protocol (PagP): Yes● Number of ports per tuple: 8● EtherChannel and IEEE 802.3ad technology across line cards: Yes |
| Physical Dimensions | ● Occupies one slot in the Cisco Catalyst 9400 Series platform● Dimensions (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) |
| Environmental Conditions | ● Operating temperature:● Normal Operating Temperature and Altitudes:◦ 27° to 109°F (-5 to +45°C), up to 6,000 feet (1800 m)◦ 27° to 104°F (-5 to +40°C), up to 10,000 feet (3000 m)◦*Minimum ambient temperature for cold startup is 0°C● Short-Term Exceptional Conditions:◦ 27° to 119°F (-5 to +55°C), up to 6,000 feet (1800 m)◦ 27° to 114°F (-5 to +50°C), up to 10,000 feet (3000 m)◦ Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences● Storage temperature: -40° to 158° F (-40° to 70°C)● Relative humidity: 10 to 95%, noncondensing● Operating altitude: -60 to 3000m |
| Safety Conditions | Fiber optic lasers: Class 1 laser products |
| Safety Certifications | ● UL 60950-1● CAN/CSA-C222.2 No. 60950-1● EN 60950-1● IEC 60950-1● AS/NZS 60950.1● IEEE 802.3 |
| Electromagnetic Emissions Certifications | ● 47 CFR Part 15● CISPR22 Class A● EN 300 386 V1.6.1● EN 55022 Class A● EN 55032 Class A● CISPR 32 Class A● EN61000-3-2● EN61000-3-3● ICES-003 Class A● TCVN 7189 Class A● V-3 Class A● CISPR24● EN 300 386● EN55024● TCVN 7317 |
| ROHS Compliance | ROHS5 |
