Name: C9500-16X-EDU
SKU: C9500-16X-EDU
Availability: InStock

C9500-16X-EDU

Model: C9500-16X-EDU – Cisco Switch Catalyst 9500
Details: Catalyst 9500 16-port 10G, K12
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

C9500-16X-EDU Overview

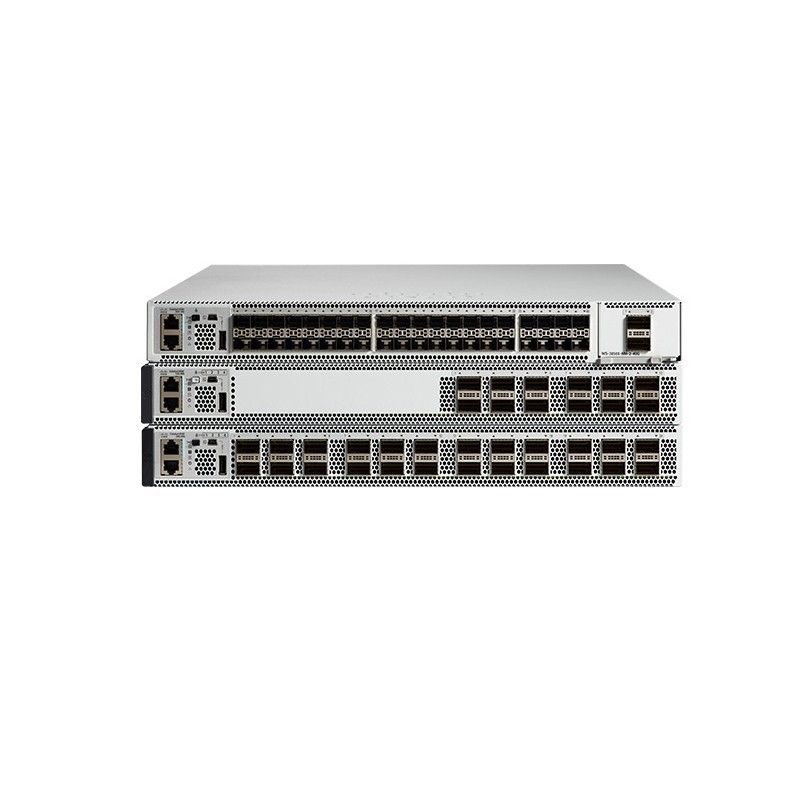

Quick Specs Figure 1 shows the appearance of C9500-16X-EDU.

Table 1 shows the Quick Specs.

Product Code	C9500-16X-EDU
Product Description	Catalyst 9500 16-port 10G, K12
Dimensions (H x W x D)	1.73 x 17.5 x 21.52 in
Rack units (RU)	1 RU
Minimum software requirement	Open Cisco IOS-XE Software Release 16.8.1
ASIC	UADP 2.0
Switching capacity	Up to 480 Gbps
Forwarding rate	Up to 360 Mpps
Total number of MAC addresses	Up to 64,000
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes)	Up to 64,000 indirectUp to 80,000 host
Total number of IPv6 routes	Up to 32,000 indirectUp to 40,000 host
Total number of IPv4 Multicast routes	Up to 32,000
Total number of IPv6 Multicast routes	Up to 16,000
QoS ACL scale	Up to 18000
Security ACL scale	Up to 18000
FNF entries	Up to 512,000
DRAM	16 GB
Flash	16 GB
VLAN IDs	4094
Total Switched Virtual Interfaces (SVIs)	4000
Jumbo frame	9198 bytes
Safety certifications	C9500-12Q, C9500-24Q, C9500-40X,C9500-16X•UL 60950-1•CAN/CSA-C22.2 No. 60950-1•EN 60950-1•IEC 60950-1•AS/NZS 60950-1•GB4943C9500-32C, C9500-32QC, C9500-24Y4C, C9500-48Y4C•IEC 60950-1 plus Am1, Am2 Am9, Am10, Am11, Am12 and all deviations and differences•AS/NZS 60950.1.2011•CAN/CSA-C22.2 No. 60950-1-07•GB 4943-95•EN 60950-1; 2006 plus Am1, Am 2, Am9, Am10, Am11, Am12 and all deviations and differences•NOM-019-SCFI-1998•UL 60950-1, Second Edition
EMI and EMC compliance	•47 CFR Part 15 Class A•CNS13438: 2006 Class A•EN 300 386 V1.6.1•EN61000-3-2: 2014•EN61000-3-3: 2013•ICES-003 Issue 6: 2016 Class A•KN 32: 2015 Class A•TCVN 7189: 2009 Class A•EN 55032:2012/ AC:2013 Class A•EN 55032:2015 Class A•CISPR 32 Edition 2 Class A•V-2/2015.04 Class A•V-3/2015.04 Class A•CISPR24: 2010 + A1: 2015•EN 300 386 V1.6.1•EN55024: 2010 + A1: 2015•KN35: 2015•TCVN 7317: 2003
Input voltage	90 to 264 VAC
Operating temperature	32°to 104°F (0°to 40°C)
Storage temperature	-4°to 149°F (-20°to 65°C)
Relative humidity operating and nonoperating noncondensing	Ambient (noncondensing) operating: 5% to 90%Ambient (noncondensing) nonoperating and storage: 5% to 95%
NEBS criteria levels	NEBS:•Normal operating temperature range: 5C to 40C (up to 1829 meters (6000 ft)•Short term operating temperature range: -5C to 55C•Normal Relative Humidity range: 5% to 85%•Short term Relative Humidity range: 5% to 93%•Operating Altitude: up to 1829 m (6000 ft) at 55C•ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations.•SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue
Altitude	Operation up to 13,000 feet at 40°C
MTBF (hours)	315,790

Get more information
Do you have any question about the C9500-16X-EDU?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices

100% Quality Assurance: All items are ORIGINAL and GENUINE only. Item conditions are “New Sealed” or “Used / Refurbished”. Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support: Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee: You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured
